RK110R-JR3 (1979)
Toyota Stout
Production
Mar 1979
-
Sep 1986
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8609)

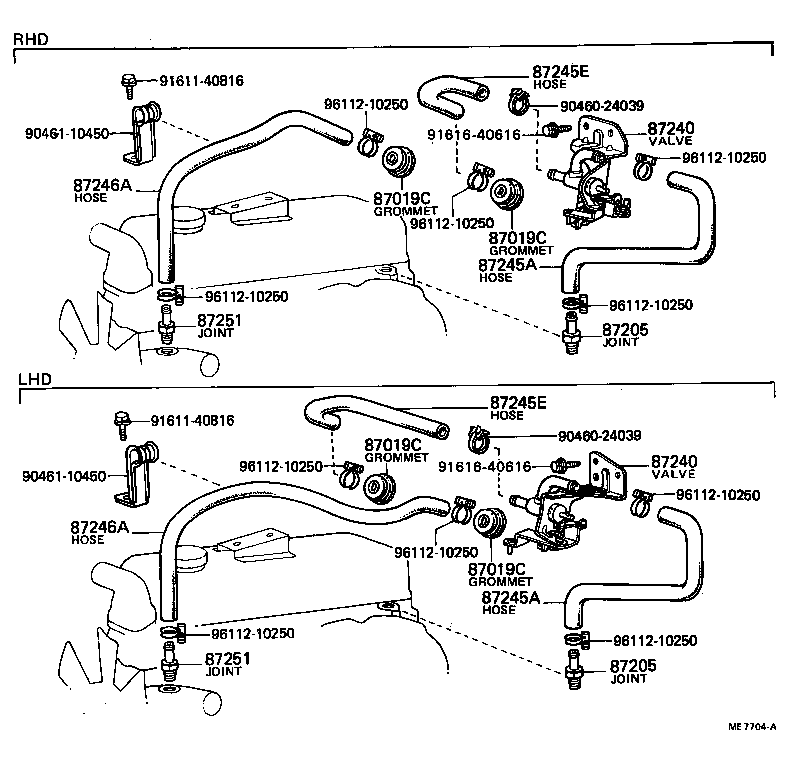

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-36005 |
RK110 |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-36005 |
RK110 |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-36005 |
RK110 |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-36005 |
RK110 |
2 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-20070 |
RK110 |
1 | ||
| 87251-30200 |
RK110 |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-20070 |
RK110 |
1 | ||
| 87251-30200 |
RK110 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-89109 |
RK110..RHD |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-89109 |
RK110..RHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95110 |
RK110..RHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95110 |
RK110..RHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-89121 |
RK110..RHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-89121 |
RK110..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95116 |
RK110 |
1 | ||
| 87245-95113 |
RK110 |
1 | ||
| 87245-95119 |
RK110 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95116 |
RK110 |
1 | ||
| 87245-95113 |
RK110 |
1 | ||
| 87245-95119 |
RK110 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-20070 |
RK110 |
1 | ||
| 87251-30200 |
RK110 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-20070 |
RK110 |
1 | ||
| 87251-30200 |
RK110 |
1 | ||
| Common parts | ||||
| 90460-24039 | ||||
| 90461-10450 | ||||
| 91611-40816 | ||||
| 91616-40616 | ||||
| 96112-10250 | ||||
