RK110R-JR3 (1979)
Toyota Stout

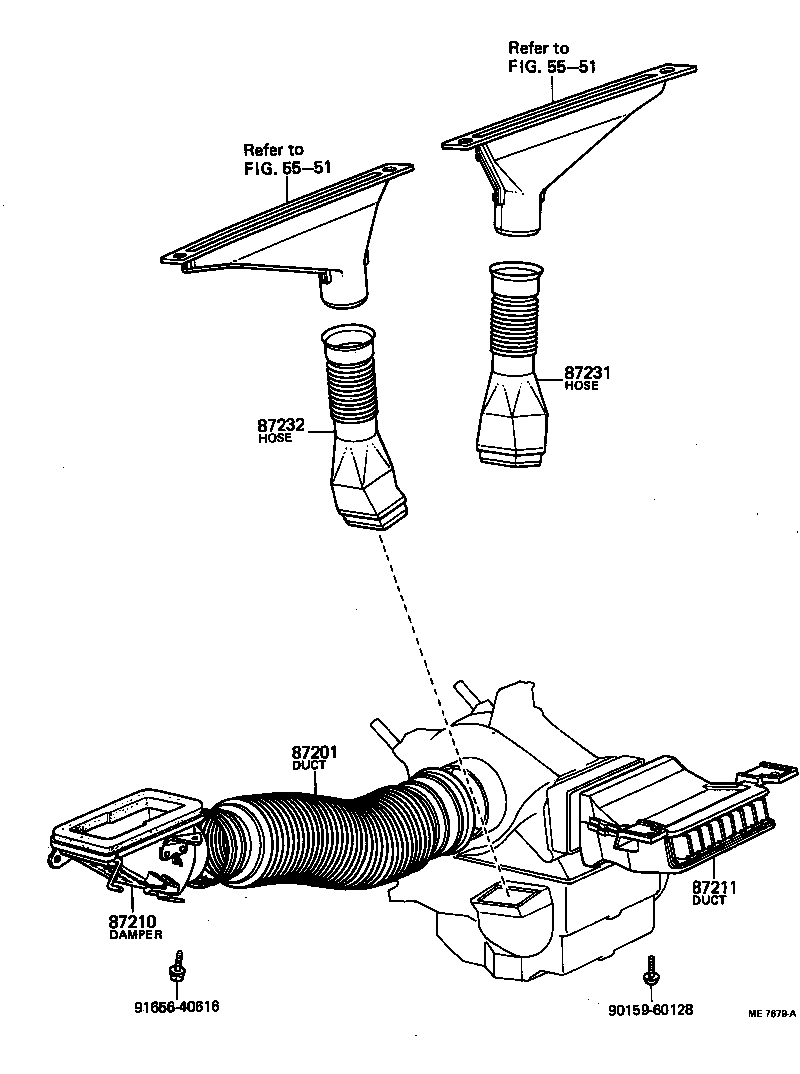

ILLUST NO. 2 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-89101 |
RK110 |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-89102 |
RK110..RHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 55670-8910105 |
RK110 BEIGE,BEIGE |
1 | ||
| 88575-89101 |
RK110..GEN W/COOLER |
1 | ||
| 55670-8910104 |
RK110 BLUE,BLUE |
1 | ||
| 55670-8910101 |
RK110 BLACK,BLACK |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95110 |
RK110..RHD |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87232-89106 |
RK110..RHD |
1 | ||
| Common parts | ||||
| 90159-60128 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 5551 | ||||

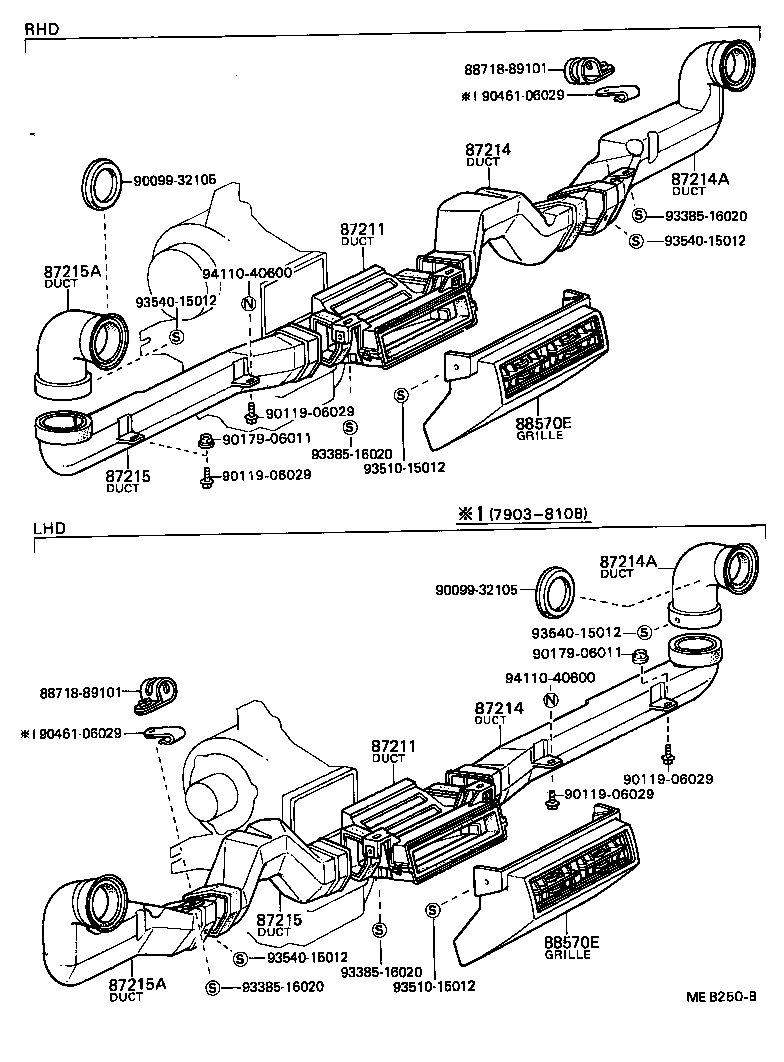

ILLUST NO. 2 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 55670-8910105 |
RK110 BEIGE,BEIGE |
1 | ||
| 88575-89101 |
RK110..GEN W/COOLER |
1 | ||
| 55670-8910104 |
RK110 BLUE,BLUE |
1 | ||
| 55670-8910101 |
RK110 BLACK,BLACK |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 55670-8910105 |
RK110 BEIGE,BEIGE |
1 | ||
| 88575-89101 |
RK110..GEN W/COOLER |
1 | ||
| 55670-8910104 |
RK110 BLUE,BLUE |
1 | ||
| 55670-8910101 |
RK110 BLACK,BLACK |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 88576-89101 |
RK110..RHD..GEN |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 88576-89101 |
RK110..RHD..GEN |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 88576-89102 |
RK110..RHD..GEN |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 88576-89102 |
RK110..RHD..GEN |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 88576-89103 |
RK110..RHD..GEN |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 88576-89103 |
RK110..RHD..GEN |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 88576-89104 |
RK110..RHD..GEN |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 88576-89104 |
RK110..RHD..GEN |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-89103 |
RK110..GEN |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-89103 |
RK110..GEN |
1 | ||
| Common parts | ||||
| 88718-89101 | ||||
| 90099-32105 | ||||
| 90119-06029 | ||||
| 90179-06011 | ||||
| 90461-06029 | ||||
| 93385-16020 | ||||
| 93510-15012 | ||||
| 93540-15012 | ||||
| 94110-40600 | ||||

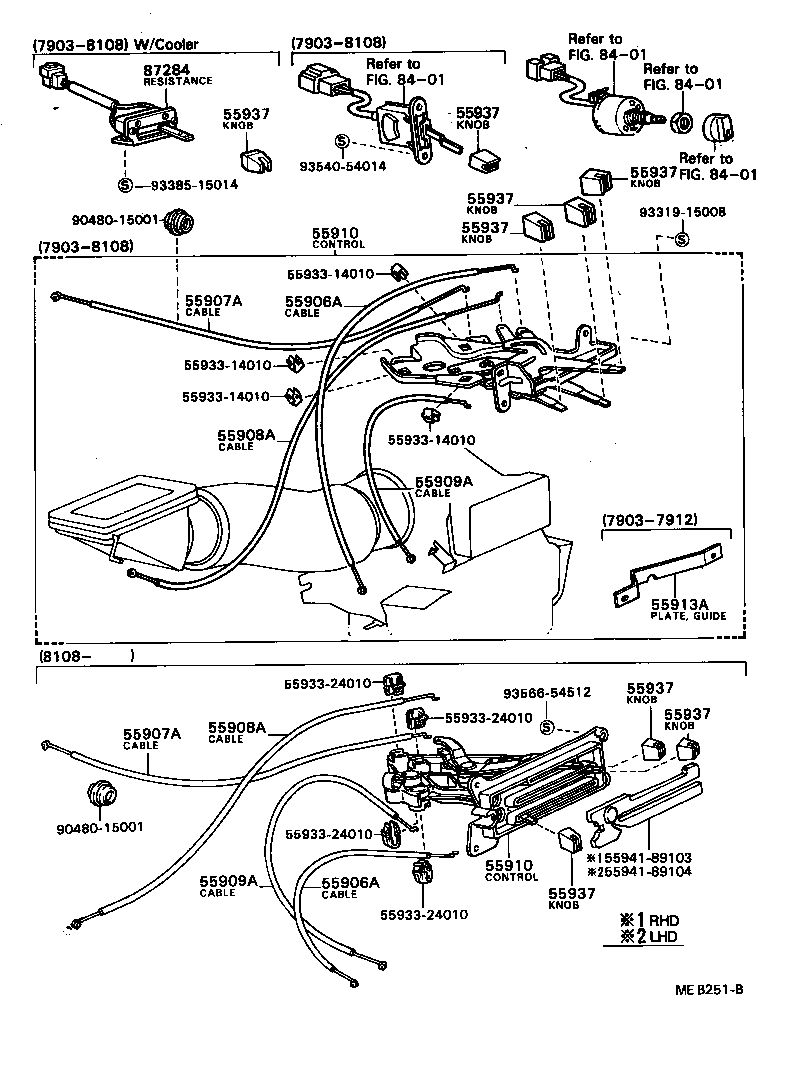

ILLUST NO. 1 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-89104 |
RK110 L=500 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-89104 |
RK110 L=500 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-89107 |
RK110..RHD L=440 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-89107 |
RK110..RHD L=440 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-89102 |
RK110 L=720 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-89102 |
RK110 L=720 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-89103 |
RK110 L=365 |
1 | ||
| 55909-89104 |
RK110 L=400 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-89103 |
RK110 L=365 |
1 | ||
| 55909-89104 |
RK110 L=400 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-89109 |
RK110..RHD |
1 | ||
| 55910-89111 |
RK110..RHD W/BOOST VENTILATOR |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-89109 |
RK110..RHD |
1 | ||
| 55910-89111 |
RK110..RHD W/BOOST VENTILATOR |
1 | ||
| 55913A - PLATE, HEATER CONTROL LEVER GUIDE | ||||
| 55913-89104 |
RK110..RHD |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-20140 |
RK110 |
5 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-20140 |
RK110 |
5 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-20140 |
RK110 |
5 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-20140 |
RK110 |
5 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-20140 |
RK110 |
5 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-20140 |
RK110 |
5 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-20140 |
RK110 |
5 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-20140 |
RK110 |
5 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88622-89101 |
RK110..GEN |
1 | ||
| Common parts | ||||
| 55933-14010 | ||||
| 55933-24010 | ||||
| 55941-89103 | ||||
| 55941-89104 | ||||
| 90480-15001 | ||||
| 93319-15008 | ||||
| 93385-15014 | ||||
| 93540-54014 | ||||
| 93566-54512 | ||||
| Linked diagrams | ||||
| 8401 | ||||
