RK110R-JR3 (1979)
Toyota Stout
Production
Mar 1979
-
Sep 1986
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )GEN

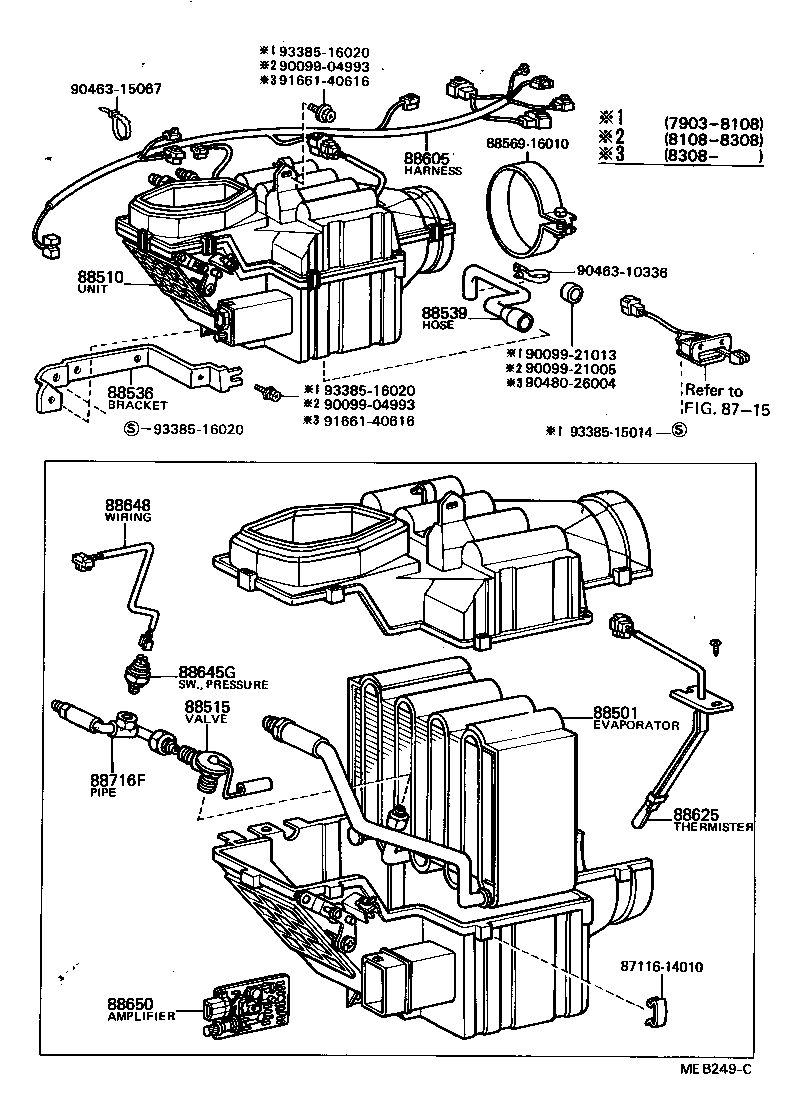

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-89103 |
RK110..RHD..GEN |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-92300 |
RK110..RHD..GEN |
1 | ||
| 88510-89111 |
RK110..RHD..GEN |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20040 |
RK110..GEN |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-89120 |
RK110..RHD..GEN |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-89101 |
RK110..RHD..GEN |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-89118 |
RK110..GEN |
1 | ||
| 88605-89110 |
RK110..RHD..GEN |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88626-89101 |
RK110..GEN |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22010 |
RK110..GEN |
1 | ||
| 88645-30250 |
RK110..GEN |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-12110 |
RK110..GEN |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20100 |
RK110..GEN |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-89124 |
RK110..RHD..GEN |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88569-16010 | ||||
| 90099-04993 | ||||
| 90099-21005 | ||||
| 90099-21013 | ||||
| 90463-10336 | ||||
| 90463-15067 | ||||
| 90480-26004 | ||||
| 91661-40616 | ||||
| 93385-15014 | ||||
| 93385-16020 | ||||
| Linked diagrams | ||||
| 8715 | ||||
