RK110R-JR3 (1979)

Toyota Stout

Production Mar 1979 - Sep 1986
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

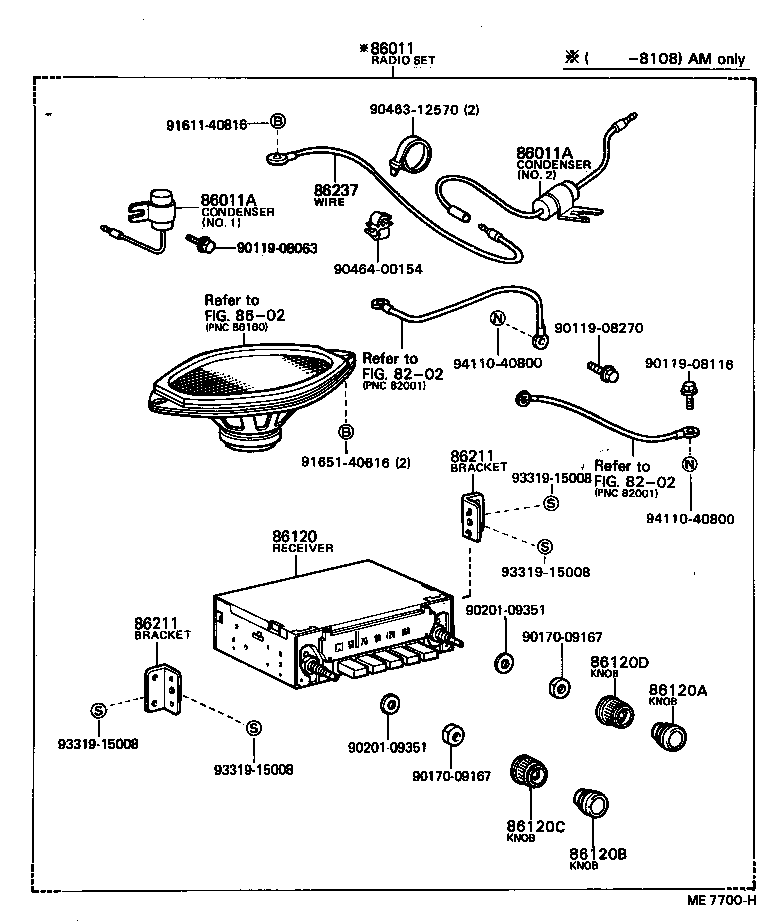

Click highlighted areas on diagram

diagram 8202 8202 86011 86011A 86011A 8602 86120 86120A 86120B 86120C 86120D 86211 86211 86237 9011908063 9011908116 9011908270 9017009167 9017009167 9020109351 9020109351 9046312570 9046400154 9161140816 9165140616 9331915008 9331915008 9331915008 9331915008 9411040800 9411040800
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-39055

RK110

AM/FM,5-BUTTON

 1
86011-39035

RK110

AM,5-BUTTON

 1
86011A - CONDENSER, RADIO SETTING
90980-04029

RK110

NO.2

 1
90980-04011

RK110

NO.1

 2
86011A - CONDENSER, RADIO SETTING
90980-04029

RK110

NO.2

 1
90980-04011

RK110

NO.1

 2
86120 - RECEIVER ASSY, RADIO
86120-89106

RK110

AM/FM,5-BUTTON

 1
86120-95A00

RK110

AM,5-BUTTON

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86125-95A00

RK110

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86125-95A00

RK110

 1
86120C - KNOB, RADIO RECEIVER TUNING, NO.2
86124-95A00

RK110

 1
86120D - KNOB, RADIO RECEIVER TONE
86124-95A00

RK110

 1
86211 - BRACKET, RADIO, NO.1
86211-89104

RK110

 2
86211 - BRACKET, RADIO, NO.1
86211-89104

RK110

 2
86237 - WIRE, CONDENSER
86237-95111

RK110

 1
86237-95110

RK110

 1
Common parts
90119-08063
90119-08116
90119-08270
90170-09167
90201-09351
90463-12570
90464-00154
91611-40816
91651-40616
93319-15008
94110-40800
Linked diagrams
8202
8602

(7903- )

Click highlighted areas on diagram

diagram 8602 8602 8602 8602 8602 8602 8602 8602 8602 8602 8602 86022 86260 86265 86265 86265 86266 86266 86266 86267 9017905009 9017905009 9033335002 9331915008 9331915008 9331915008 9331915008 9331915008 9331915008
Part # Description Qty Price
86022 - PARTS SET, TAPE PLAYER SETTING
86022-39055

RK110..GEN

W/AUTO REVERSE PLAYER

 1
86260 - TAPE PLAYER ASSY
86260-95A01

RK110..GEN

AUTO REVERSE

 1
86260-14090

RK110..GEN

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-89103

RK110..GEN

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-89103

RK110..GEN

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-89103

RK110..GEN

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-89104

RK110..GEN

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-89104

RK110..GEN

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-89104

RK110..GEN

 1
86267 - BRACKET, TAPE PLAYER, NO.3
86265-89106

RK110..GEN

 1
Common parts
90179-05009
90333-35002
93319-15008
Linked diagrams
8602
