RK110R-JR3 (1979)
Toyota Stout
Production
Mar 1979
-
Sep 1986
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

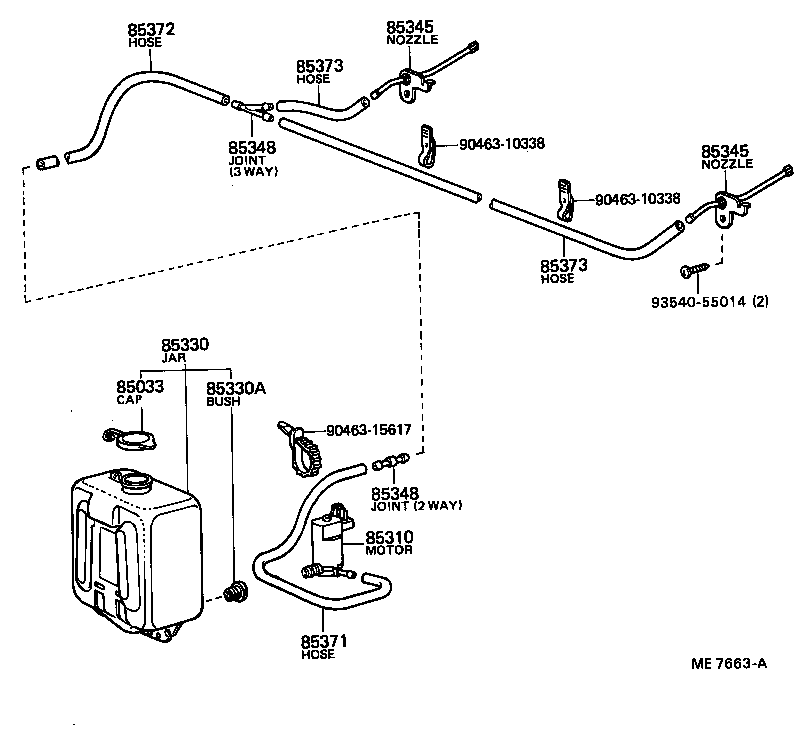

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-30050 |
RK110,YK110 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20100 |
RK110 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-89104 |
RK110 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
RK110,YK110 |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-89104 |
RK110 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-89104 |
RK110 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
RK110 3 WAY |
1 | ||
| 85355-87201 |
RK110 2 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
RK110 3 WAY |
1 | ||
| 85355-87201 |
RK110 2 WAY |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06236 |
RK110 *H,L=450 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06056 |
RK110 *H,L=700 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33243 |
RK110 *H,L=550 |
1 | ||
| 90099-33321 |
RK110 *H,L=100 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33243 |
RK110 *H,L=550 |
1 | ||
| 90099-33321 |
RK110 *H,L=100 |
1 | ||
| Common parts | ||||
| 90463-10338 | ||||
| 90463-15617 | ||||
| 93540-55014 | ||||
