RK110R-JR3 (1979)

Toyota Stout

Production Mar 1979 - Sep 1986
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

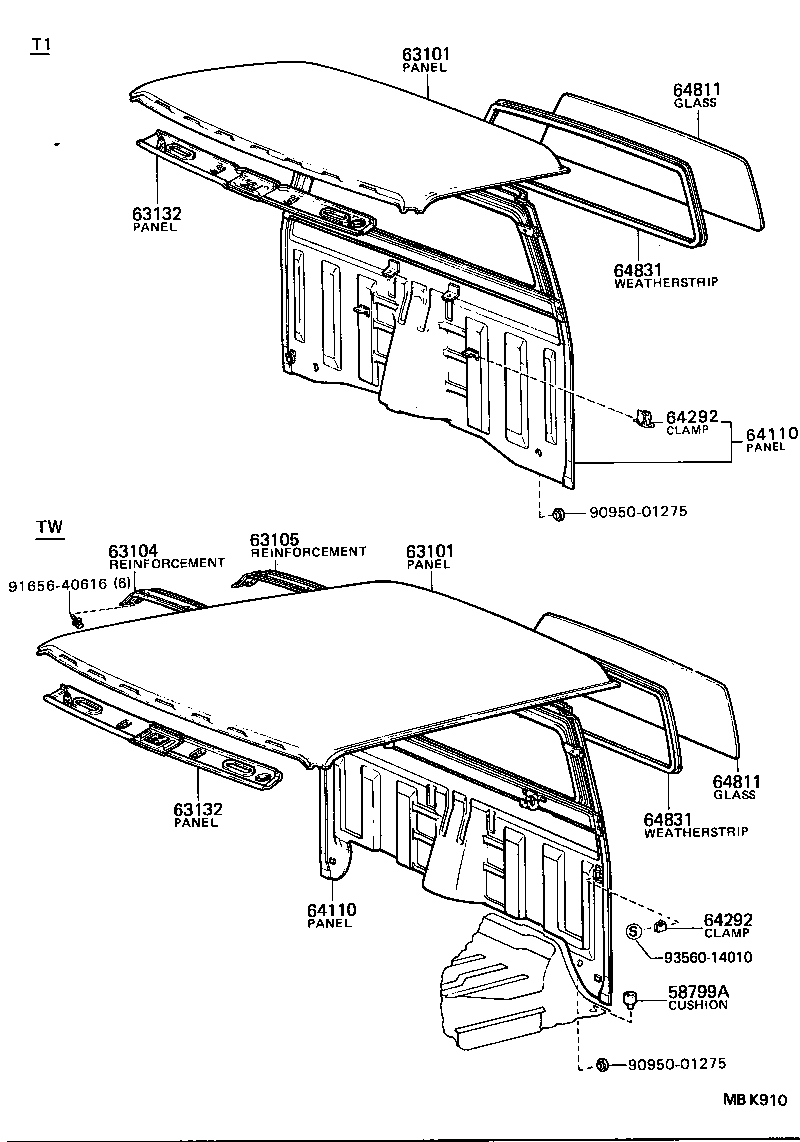

Click highlighted areas on diagram

diagram 58799A 63101 63101 63104 63105 63132 63132 64110 64110 64292 64292 64811 64811 64831 64831 9095001275 9095001275 9165640616 9356014010
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-89105

RK110..T1

 1
63101 - PANEL SUB-ASSY, ROOF
63111-89105

RK110..T1

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-89101

RK110

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-89101

RK110

 1
64110 - PANEL ASSY, FRONT BODY BACK
64101-95111

RK110..T1..(GEN,SA)

 1
64110 - PANEL ASSY, FRONT BODY BACK
64101-95111

RK110..T1..(GEN,SA)

 1
64292 - CLAMP, JACK HANDLE
58706-89101

RK110..T1

 2
64292 - CLAMP, JACK HANDLE
58706-89101

RK110..T1

 2
64811 - GLASS, BACK WINDOW
64811-89108

RK110..GEN

*TT,T=3.5,*TT,T=3.5

 1
64811-89109

RK110..GEN,SA

*TEM,T=3.5,*TEM,T=3.5

 1
64811 - GLASS, BACK WINDOW
64811-89108

RK110..GEN

*TT,T=3.5,*TT,T=3.5

 1
64811-89109

RK110..GEN,SA

*TEM,T=3.5,*TEM,T=3.5

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-89101

RK110

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-89101

RK110

 1
Common parts
90950-01275
91656-40616
93560-14010
