RK110R-JR3 (1979)
Toyota Stout
Production
Mar 1979
-
Sep 1986
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )T1

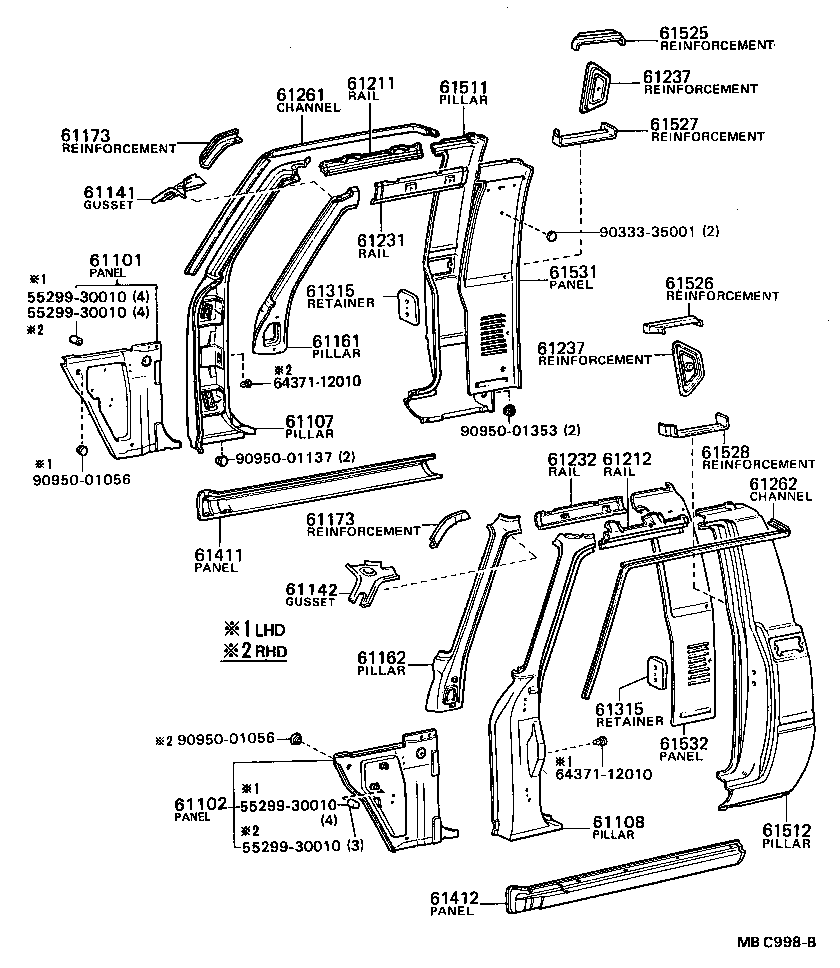

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-95110 |
RK110..RHD |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-95110 |
RK110..RHD |
1 | ||
| 61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH | ||||
| 61027-95112 |
RK110..T1 |
1 | ||
| 61027-95110 |
RK110 |
1 | ||
| 61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH | ||||
| 61028-95112 |
RK110..T1 |
1 | ||
| 61028-95110 |
RK110 |
1 | ||
| 61141 - GUSSET, FRONT PILLAR UPPER CORNER, RH | ||||
| 61143-95110 |
RK110 |
1 | ||
| 61142 - GUSSET, FRONT PILLAR UPPER CORNER, LH | ||||
| 61144-95110 |
RK110 |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-89105 |
RK110 |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-89105 |
RK110 |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61174-89101 |
RK110 LH |
1 | ||
| 61173-89101 |
RK110 RH |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61174-89101 |
RK110 LH |
1 | ||
| 61173-89101 |
RK110 RH |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-89103 |
RK110..T1 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-89103 |
RK110..T1 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95111 |
RK110..T1 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95111 |
RK110..T1 |
1 | ||
| 61237 - REINFORCEMENT, SAFETY BAND ANCHORAGE | ||||
| 61766-89103 |
RK110..T1..(GEN,SA) |
2 | ||
| 61766-89102 |
RK110..T1..(GEN,SA) |
2 | ||
| 61237 - REINFORCEMENT, SAFETY BAND ANCHORAGE | ||||
| 61766-89103 |
RK110..T1..(GEN,SA) |
2 | ||
| 61766-89102 |
RK110..T1..(GEN,SA) |
2 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-89103 |
RK110..T1 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-89103 |
RK110..T1 |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-89101 |
RK110 |
2 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-89101 |
RK110 |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-89104 |
RK110 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-89104 |
RK110 |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-89107 |
RK110..T1..(GEN,SA) |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-89111 |
RK110..T1..(GEN,SA) |
1 | ||
| 61512-89112 |
RK110..T1 |
1 | ||
| 61531 - PANEL, BACK CORNER, INNER RH | ||||
| 61531-89108 |
RK110..T1 |
1 | ||
| 61532 - PANEL, BACK CORNER, INNER LH | ||||
| 61532-89108 |
RK110..T1 |
1 | ||
| Common parts | ||||
| 55299-30010 | ||||
| 64371-12010 | ||||
| 90333-35001 | ||||
| 90950-01056 | ||||
| 90950-01137 | ||||
| 90950-01353 | ||||
