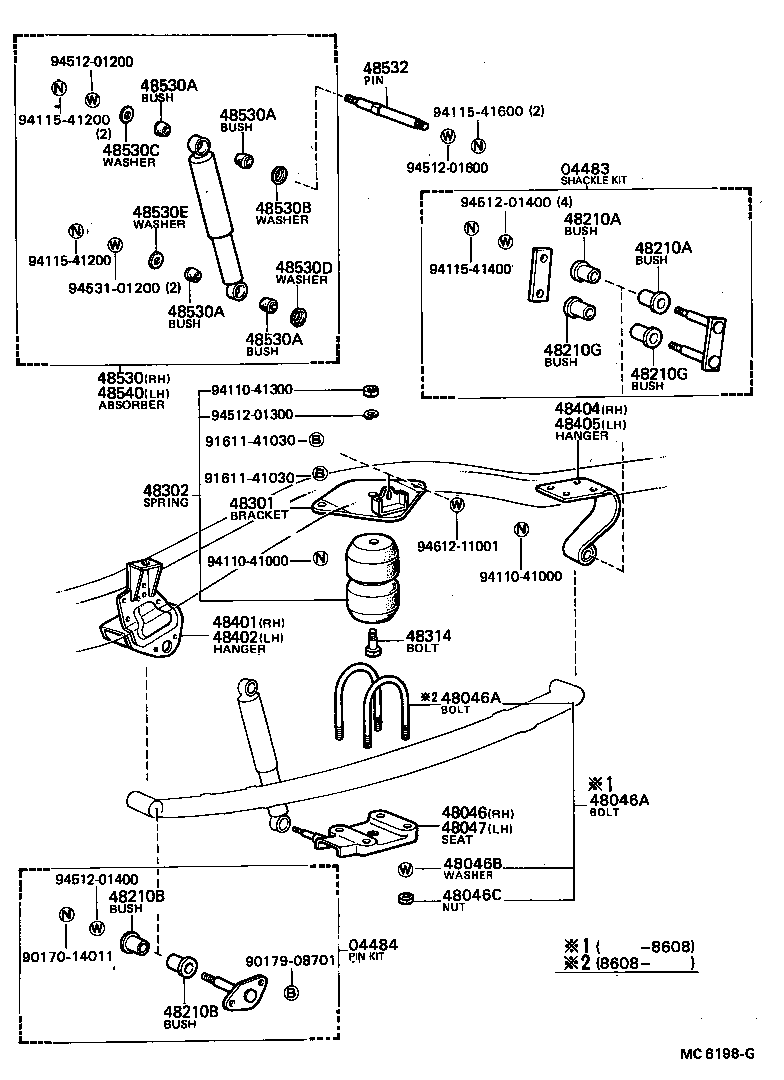

Toyota Stout RK110 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
04483 - SHACKLE KIT, REAR SPRING
04483-35020	RK110	03/1979 - 12/1980	2
04484 - PIN KIT, REAR SPRING
04484-35020	RK110	03/1979 - 12/1980	2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35060	RK110..TW;RK110..15T	03/1979 - 04/1988	1
48046A - BOLT, U(FOR REAR SPRING)
90117-14012	RK110..TW;RK110..15T	03/1979 - 09/1986	4
48046A - BOLT, U(FOR REAR SPRING)
90117-14012	RK110..TW;RK110..15T	03/1979 - 09/1986	4
48046B - WASHER(FOR REAR SPRING U BOLT)
94512-01400	RK110..TW;RK110..15T	03/1979 - 09/1986	8
48046C - NUT(FOR REAR SPRING U BOLT)
94115-51400	RK110..TW;RK110..15T	03/1979 - 09/1986	8
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-35060	RK110..TW;RK110..15T	03/1979 - 04/1988	1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18025	RK110	03/1979 - 04/1988	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18025	RK110	03/1979 - 04/1988	4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18025	RK110	03/1979 - 04/1988	4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18025	RK110	03/1979 - 04/1988	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18025	RK110	03/1979 - 04/1988	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18025	RK110	03/1979 - 04/1988	4
48301 - BRACKET SUB-ASSY, HOLLOW SPRING
48301-35010	RK110	03/1979 - 09/1986	2
48302 - SPRING SUB-ASSY, HOLLOW
48302-39035	RK110..TW;RK110..15T	03/1979 - 04/1988	2
48314 - BOLT, HOLLOW SPRING SET
48314-35010	RK110	03/1979 - 04/1988	2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48404-35010	RK110..T1	03/1979 - 04/1988	1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48407-35010	RK110..T1	03/1979 - 04/1988	1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48405-35010	RK110	03/1979 - 04/1988	1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48406-35010	RK110	03/1979 - 04/1988	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39365	RK110	03/1979 - 04/1988	1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007	RK110	03/1979 - 04/1988	8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007	RK110	03/1979 - 04/1988	8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007	RK110	03/1979 - 04/1988	8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007	RK110	03/1979 - 04/1988	8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004	RK110	03/1979 - 04/1988	2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03003	RK110	03/1979 - 04/1988	2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03004	RK110	03/1979 - 04/1988	2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03003	RK110	03/1979 - 04/1988	2
48532 - PIN, REAR SHOCK ABSORBER PIVOT
48532-35030	RK110	03/1979 - 04/1988	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39365	RK110	03/1979 - 04/1988	1
Common parts
90170-14011
90179-08701
91611-41030
94110-41000
94110-41300
94115-41200
94115-41400
94115-41600
94512-01200
94512-01300
94512-01400
94512-01600
94531-01200
94612-11001

Part #	Description	Period	Qty

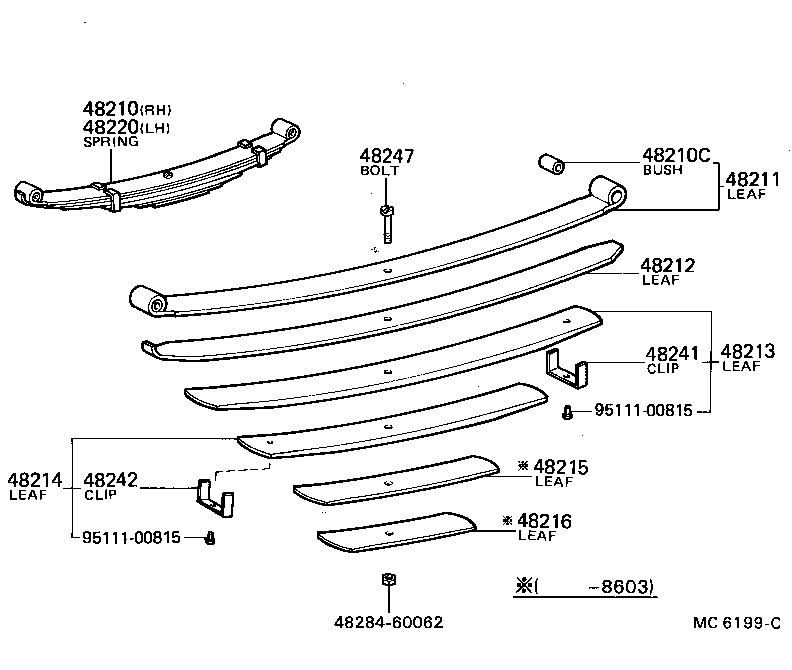

48210 - SPRING ASSY, REAR RH
48210-35190	RK110	03/1979 - 04/1988	1
48210C - BUSH(FOR REAR SPRING LEAF)
90387-30011	RK110	03/1979 - 04/1988	4
48211 - LEAF, REAR SPRING, NO.1
48201-35190	RK110	03/1979 - 04/1988	2
48212 - LEAF, REAR SPRING, NO.2
48212-35190	RK110	03/1979 - 04/1988	2
48213 - LEAF, REAR SPRING, NO.3
48202-35190	RK110	03/1979 - 04/1988	2
48214 - LEAF, REAR SPRING, NO.4
48203-35190	RK110	03/1979 - 04/1988	2
48215 - LEAF, REAR SPRING, NO.5
48215-35190	RK110	03/1979 - 04/1988	2
48216 - LEAF, REAR SPRING, NO.6
48216-35190	RK110	03/1979 - 04/1988	2
48220 - SPRING ASSY, REAR LH
48210-35190	RK110	03/1979 - 04/1988	1
48241 - CLIP, REAR SPRING, NO.1
48141-60120	RK110	03/1979 - 10/1981	2
48242 - CLIP, REAR SPRING, NO.2
48241-35190	RK110	03/1979 - 10/1981	2
48247 - BOLT, REAR SPRING, CENTER
48289-60010	RK110	03/1979 - 04/1988	2
Common parts
48284-60062
95111-00815

RK110R-JR3 (1979)

ILLUST NO. 1 OF 2(7903-9703)

ILLUST NO. 2 OF 2(7903- )
