RK110R-JR3 (1979)
Toyota Stout
Production
Mar 1979
-
Sep 1986
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

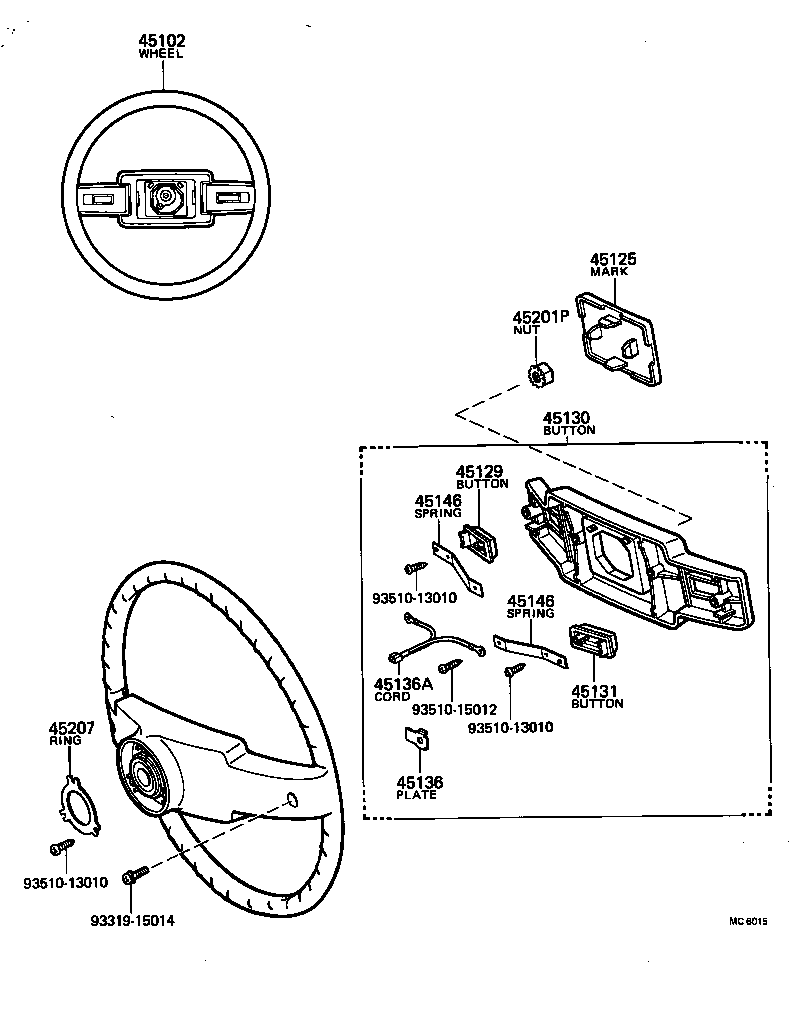

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45102 - WHEEL SUB-ASSY, STEERING | ||||
| 45100-3518106 |
RK110 BROWN,BROWN |
1 | ||
| 45100-3518104 |
RK110 BLUE,BLUE |
1 | ||
| 45100-3519005 |
RK110 BEIGE,BEIGE |
1 | ||
| 45100-3519004 |
RK110 BLUE,BLUE |
1 | ||
| 45100-3518101 |
RK110 BLACK,BLACK |
1 | ||
| 45100-3519001 |
RK110 BLACK,BLACK |
1 | ||
| 45125 - MARK, STEERING WHEEL PAD | ||||
| 45125-3506005 |
RK110 BEIGE,BEIGE |
1 | ||
| 45125-3506006 |
RK110 DARK BROWN,BROWN |
1 | ||
| 45125-3506004 |
RK110 BLUE,BLUE |
1 | ||
| 45125-3506001 |
RK110 BLACK,BLACK |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45131-35100 |
RK110 |
1 | ||
| 45131-35091 |
RK110 |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3515004 |
RK110 BLUE,BLUE |
1 | ||
| 45130-3515001 |
RK110 BLACK,BLACK |
1 | ||
| 45130-3514106 |
RK110 BROWN,BROWN |
1 | ||
| 45130-3515005 |
RK110 BEIGE,BEIGE |
1 | ||
| 45130-3514101 |
RK110 BLACK,BLACK |
1 | ||
| 45130-3514104 |
RK110 BLUE,BLUE |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-35091 |
RK110 |
1 | ||
| 45131-35100 |
RK110 |
1 | ||
| 45136 - PLATE, HORN BUTTON CONTACT | ||||
| 45136-26020 |
RK110 |
2 | ||
| 45136A - CORD(FOR HORN CONTACT RING) | ||||
| 90945-02040 |
RK110 |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-35050 |
RK110 |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-35050 |
RK110 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
RK110 |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-20030 |
RK110 |
1 | ||
| Common parts | ||||
| 93319-15014 | ||||
| 93510-13010 | ||||
| 93510-15012 | ||||
