RK110R-JR3 (1979)
Toyota Stout
Production
Mar 1979
-
Sep 1986
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

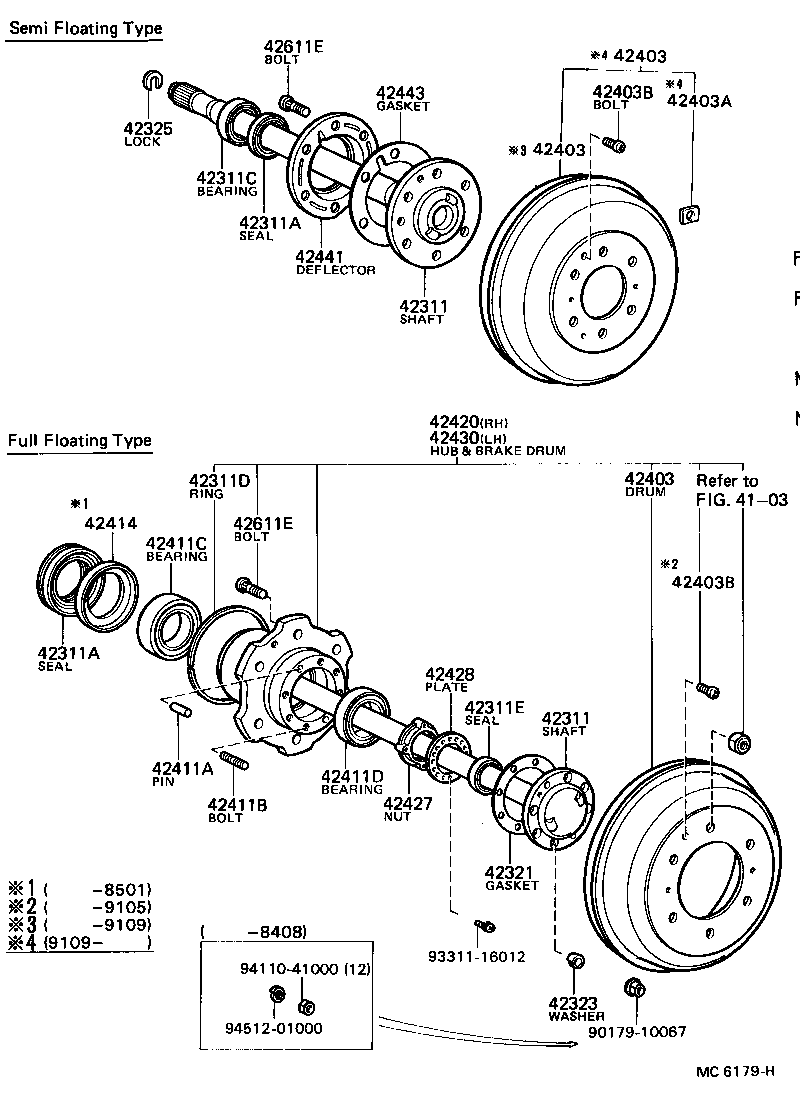

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-25030 |
RK110..TW;RK110..15T |
2 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-25030 |
RK110..TW;RK110..15T |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-47001 |
RK110..TW;RK110..15T |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-47001 |
RK110..TW;RK110..15T |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90365-47013 |
RK110..TW;RK110..15T |
2 | ||
| 42325 - LOCK, REAR AXLE SHAFT | ||||
| 42325-55010 |
RK110..TW;RK110..15T |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25040 |
RK110..TW;RK110..15T |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25040 |
RK110..TW;RK110..15T |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25040 |
RK110..TW;RK110..15T |
2 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10035 |
RK110..TW;RK110..15T |
2 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10035 |
RK110..TW;RK110..15T |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-25010 |
RK110..TW;RK110..15T |
2 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-25010 |
RK110..TW;RK110..15T |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02030 |
RK110..TW;RK110..15T |
12 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02030 |
RK110..TW;RK110..15T |
12 | ||
| Common parts | ||||
| 90179-10067 | ||||
| 93311-16012 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 4103 | ||||
