RK110R-JR3 (1979)

Toyota Stout

Production Mar 1979 - Sep 1986
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8609)

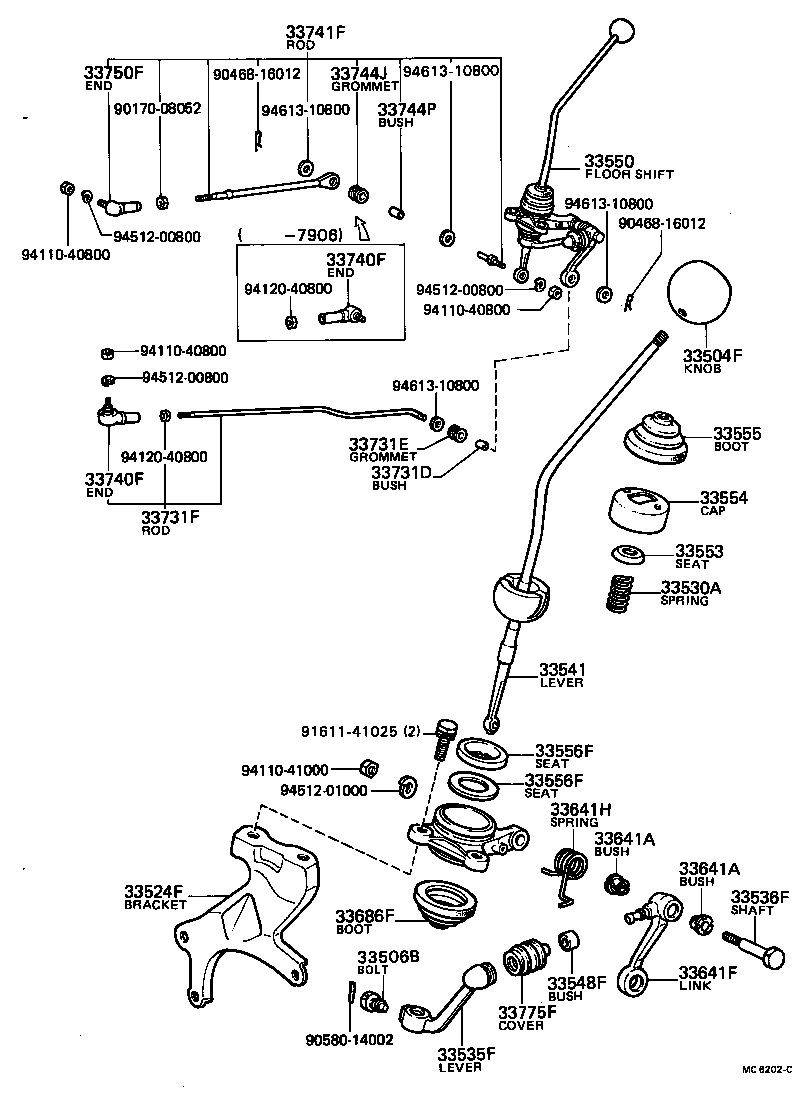

Click highlighted areas on diagram

diagram 33504F 33506B 33524F 33530A 33535F 33536F 33541 33548F 33550 33553 33554 33555 33556F 33556F 33641A 33641A 33641F 33641H 33686F 33731D 33731E 33731F 33740F 33740F 33741F 33744J 33744P 33750F 33775F 9017008052 9046816012 9046816012 9058014002 9161141025 9411040800 9411040800 9411040800 9411041000 9412040800 9412040800 9451200800 9451200800 9451200800 9451201000 9461310800 9461310800 9461310800 9461310800
Part # Description Qty Price
Common parts
90170-08052
90468-16012
90580-14002
91611-41025
94110-40800
94110-41000
94120-40800
94512-00800
94512-01000
94613-10800
