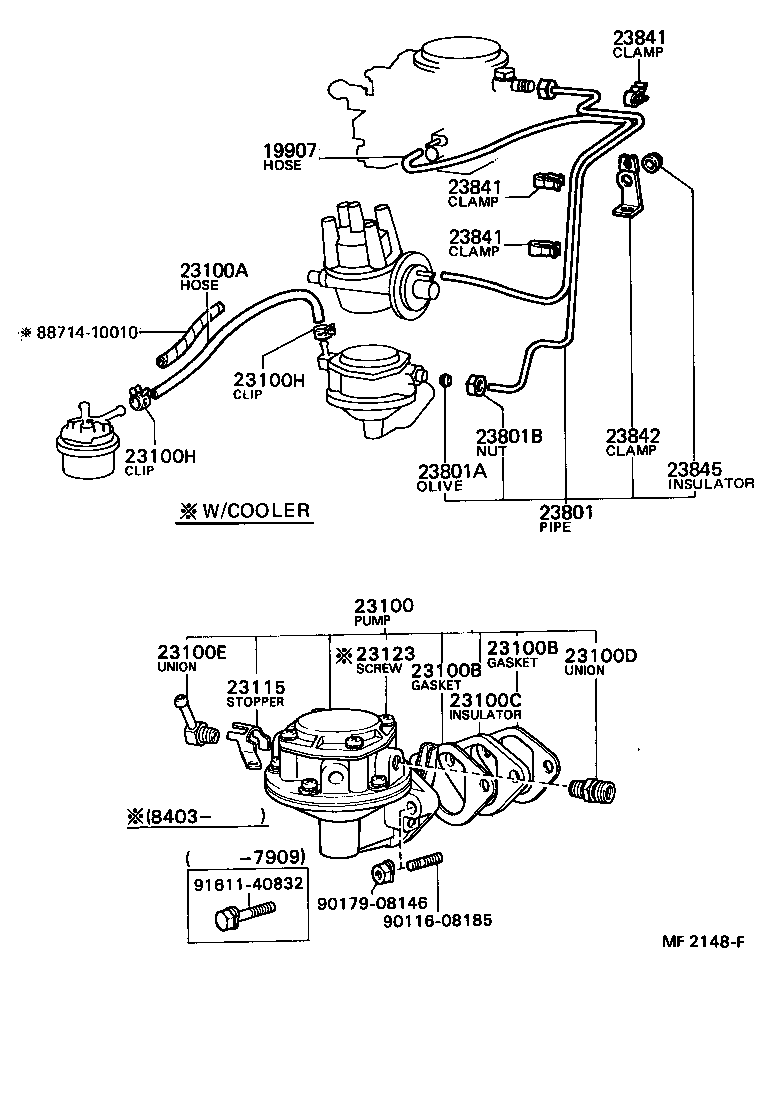

Toyota Stout RK110 FUEL PUMP & PIPE

Part #	Description	Period	Qty
19907 - HOSE, VACUUM, NO.1
95411-19995	5R..RK110 *H,L=750	03/1979 - 09/1986	1
23100 - PUMP ASSY, FUEL
23100-49205	5R..RK110	03/1979 - 01/1982	1
23100-49206	5R..RK110	01/1982 - 09/1986	1
23100A - HOSE, FUEL
95332-06040	5R..RK110 *H,L=320	03/1982 - 09/1986	1
95332-06030	5R..RK110 L=300	03/1979 - 03/1982	1
23100B - GASKET, FUEL PUMP
90923-05005	5R..RK110	03/1979 - 08/1987	2
23100B - GASKET, FUEL PUMP
90923-05005	5R..RK110	03/1979 - 08/1987	2
23100C - INSULATOR, FUEL PUMP
90923-06001	5R..RK110	03/1979 - 08/1987	1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13105	5R..RK110	03/1979 - 09/1986	1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-31040	5R..RK110	03/1979 - 09/1986	1
23100H - CLIP(FOR FUEL HOSE)
96132-30600	5R..RK110	03/1979 - 04/1988	2
23100H - CLIP(FOR FUEL HOSE)
96132-30600	5R..RK110	03/1979 - 04/1988	2
23115 - STOPPER, UNION NIPPLE
23115-44060	5R..RK110	03/1979 - 09/1986	1
23123 - SCREW, COVER SET, NO.1
93319-15014	5R..RK110 L=14	03/1984 - 09/1986	2
93319-15016	5R..RK110 L=16	03/1984 - 09/1986	8
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-44060	5R..RK110	03/1979 - 12/1980	1
23801-44031	5R..RK110	12/1980 - 09/1986	1
23801A - OLIVE(FOR FUEL PIPE)
96395-71400	5R..RK110	03/1979 - 09/1986	2
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041	5R..RK110	03/1979 - 09/1986	2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025	5R..RK110	03/1979 - 09/1986	4
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025	5R..RK110	03/1979 - 09/1986	4
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025	5R..RK110	03/1979 - 09/1986	4
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-44010	5R..RK110	03/1979 - 09/1986	1
23845 - INSULATOR, FUEL PIPE
90480-11124	5R..RK110	03/1979 - 09/1986	1
Common parts
88714-10010
90116-08185
90179-08146
91611-40832

RK110R-JR3 (1979)

(7903-8609)
