RK110L-KRP3 (1979)
Toyota Stout
Production
Mar 1979
-
Sep 1986
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )TW

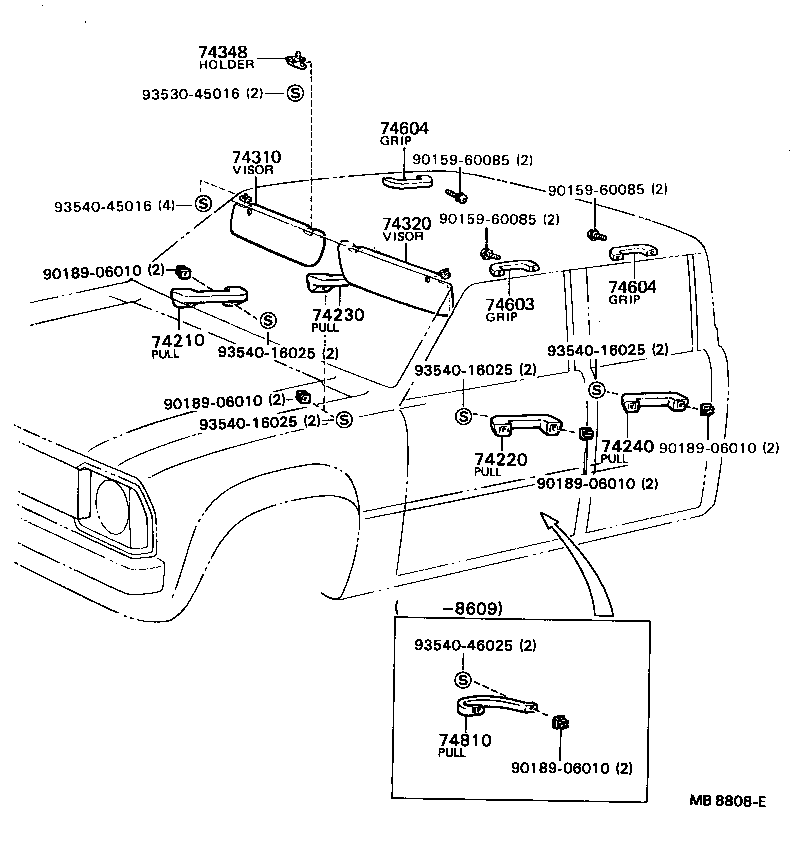

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-8910904 |
RK110..GEN,SA LIGHT BLUE,BLUE |
1 | ||
| 74310-8910903 |
RK110..GEN,SA GRAY,GRAY |
1 | ||
| 74310-8910905 |
RK110..GEN,SA LIGHT BEIGE,BEIGE |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74310-8910903 |
RK110..GEN,SA GRAY,GRAY |
1 | ||
| 74310-8910904 |
RK110..GEN,SA LIGHT BLUE,BLUE |
1 | ||
| 74310-8910905 |
RK110..GEN,SA LIGHT BEIGE,BEIGE |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-1401013 |
RK110 GRAY,GRAY |
1 | ||
| 74348-1401014 |
RK110 LIGHT BLUE,BLUE |
1 | ||
| 74348-1401005 |
RK110 LIGHT BEIGE,BEIGE |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74611-8910104 |
RK110 LIGHT BLUE,BLUE |
1 | ||
| 74611-8910113 |
RK110 GRAY,GRAY |
1 | ||
| 74611-8910105 |
RK110 BEIGE,BEIGE |
1 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74611-8910113 |
RK110..TW GRAY,GRAY |
2 | ||
| 74611-8910104 |
RK110..TW LIGHT BLUE,BLUE |
2 | ||
| 74611-8910105 |
RK110..TW BEIGE,BEIGE |
2 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74611-8910113 |
RK110..TW GRAY,GRAY |
2 | ||
| 74611-8910104 |
RK110..TW LIGHT BLUE,BLUE |
2 | ||
| 74611-8910105 |
RK110..TW BEIGE,BEIGE |
2 | ||
| 74810 - PULL ASSY, DOOR, INSIDE | ||||
| 74810-1001004 |
RK110..TW BLUE,BLUE |
4 | ||
| 74810-1001006 |
RK110..TW LIGHT BROWN,BROWN |
4 | ||
| 74810-1001011 |
RK110..TW BLACK,BLACK |
4 | ||
| 69285-8910105 |
RK110..TW BEIGE,BEIGE |
4 | ||
| 69285-8910104 |
RK110..TW BLUE,BLUE |
4 | ||
| 69285-8910101 |
RK110..TW BLACK,BLACK |
4 | ||
| Common parts | ||||
| 90159-60085 | ||||
| 90189-06010 | ||||
| 93530-45016 | ||||
| 93540-16025 | ||||
| 93540-45016 | ||||
| 93540-46025 | ||||
