KP62RV-PXKRSW (1978)
Toyota Starlet
Production
Oct 1978
-
May 1980
Engine
3KH
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7810-8005)4D

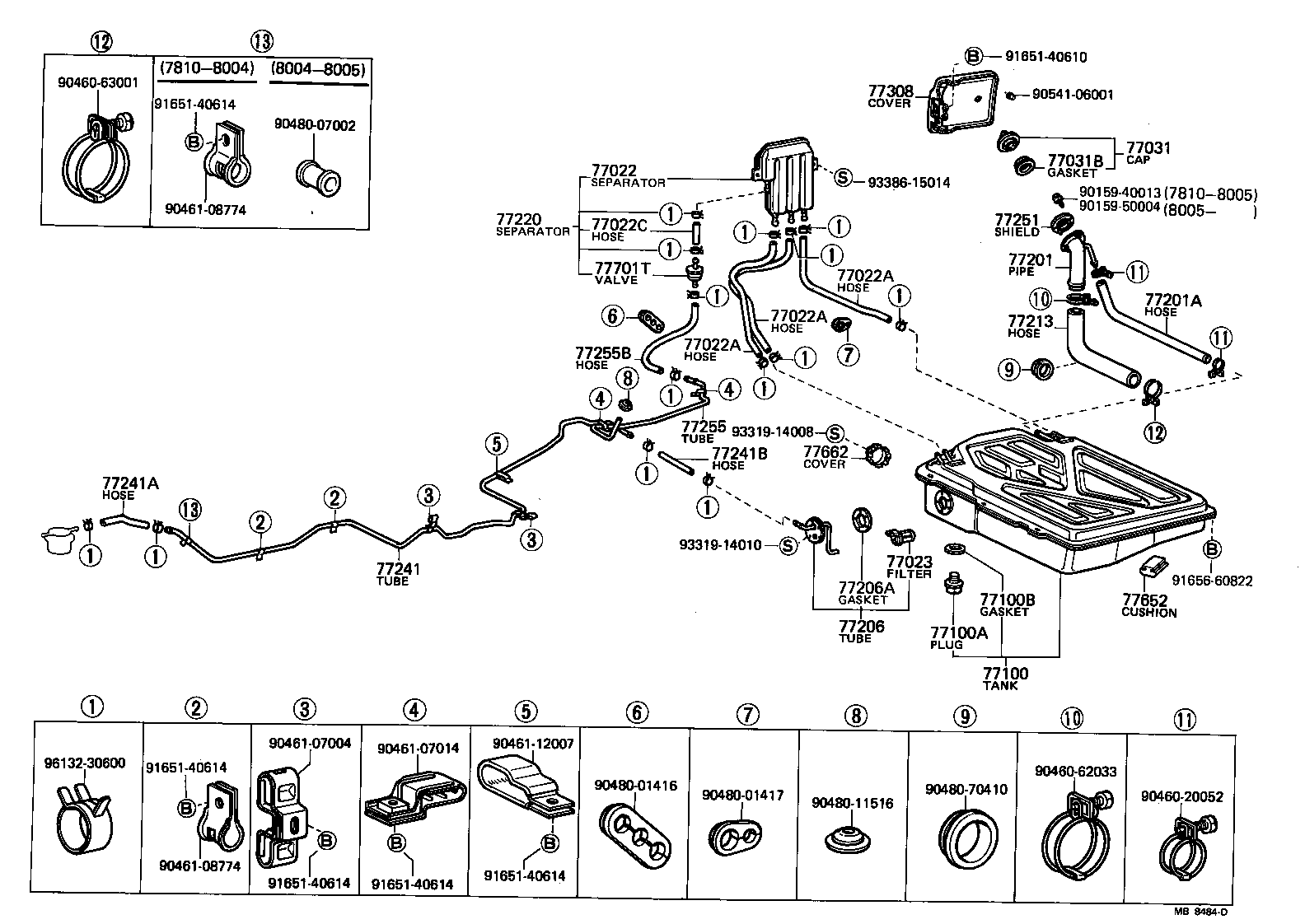

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06046 |
KP6#..4D *H,L=460 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06046 |
KP6#..4D *H,L=460 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06046 |
KP6#..4D *H,L=460 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06005 |
KP6#..4D L=50 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
KP6# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
KP6# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
KP6# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-96440 |
KP6#..4D |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
KP6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
KP6# |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77209-96440 |
KP6#..4D |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-96440 |
KP6#..4D |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06011 |
KP6# *H,L=110 |
1 | ||
| 95332-06020 |
KP6# *H,L=110 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06012 |
KP6#..4D *H,L=120 |
1 | ||
| 95332-06020 |
KP6#..4D *H,L=120 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
KP6#..4D |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77263-96440 |
KP6#..4D |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
KP6# |
1 | ||
| Common parts | ||||
| 90159-40013 | ||||
| 90159-50004 | ||||
| 90460-20052 | ||||
| 90460-62033 | ||||
| 90460-63001 | ||||
| 90461-07004 | ||||
| 90461-07014 | ||||
| 90461-08774 | ||||
| 90461-12007 | ||||
| 90480-01416 | ||||
| 90480-01417 | ||||
| 90480-07002 | ||||
| 90480-11516 | ||||
| 90480-70410 | ||||
| 90541-06001 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91656-60822 | ||||
| 93319-14008 | ||||
| 93319-14010 | ||||
| 93386-15014 | ||||
| 96132-30600 | ||||
