KP62RV-PXKRSW (1978)

Toyota Starlet

Production Oct 1978 - May 1980
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7810- )4D

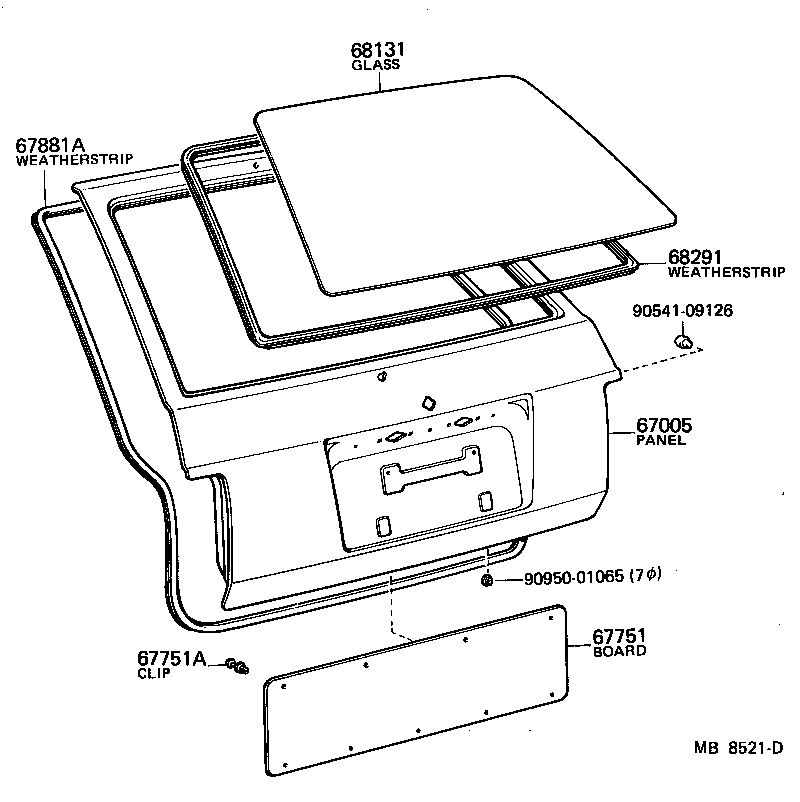

Click highlighted areas on diagram

diagram 67005 67751 67751A 67881A 68131 68291 9054109126 9095001065
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67751-9644004

KP6#..4D

BLUE,BLUE,TRIM8#

 1
67751-9644006

KP6#..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0811426

KP6#..4D

LIGHT BROWN,BROWN,TRIM4#

 9
90467-0811424

KP6#..4D

BLUE,BLUE,TRIM8#

 9
68131 - GLASS, BACK DOOR
68131-96440

KP6#..4D

*TEM,T=4.0

 1
68105-96440

KP6#..4D

*EHT,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-96441

KP6#..4D

W/WINDOW MOULDING

 1
Common parts
90541-09126
90950-01065
