KP62RV-PXKRSW (1978)

Toyota Starlet

Production Oct 1978 - May 1980
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

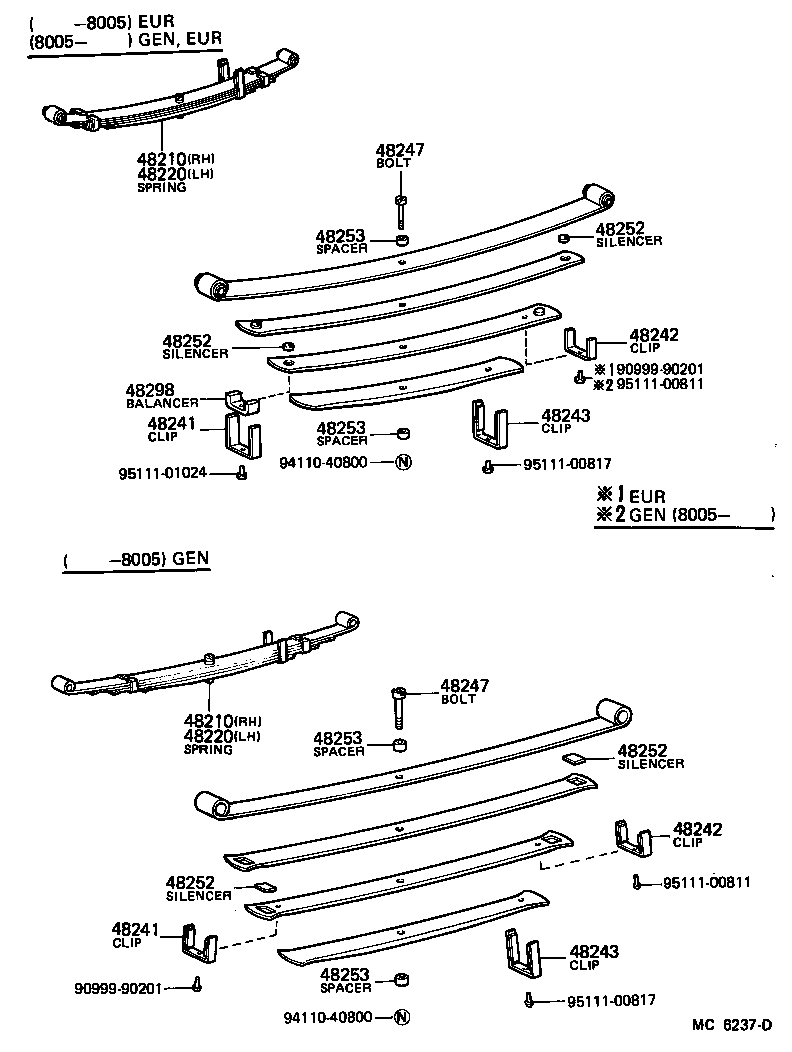

(7810- )4D

Click highlighted areas on diagram

diagram 48210 48210 48220 48220 48241 48241 48242 48242 48243 48243 48247 48247 48252 48252 48252 48252 48253 48253 48253 48253 48298 9099990201 9099990201 9411040800 9411040800 9511100811 9511100811 9511100817 9511100817 9511101024
Part # Description Qty Price
48241 - CLIP, REAR SPRING, NO.1
48241-11100

KP6#..4D..EUG

 2
48241 - CLIP, REAR SPRING, NO.1
48241-11100

KP6#..4D..EUG

 2
48242 - CLIP, REAR SPRING, NO.2
48242-11100

KP6#..4D..EUG

 2
48241-10070

KP6#..4D..EUG

 2
48242 - CLIP, REAR SPRING, NO.2
48242-11100

KP6#..4D..EUG

 2
48241-10070

KP6#..4D..EUG

 2
Common parts
90999-90201
94110-40800
95111-00811
95111-00817
95111-01024

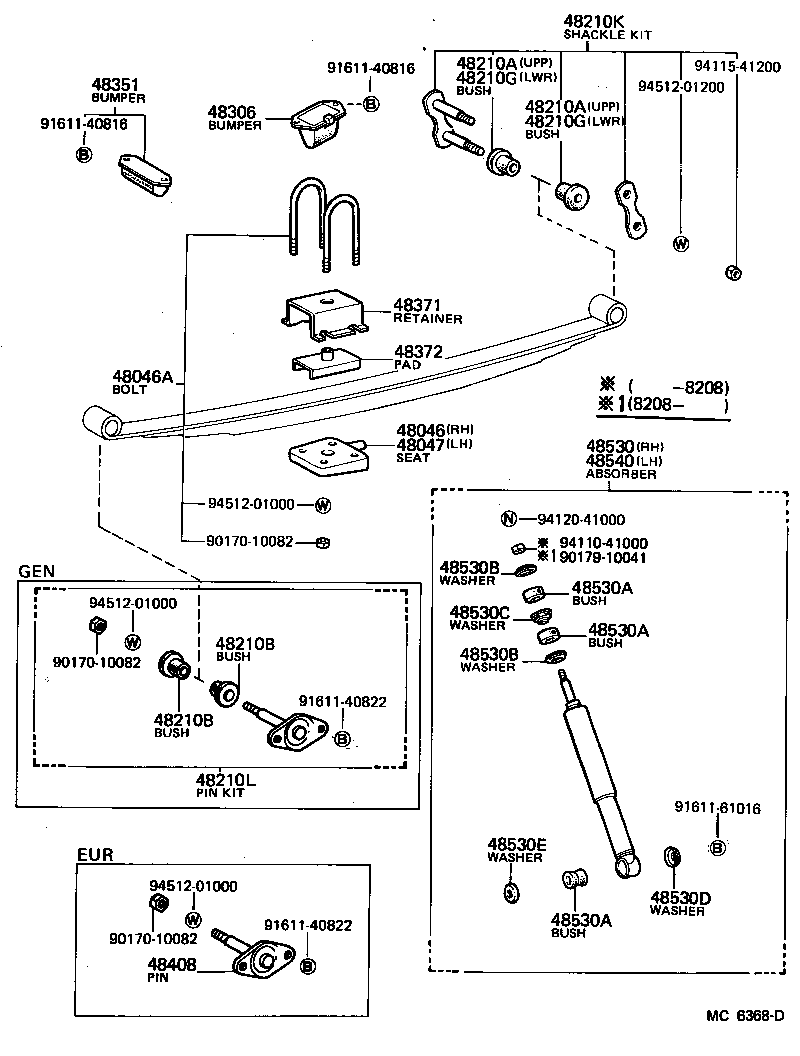

(7810- )4D

Click highlighted areas on diagram

diagram 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48210K 48210L 48306 48351 48371 48372 48408 48530 48530A 48530A 48530A 48530B 48530B 48530C 48530D 48530E 48540 9017010082 9017010082 9017010082 9017910041 9161140816 9161140816 9161140822 9161140822 9161161016 9411041000 9411541200 9412041000 9451201000 9451201000 9451201000 9451201200
Part # Description Qty Price
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-19555

KP6#..4D

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16060

KP6#

ABSORBER X RR AXLE HOUSING

 2
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16060

KP6#

ABSORBER X RR AXLE HOUSING

 2
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16060

KP6#

ABSORBER X RR AXLE HOUSING

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

KP6#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-19555

KP6#..4D

 1
Common parts
90170-10082
90179-10041
91611-40816
91611-40822
91611-61016
94110-41000
94115-41200
94120-41000
94512-01000
94512-01200
