KP62RV-PXKRS (1978)

Toyota Starlet

Production Oct 1978 - Aug 1982
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7810-8208)4D

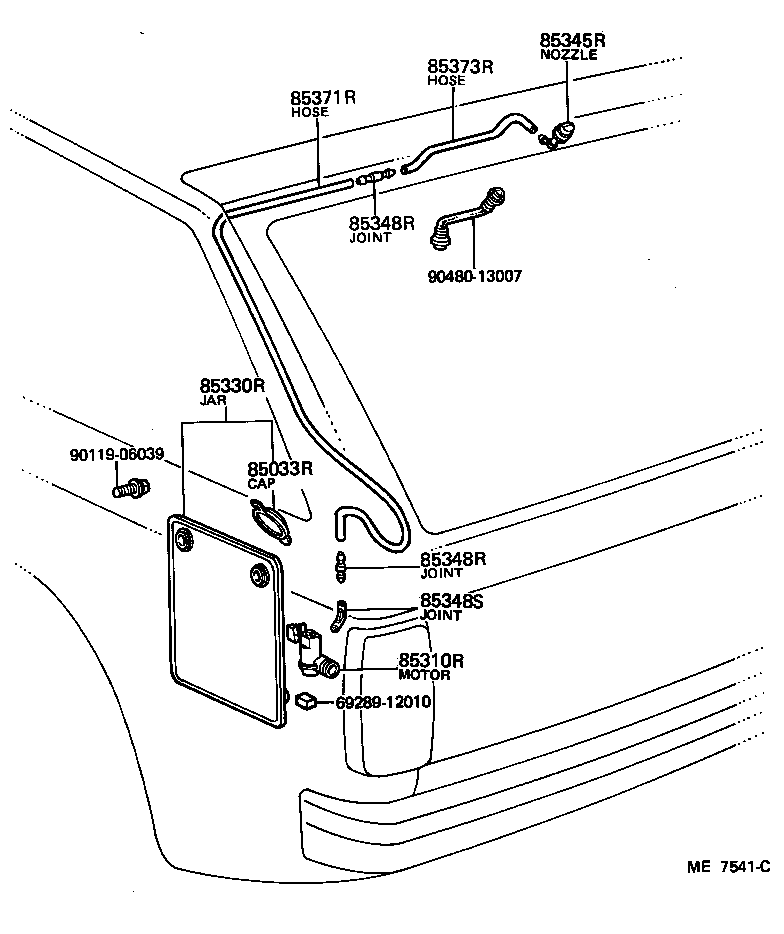

Click highlighted areas on diagram

diagram 6928912010 85033R 85310R 85330R 85345R 85348R 85348R 85348S 85371R 85373R 9011906039 9048013007
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85033-22010

KP6#..4D

 1
85332-20050

KP6#..4D

 1
85310R - MOTOR ASSY, REAR WASHER
85310-20100

KP6#..4D

 1
85330R - JAR ASSY, REAR WASHER
85330-96441

KP6#..4D

 1
85330-96440

KP6#..4D

 1
85345R - NOZZLE, REAR WASHER
85035-91255

KP6#..4D

 1
85035-12110

KP6#..4D

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

KP6#..4D

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

KP6#..4D

 2
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20070

KP6#..4D

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06006

KP6#..4D

*H,L=1400

 1
90446-06006

KP6#..4D

*H,L=1300

 1
Common parts
69289-12010
90119-06039
90480-13007
