KP62R-PHKRS (1978)

Toyota Starlet

Production Oct 1978 - Aug 1982
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8005)

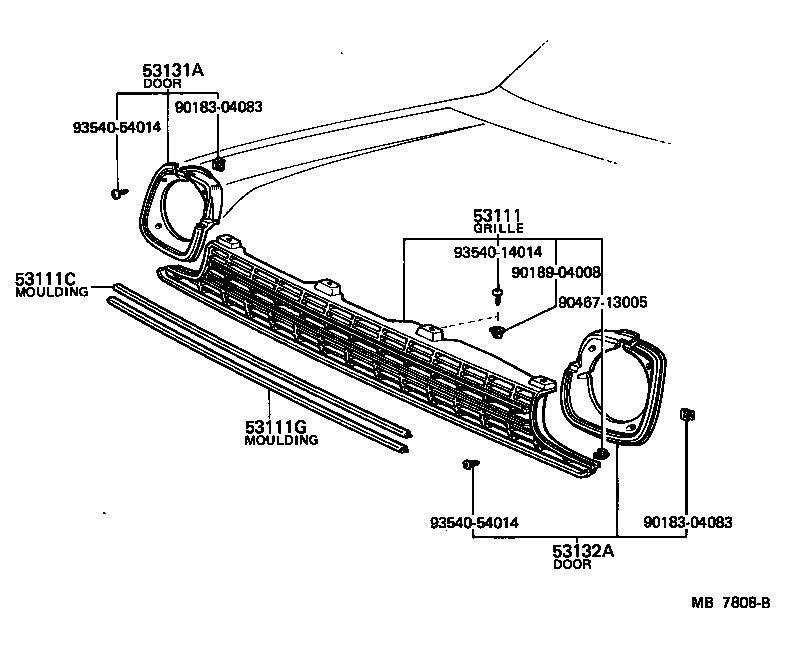

Click highlighted areas on diagram

diagram 53111 53111C 53111G 53131A 53132A 9018304083 9018304083 9018904008 9046713005 9354014014 9354054014 9354054014
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-19255

KP6#

 1
53111-19256

KP6#

 1
53111C - MOULDING, RADIATOR GRILLE, UPPER
75511-10060

KP6#

 1
53111G - MOULDING, RADIATOR GRILLE, LOWER
75512-10010

KP6#

 1
53131A - DOOR, HEADLAMP, RH
53131-19355

KP6#..SED

CHROME PLATED,PAINTED

 1
53131-19355

KP6#

CHROME PLATED,PAINTED

 1
53131-19345

KP6#

PAINTED

 1
53131-19475

KP6#

PAINTED

 1
53132A - DOOR, HEADLAMP, LH
53132-19345

KP6#

PAINTED

 1
53132-19355

KP6#..SED

CHROME PLATED,PAINTED

 1
53132-19475

KP6#

PAINTED

 1
53132-19355

KP6#

CHROME PLATED,PAINTED

 1
Common parts
90183-04083
90189-04008
90467-13005
93540-14014
93540-54014

(8005-8208)

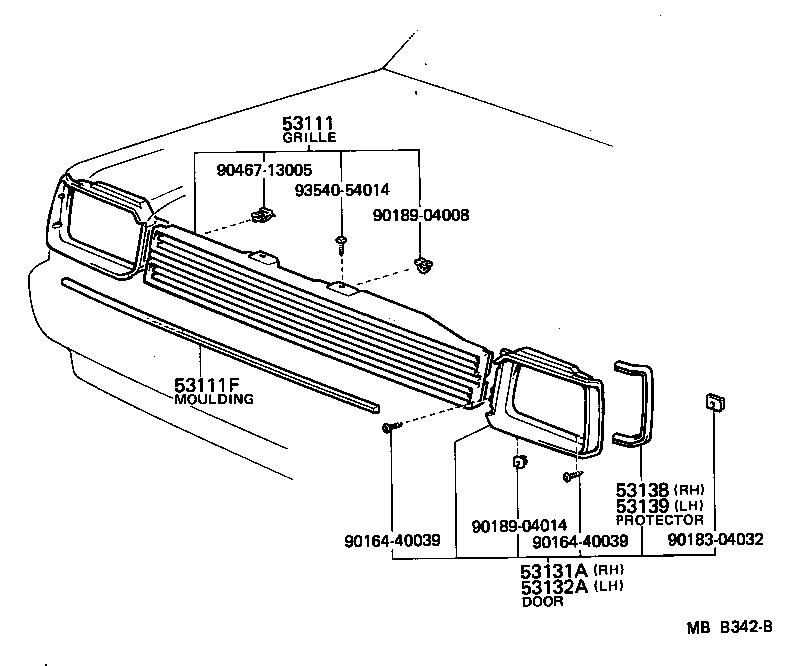

Click highlighted areas on diagram

diagram 53111 53111F 53131A 53132A 53138 53139 9016440039 9016440039 9018304032 9018904008 9018904014 9046713005 9354054014
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-19255

KP6#

 1
53111-19256

KP6#

 1
53111F - MOULDING, RADIATOR GRILLE, CENTER
75511-10080

KP6#

RED PAINTED

 1
75511-10090

KP6#

STAINLESS

 1
53131A - DOOR, HEADLAMP, RH
53131-19355

KP6#..SED

CHROME PLATED,PAINTED

 1
53131-19355

KP6#

CHROME PLATED,PAINTED

 1
53131-19345

KP6#

PAINTED

 1
53131-19475

KP6#

PAINTED

 1
53132A - DOOR, HEADLAMP, LH
53132-19345

KP6#

PAINTED

 1
53132-19355

KP6#..SED

CHROME PLATED,PAINTED

 1
53132-19475

KP6#

PAINTED

 1
53132-19355

KP6#

CHROME PLATED,PAINTED

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53139-10071

KP6#

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-10071

KP6#

 1
Common parts
90164-40039
90183-04032
90189-04008
90189-04014
90467-13005
93540-54014
