KP62L-PHMRSW (1978)

Toyota Starlet

Production Oct 1978 - Aug 1981
Engine 3KH
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)KP60,62..SED ; (7802-8208)KP60,62..SED ; (8108-8208)3FC ; (8108-8208)SDN

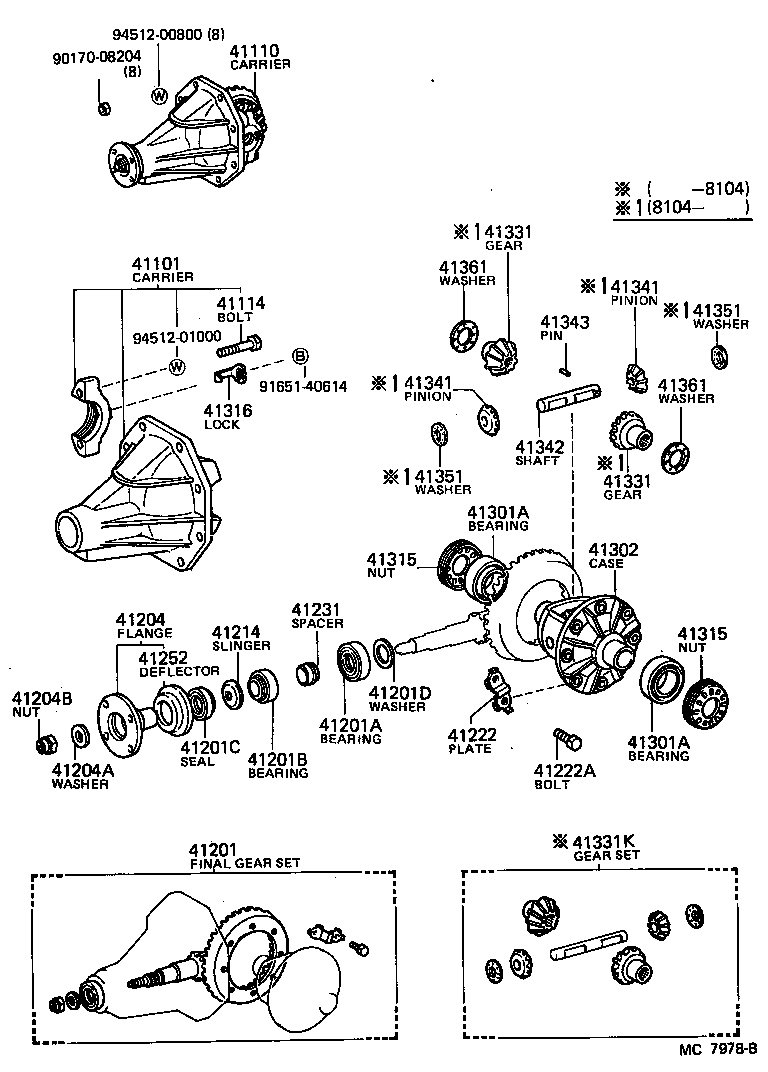

Click highlighted areas on diagram

diagram 41101 41110 41114 41201 41201A 41201B 41201C 41201D 41204 41204A 41204B 41214 41222 41222A 41231 41252 41301A 41301A 41302 41315 41315 41316 41331 41331 41331K 41341 41341 41342 41343 41351 41351 41361 41361 9017008204 9165140614 9451200800 9451201000
Part # Description Qty Price
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-10050

KP6#..SED

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-19015

KP60,62..SED

R=43:11=3.909,*AXC=X312

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90101-10128

KP6#

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-19275

KP60,62..SED

N=43:11

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90368-30069

KP6#

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-25047

KP6#

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-35131

KP6#

 1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90201-30241

KP6#

T=2.53-2.55,T=2.53-2.55

 1
90201-30236

KP6#

T=2.38-2.40

 1
90201-30235

KP6#

T=2.35-2.37

 1
90201-30539

KP6#

T=2.23-2.25,T=2.23-2.25

 1
90201-30237

KP6#

T=2.41-2.43,T=2.41-2.43

 1
90201-30238

KP6#

T=2.44-2.46,T=2.44-2.46

 1
90201-30234

KP6#

T=2.32-2.34

 1
90201-30542

KP6#

T=2.59-2.61,T=2.59-2.61

 1
90201-30242

KP6#

T=2.56-2.58,T=2.56-2.58

 1
90201-30541

KP6#

T=2.29-2.31,T=2.29-2.31

 1
90201-30239

KP6#

T=2.47-2.49,T=2.47-2.49

 1
90201-30543

KP6#

T=2.62-2.64,T=2.62-2.64

 1
90201-30544

KP6#

T=2.65-2.67,T=2.65-2.67

 1
90201-30540

KP6#

T=2.26-2.28,T=2.26-2.28

 1
90201-30240

KP6#

T=2.50-2.52,T=2.50-2.52

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-10010

KP60,62..SED

 1
41204A - WASHER, PLATE (FOR REAR DRIVE PINION)
90201-18182

KP60,62..SED

 1
41204B - NUT (FOR REAR DRIVE PINION)
90179-18001

KP60,62..SED

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-12020

KP6#

 1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-10020

KP60,62..SED

 4
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90101-11365

KP6#

 8
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-12020

KP6#

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-12020

KP6#

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-31006

KP60,62..SED

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-31006

KP60,62..SED

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41311-10040

KP60,62..SED

 1
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-10020

KP60,62..SED

 2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-10020

KP60,62..SED

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-10020

KP60,62..SED

 2
41331K - GEAR SET, DIFFERENTIAL
41331-10H00

KP6#..SED

 1
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-10020

KP60,62..SED

 1
41343 - PIN, REAR DIFFERENTIAL PINION SHAFT
90250-04053

KP6#

 1
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-10020

KP60,62..SED

T=1.54-1.56

 2
41361-10050

KP60,62..SED

T=1.69-1.71

 2
41361-10010

KP60,62..SED

T=1.49-1.51

 2
41361-10060

KP60,62..SED

T=1.74-1.76

 2
41361-10040

KP60,62..SED

T=1.64-1.66

 2
41361-10030

KP60,62..SED

T=1.59-1.61

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-10020

KP60,62..SED

T=1.54-1.56

 2
41361-10050

KP60,62..SED

T=1.69-1.71

 2
41361-10010

KP60,62..SED

T=1.49-1.51

 2
41361-10060

KP60,62..SED

T=1.74-1.76

 2
41361-10040

KP60,62..SED

T=1.64-1.66

 2
41361-10030

KP60,62..SED

T=1.59-1.61

 2
Common parts
90170-08204
91651-40614
94512-00800
94512-01000
