KP62L-PHKRSW (1978)

Toyota Starlet

Production Oct 1978 - Aug 1981
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)LHD..EUR

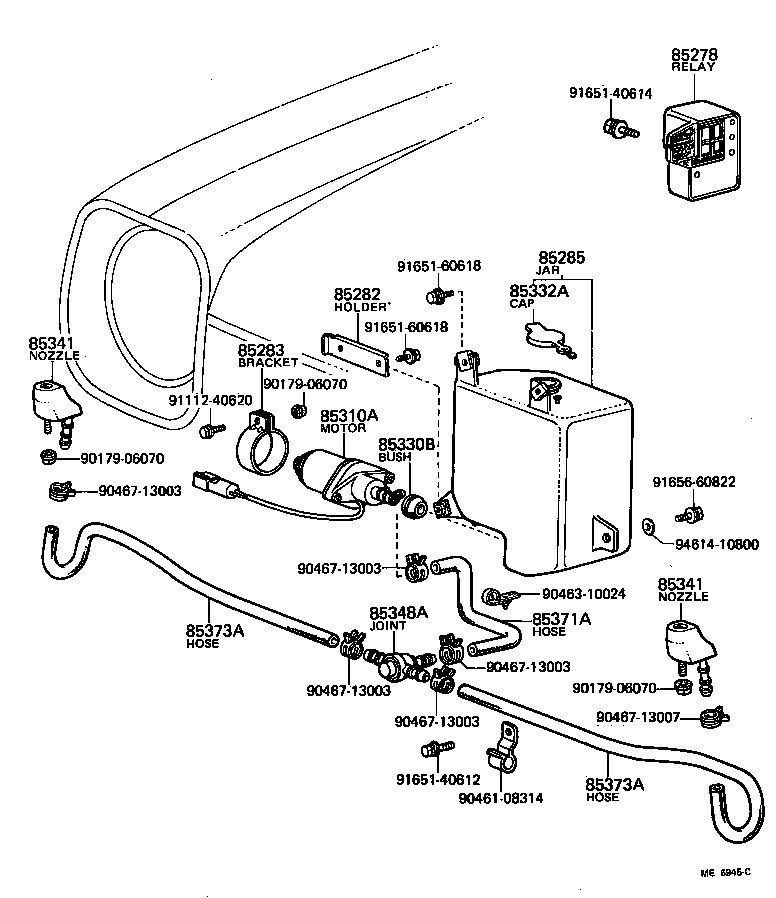

Click highlighted areas on diagram

diagram 85278 85282 85283 85285 85310A 85330B 85332A 85341 85341 85348A 85371A 85373A 85373A 9017906070 9017906070 9017906070 9046108314 9046310024 9046713003 9046713003 9046713003 9046713003 9046713003 9046713007 9111240620 9165140612 9165140614 9165160618 9165160618 9165660822 9461410800
Part # Description Qty Price
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-14010

KP6#..LHD..EUR

 1
85282 - HOLDER ASSY, HEADLAMP CLEANER WASHER JAR
85361-10080

KP6#..LHD..EUR

 1
85283 - BRACKET, HEADLAMP CLEANER WASHER
85361-10070

KP6#..LHD..EUR

 1
85285 - JAR, HEADLAMP CLEANER WASHER
85330-10131

KP6#..LHD..EUR

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-10090

KP6#..LHD..EUR

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
85336-10010

KP6#..LHD..EUR

 1
85332A - CAP, HEADLAMP CLEANER WASHER JAR
85332-10010

KP6#..LHD..EUR

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-10130

KP6#..LHD..EUR

RH

 1
85045-10010

KP6#..LHD..EUR

LH

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-10130

KP6#..LHD..EUR

RH

 1
85045-10010

KP6#..LHD..EUR

LH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85031-12010

KP6#..LHD..EUR

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85343-10020

KP6#..LHD..EUR

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85343-10070

KP6#..LHD..EUR

LH

 1
85343-10010

KP6#..LHD..EUR

L=150,RH

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85343-10070

KP6#..LHD..EUR

LH

 1
85343-10010

KP6#..LHD..EUR

L=150,RH

 1
Common parts
90179-06070
90461-08314
90463-10024
90467-13003
90467-13007
91112-40620
91651-40612
91651-40614
91651-60618
91656-60822
94614-10800
