KP61R-PHMDS (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

Click highlighted areas on diagram

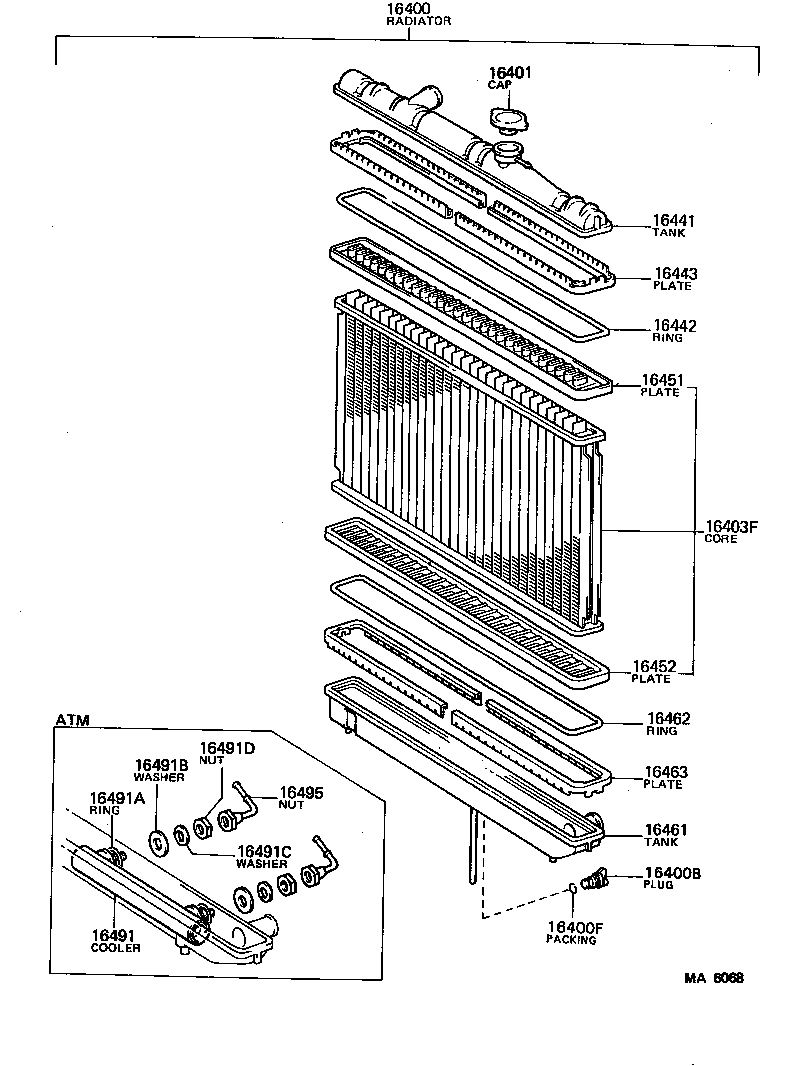

diagram 16400 16400B 16400F 16401 16403F 16441 16442 16443 16451 16452 16461 16462 16463 16491 16491A 16491B 16491C 16491D 16495
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-13290

4K..KP61..MTM

W/COOLER

 1
16400-13250

2K,4K#..KP6#..MTM

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

2K,4K#..KP6#

 1
90910-09054

2K,3K#,4K#..KP6#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

2K,3K#,4K#..KP6#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

2K,4K#..KP6#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-13250

2K,4K#..KP6#..MTM

 1
16403-13280

4K..KP61..MTM

W/COOLER

 1
16441 - TANK, RADIATOR, UPPER
16441-13230

2K,4K#..KP6#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-26330

2K,4K#..KP6#

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-26330

2K,4K#..KP6#

 2
16443-13351

2K,4K#..KP6#

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-26330

2K,4K#..KP6#

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-26330

2K,4K#..KP6#

 1
16461 - TANK, RADIATOR, LOWER
16461-13230

2K,4K#..KP6#..MTM

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-26330

2K,4K#..KP6#

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-13350

2K,4K#..KP6#

 1
16463-26330

2K,4K#..KP6#

 1

(8208- )

Click highlighted areas on diagram

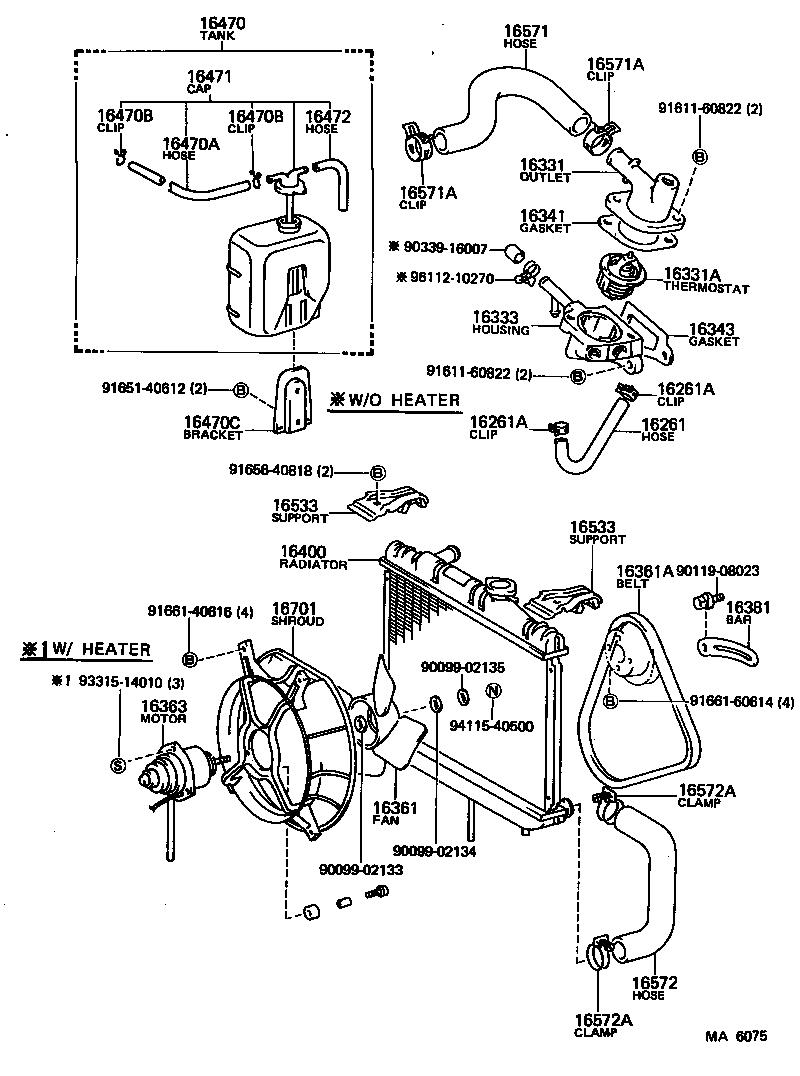

diagram 16261 16261A 16261A 16331 16331A 16333 16341 16343 16361 16361A 16363 16381 16400 16470 16470A 16470B 16470B 16470C 16471 16472 16533 16533 16571 16571A 16571A 16572 16572A 16572A 16701 9009902133 9009902134 9009902135 9011908023 9033916007 9161160822 9161160822 9165140612 9165640818 9166140616 9166160614 9331514010 9411540500 9611210270
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-13010

2K,3K#,4K#..KP6#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90460-15001

2K,3K#,4K#..KP6#

 2
90467-13128

2K,4K#..KP6#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90460-15001

2K,3K#,4K#..KP6#

 2
90467-13128

2K,4K#..KP6#

 2
16331 - OUTLET, WATER
16331-13020

2K,3K#,4K#..KP6#

 1
16331-13040

2K,4K#..KP6#

 1
16331A - THERMOSTAT
90916-03034

2K,4K..KP6#..GEN

*WAX 82-95,*(F)

 1
90916-03037

2K,4K..KP6#..GEN

*WAX 82-95,KUZEH

 1
90916-03054

2K,4K..KP6#..GEN

*WAX 82-95,*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16333-12011

2K,4K..KP6#..GEN

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-22010

2K,3K#,4K#..KP6#

 1
16361 - FAN
16361-13010

2K,3K#,4K#..KP6#

4 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00850

2K,4K..KP6#..MTM..GEN

L=850

 1
99321-00855

2K,4K..KP6#..MTM..GEN

L=855

 1
99321-00870

2K,4K..KP6#..MTM..GEN

W/RR WINDOW DEF OR COOLER

 1
99321-00885

2K,4K..KP6#..MTM..GEN

W/RR WINDOW DEF OR COOLER

 1
16363 - MOTOR, COOLING FAN
16363-13050

2K,4K#..KP6#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-24011

2K,3K#,4K#..KP6#

 1
16400 - RADIATOR ASSY
16400-13290

4K..KP61..MTM

W/COOLER

 1
16400-13250

2K,4K#..KP6#..MTM

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-13020

2K,4K#..KP6#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12073

2K,4K#..KP6#

L=420

 1
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-12010

2K,3K#,4K#..KP6#

 1
16611-12020

4K#..KP61

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-13020

2K,4K#..KP6#

 1
16472 - HOSE, BREATHER
85338-95A01

2K,4K#..KP6#

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-13010

2K,4K#..KP6#

 2
16533 - SUPPORT, RADIATOR, UPPER
16533-13010

2K,4K#..KP6#

 2
16571 - HOSE, RADIATOR, INLET
16572-13090

2K,4K#..KP6#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-31001

2K,4K#..KP6#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-31001

2K,4K#..KP6#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

2K,3K#,4K#..KP6#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

2K,3K#,4K#..KP6#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-13170

2K,4K#..KP6#

 1
16711-13171

2K,4K#..KP6#

 1
Common parts
90099-02133
90099-02134
90099-02135
90119-08023
90339-16007
91611-60822
91651-40612
91656-40818
91661-40616
91661-60614
93315-14010
94115-40500
96112-10270
