KP61R-PHHRSW (1981)
Toyota Starlet
Production
Aug 1981
-
Aug 1982
Engine
4K
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

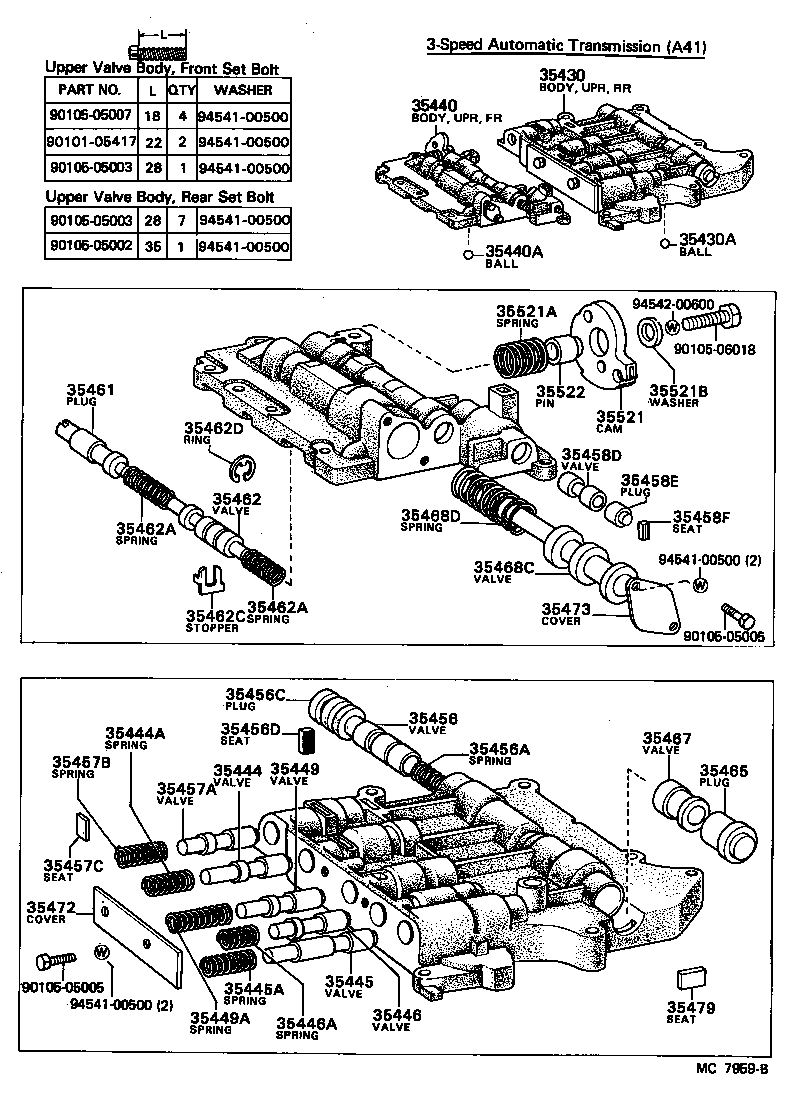

(8108- )3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-30080 |
KP61..3FC |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
KP61..3FC |
2 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09022 |
KP61..3FC |
1 | ||
| Common parts | ||||
| 90101-05417 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05007 | ||||
| 90105-06018 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||

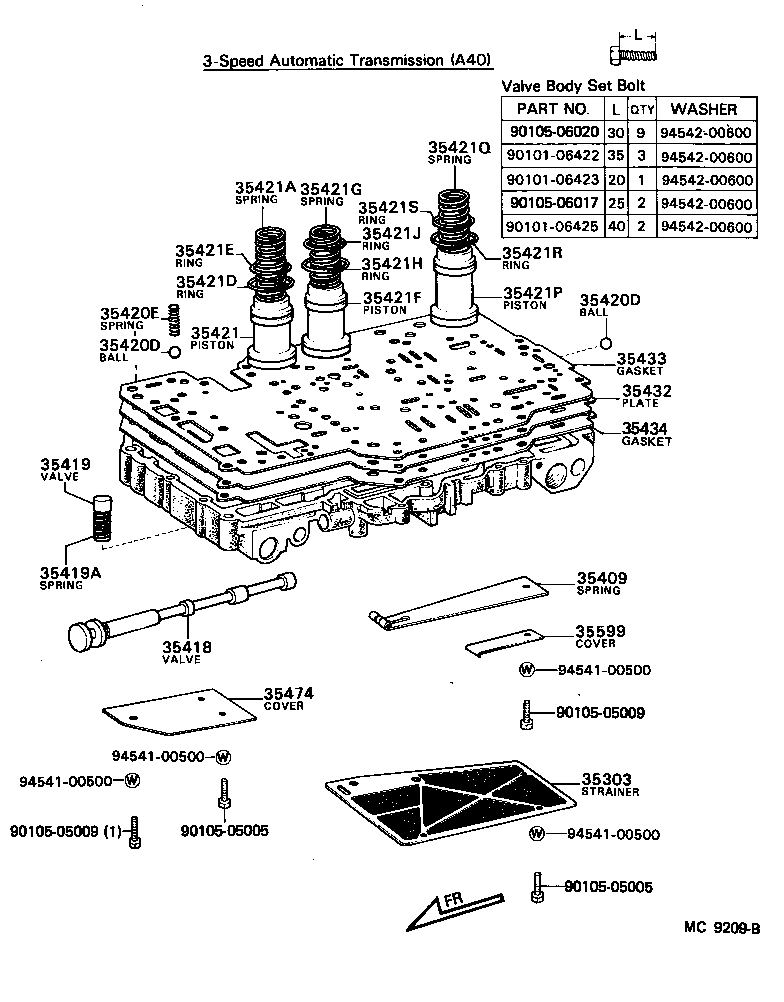

(8108- )3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-23738 |
KP61..3FC |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22020 |
KP61..3FC |
1 | ||
| Common parts | ||||
| 90101-06422 | ||||
| 90101-06423 | ||||
| 90101-06425 | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||
(8108- )3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
KP61..3FC |
2 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-22010 |
KP61..3FC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 94541-00500 | ||||
