KP61L-PHMDS (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

Click highlighted areas on diagram

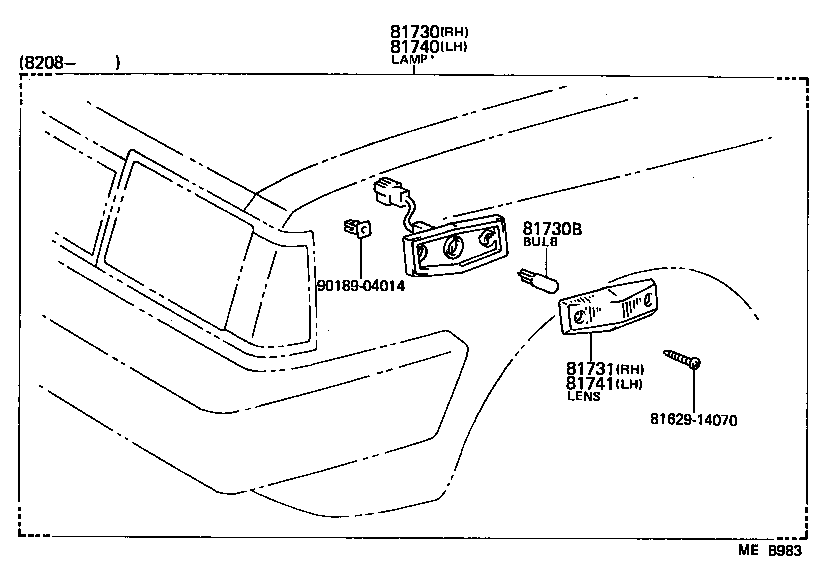

diagram 8162914070 81730 81730B 81731 81740 81741 9018904014
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-19326

KP6#

 1
81730-19295

KP6#

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-11050

KP6#

12V 5W,12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-14100

KP6#

 1
81731-12161

KP6#

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81730-19326

KP6#

 1
81740-19275

KP6#

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-14100

KP6#

 1
81731-12161

KP6#

 1
Common parts
81629-14070
90189-04014
