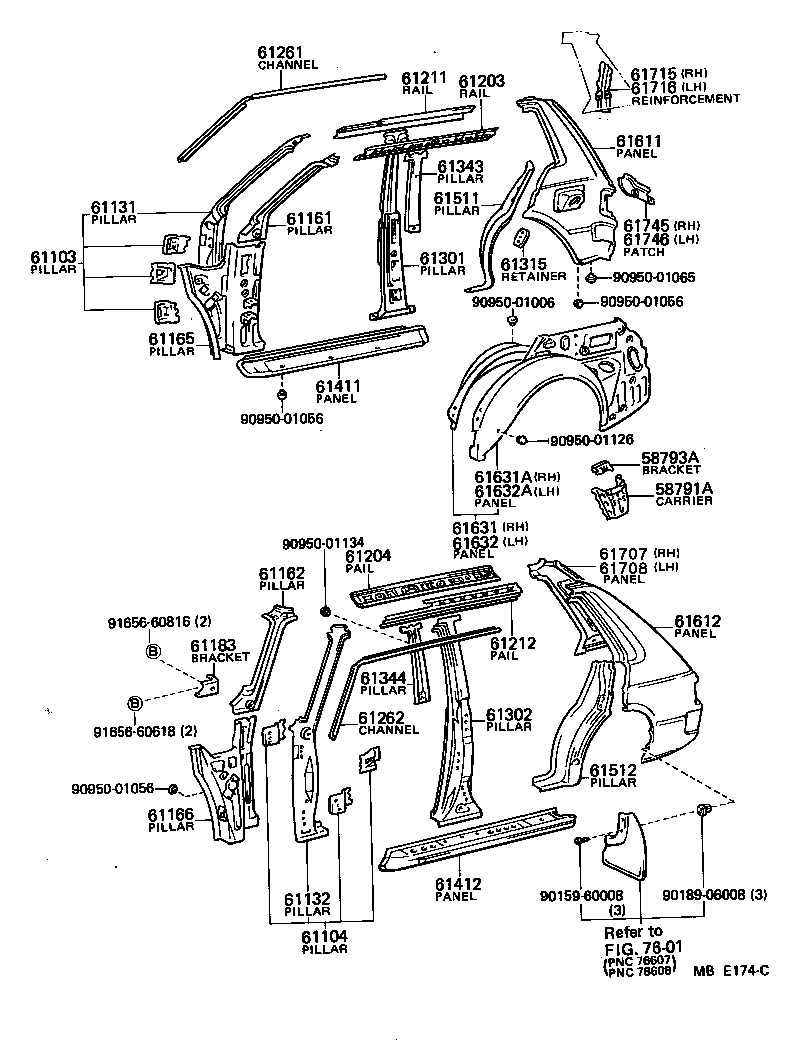

KP61L-PHMDS (1982)
Toyota Starlet
(8208- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58791A - CARRIER, JACK | ||||
| 58791-10020 |
KP6#..SED |
1 | ||
| 58793A - BRACKET, JACK CARRIER | ||||
| 58793-10020 |
KP6#..SED |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61027-10010 |
KP6# |
1 | ||
| 61027-10011 |
KP6# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61028-10010 |
KP6# |
1 | ||
| 61028-10011 |
KP6# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-10101 |
KP6# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-10091 |
KP6# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-10040 |
KP6# |
1 | ||
| 61021-10020 |
KP6# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-10040 |
KP6# |
1 | ||
| 61022-10010 |
KP6# |
1 | ||
| 61165 - PILLAR, FRONT BODY LOWER INNER, RH | ||||
| 61023-10031 |
KP6#..LHD |
1 | ||
| 61023-10030 |
KP6#..LHD |
1 | ||
| 61166 - PILLAR, FRONT BODY LOWER INNER, LH | ||||
| 61024-10030 |
KP6#..LHD |
1 | ||
| 61024-10032 |
KP6#..LHD..GEN |
1 | ||
| 61183 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61183-10020 |
KP6# RH |
1 | ||
| 61184-10010 |
KP6# LH |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-10050 |
KP6#..5D |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-10040 |
KP6#..5D |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-10050 |
KP6#..5D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-10040 |
KP6#..5D |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-10040 |
KP6#..SED |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-10040 |
KP6#..SED |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-10030 |
KP6#..4D,5D |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-10030 |
KP6#..4D,5D |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-10030 |
KP6# |
2 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-10020 |
KP6#..4D,5D |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-10020 |
KP6#..4D,5D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-10110 |
KP6#..4D,5D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-10110 |
KP6#..4D,5D |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-10020 |
KP6#..5D |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-10020 |
KP6#..5D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-10902 |
KP6#..5D |
1 | ||
| 61601-10915 |
KP6#..5D..GEN |
1 | ||
| 61601-10915 |
KP6#..5D |
1 | ||
| 61601-10916 |
KP6#..5D *GIS |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-10903 |
KP6#..5D |
1 | ||
| 61602-10916 |
KP6#..5D *GIS |
1 | ||
| 61602-10915 |
KP6#..5D..GEN |
1 | ||
| 61602-10915 |
KP6#..5D |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61607-10900 |
KP6#..SED |
1 | ||
| 61617-10900 |
KP6#..SED..GEN |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61617-10051 |
KP6#..SED..GEN |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61608-10908 |
KP6#..SED |
1 | ||
| 61618-10900 |
KP6#..SED..GEN |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61618-10051 |
KP6#..SED..GEN |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61731-10904 |
KP6#..5D W/O *PT |
1 | ||
| 61731-10905 |
KP6#..5D W/*PT |
1 | ||
| 61703-10906 |
KP6#..5D |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61732-10904 |
KP6#..5D W/O *PT |
1 | ||
| 61732-10905 |
KP6#..5D W/*PT |
1 | ||
| 61704-10906 |
KP6#..5D |
1 | ||
| 61715 - REINFORCEMENT, ROOF SIDE, INNER REAR RH | ||||
| 61737-10031 |
KP6#..5D |
1 | ||
| 61737-10030 |
KP6#..5D |
1 | ||
| 61716 - REINFORCEMENT, ROOF SIDE, INNER REAR LH | ||||
| 61738-10020 |
KP6#..5D |
1 | ||
| 61738-10021 |
KP6#..5D |
1 | ||
| 61745 - PATCH, BACK DOOR OPENING, LOWER RH | ||||
| 61745-10010 |
KP6#..SED |
1 | ||
| 61745-10011 |
KP6#..SED |
1 | ||
| 61746 - PATCH, BACK DOOR OPENING, LOWER LH | ||||
| 61746-10011 |
KP6#..SED |
1 | ||
| 61746-10010 |
KP6#..SED |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90189-06008 | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01065 | ||||
| 90950-01126 | ||||
| 90950-01134 | ||||
| 91656-60618 | ||||
| 91656-60816 | ||||
| Linked diagrams | ||||
| 7601 | ||||
