KP61L-PHMDS (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )4K..GEN

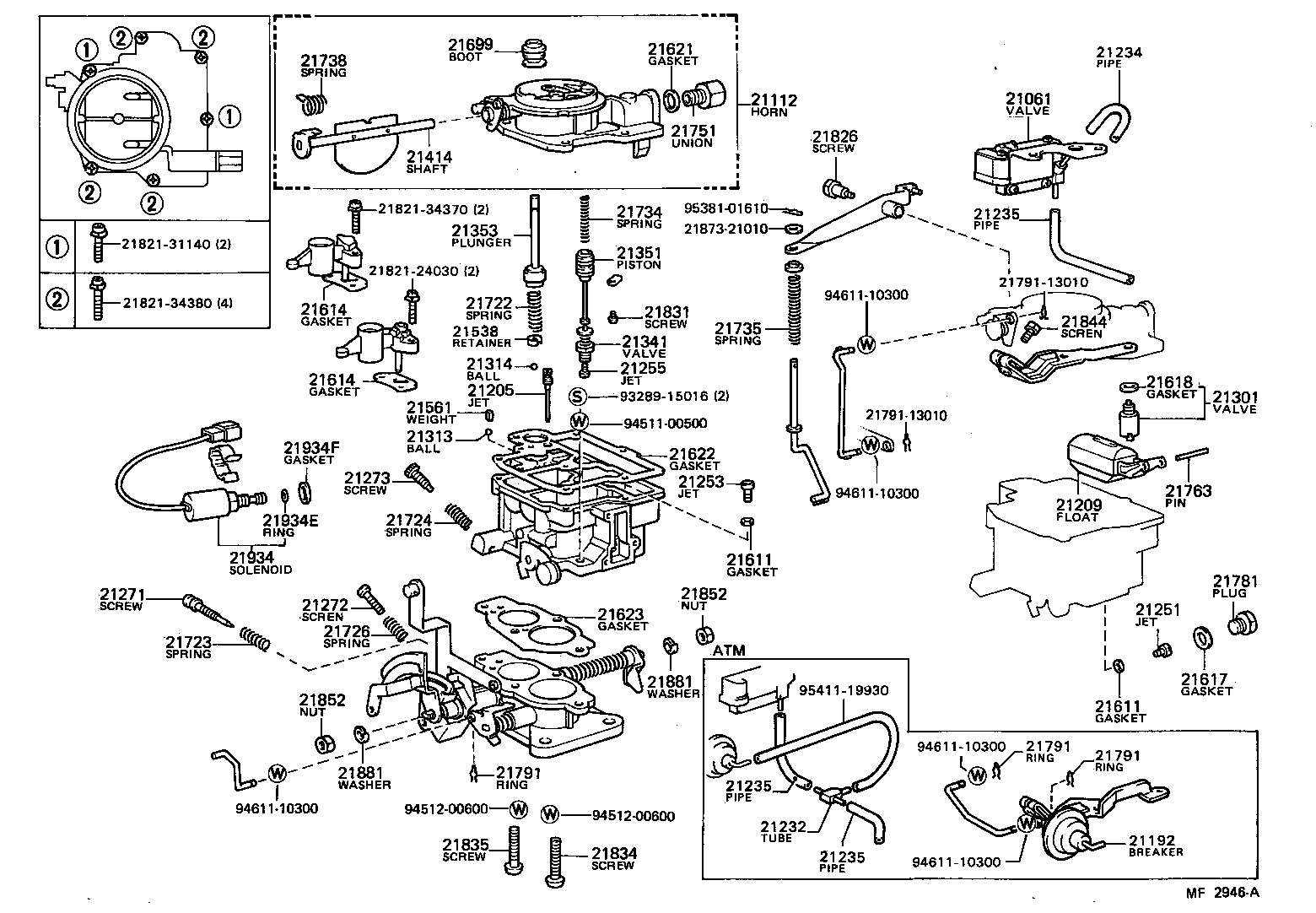

Click highlighted areas on diagram

diagram 21061 21112 21192 21205 21209 21232 21234 21235 21235 21235 21251 21253 21255 21271 21272 21273 21301 21313 21314 21341 21351 21353 21414 21538 21561 21611 21611 21614 21614 21617 21618 21621 21622 21623 21699 21722 21723 21724 21726 21734 21735 21738 21751 21763 21781 21791 21791 21791 2179113010 2179113010 2182124030 2182131140 2182134370 2182134380 21826 21831 21834 21835 21844 21852 21852 2187321010 21881 21881 21934 21934E 21934F 9328915016 9451100500 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110300 9538101610 9541119930
Part # Description Qty Price
21061 - VALVE SUB-ASSY, THERMOSTATIC
21061-13060

4K..KP61..GEN

 1
21112 - HORN, AIR
21112-13150

4K..KP61..MTM..GEN

 1
21205 - JET SUB-ASSY, SLOW
21205-13080

4K..KP61..GEN

 1
21209 - FLOAT SUB-ASSY
21209-24480

4K..KP61..GEN

 1
21234 - PIPE OR HOSE
21234-13150

2K,4K..KP6#..GEN

 1
21251 - JET, 1ST MAIN
90999-41102

4K..KP61..GEN

 1
21253 - JET, 2ND MAIN
90999-42168

4K..KP61..GEN

 1
21255 - JET, POWER
90999-43075

4K..KP61..GEN

ID=0.75

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21273-50010

4K..KP61..GEN

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-13390

4K#..KP61

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-13080

4K..KP61..GEN

 1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-11020

2K,3K#,4K#..KP6#

 1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-60010

2K,3K#,4K#..KP6#

 1
21341 - VALVE, POWER
21341-24030

2K,3K#,4K#..KP6#

 1
21351 - PISTON, POWER
21351-33080

4K..KP61..GEN

 1
21353 - PLUNGER, PUMP
21305-22011

2K,3K#,4K#..KP6#

 1
21414 - SHAFT, CHOKE
21054-24010

4K..KP61..MTM..GEN

 1
21538 - RETAINER, BALL CHECK
21538-31010

2K,3K#,4K#..KP6#

 1
21561 - WEIGHT, PUMP DISCHARGE
21561-22010

2K,3K#,4K#..KP6#

 1
21611 - GASKET, MAIN JET
21611-22010

2K,3K#,4K#..KP6#

 2
21611 - GASKET, MAIN JET
21611-22010

2K,3K#,4K#..KP6#

 2
21614 - GASKET, VENTURI
21614-22010

4K..KP61..GEN

 2
21614 - GASKET, VENTURI
21614-22010

4K..KP61..GEN

 2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

2K,3K#,4K#..KP6#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

2K,3K#,4K#..KP6#

 1
21622 - GASKET, AIR HORN
21622-24440

4K..KP61..GEN

 1
21623 - GASKET, BODY FLANGE
21623-24300

4K..KP61..GEN

 1
21722 - SPRING, PUMP DAMPING
21722-22010

2K,3K#,4K#..KP6#

 1
21723 - SPRING, IDLE ADJUSTING
21723-21030

2K,3K#,4K#..KP6#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-40010

4K..KP61..GEN

 1
21734 - SPRING, POWER PISTON
21734-24500

4K..KP61..GEN

 1
21735 - SPRING, PUMP ARM
21735-22010

2K,4K..KP60,61

 1
21738 - SPRING, CHOKE VALVE RELIEF
21738-24030

4K..KP61..MTM..GEN

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-30020

2K,3K#,4K#..KP6#

 1
21826 - SCREW, PUMP ARM SET
21826-31012

2K,3K#,4K#..KP6#

 1
21831 - SCREW, POWER PISTON STOP
21842-33010

2K,4K#..KP60,61

 1
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834-31010

2K,3K#,4K#..KP6#

 1
21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21835-40010

2K,3K#,4K#..KP6#

 1
21852 - NUT, THROTTLE LEVER SET
21852-30010

2K,3K#,4K#..KP6#

 2
21852 - NUT, THROTTLE LEVER SET
21852-30010

2K,3K#,4K#..KP6#

 2
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

2K,3K#,4K#..KP6#

 2
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

2K,3K#,4K#..KP6#

 2
21934 - SOLENOID, THROTTLE VALVE
21062-24360

4K..KP61..GEN

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

2K,3K#,4K#..KP6#

 1
21934F - GASKET
21649-38010

2K,4K#..KP6#

 1
21617-10010

2K,3K#,4K#..KP6#

 1
Common parts
21791-13010
21821-24030
21821-31140
21821-34370
21821-34380
21873-21010
93289-15016
94511-00500
94512-00600
94611-10300
95381-01610
95411-19930
