KP61L-PHMDS (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )2K,4K..GEN

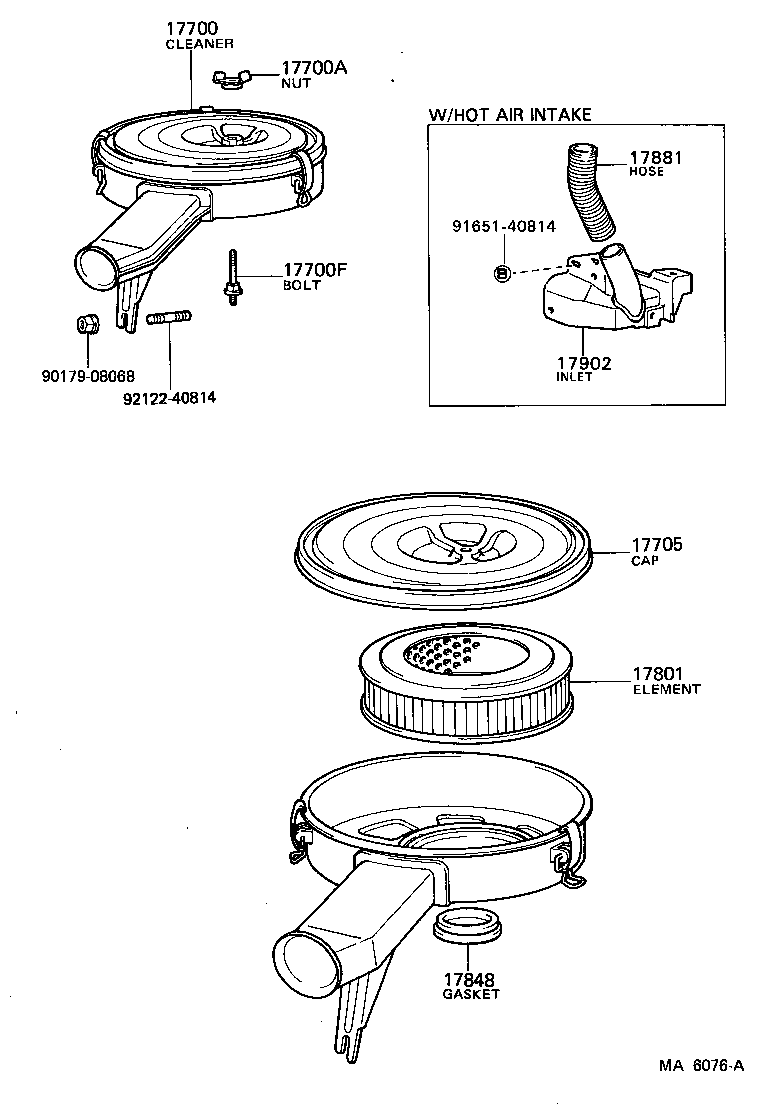

Click highlighted areas on diagram

diagram 17700 17700A 17700F 17705 17801 17848 17881 17902 9017908068 9165140814 9212240814
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-13250

2K,4K..KP6#..GEN

 1
17700-13280

2K,4K..KP6#..GEN

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2K,4K#..KP6#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06142

2K,4K#..KP6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13011

4K..KP61..GEN

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13020

2K,4K..KP6#..GEN

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-13010

2K,4K#..KP6#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-26020

2K,4K..KP6#..GEN

W/HOT AIR INTAKE

 1
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17167-13040

4K..KP61..GEN

W/HOT AIR INTAKE

 1
Common parts
90179-08068
91651-40814
92122-40814
