KP61L-PHKDSW (1982)
Toyota Starlet
Production
Aug 1982
-
Sep 1984
Engine
4K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )LHD

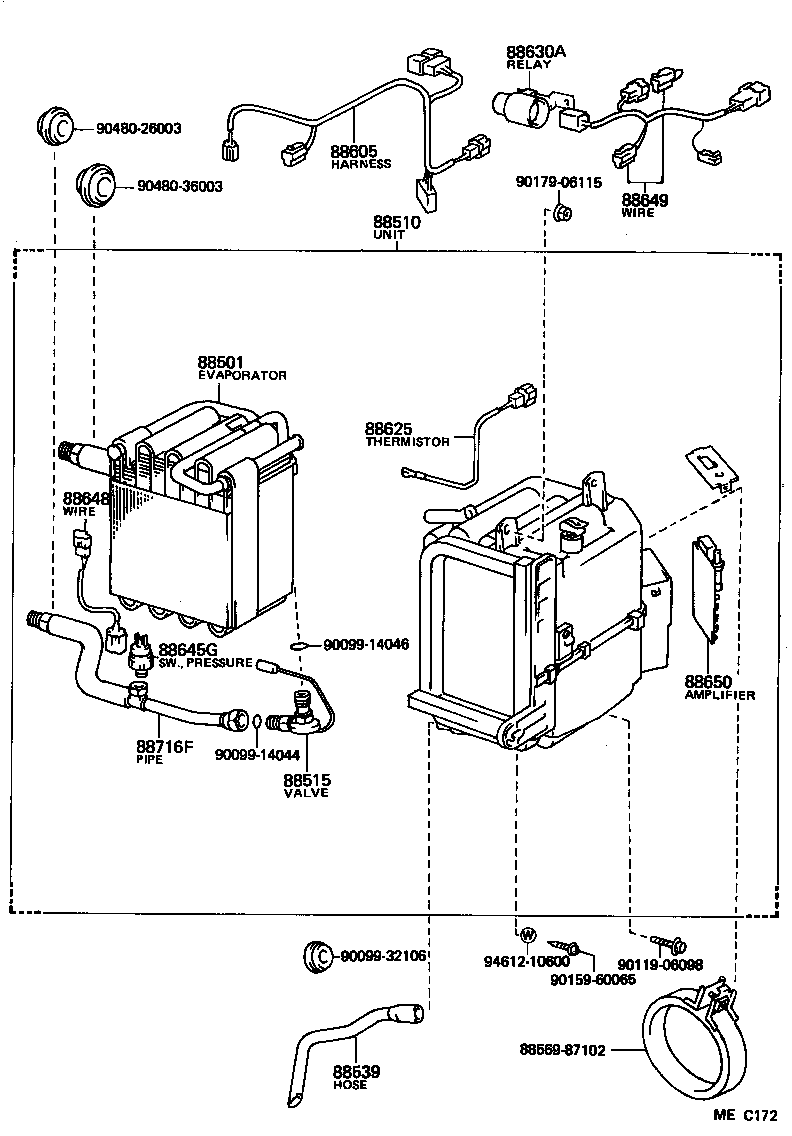

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-10060 |
KP61..LHD..5D..EUG |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-10100 |
KP61..LHD..5D..EUG W/BOOST VENTILATOR |
1 | ||
| 88510-10080 |
KP61..LHD..5D..EUG |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
KP61..LHD..5D..EUG |
1 | ||
| 88515-10030 |
KP61..LHD..5D..EUG W/BOOST VENTILATOR |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-10050 |
KP61..LHD..5D..EUG |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
KP61..LHD..5D..EUG W/BOOST VENTILATOR |
1 | ||
| 88625-12070 |
KP61..LHD..5D..EUG |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-10030 |
KP61..LHD..5D..EUG |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-12020 |
KP61..LHD..5D..EUG |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-10160 |
KP61..LHD..5D..EUG |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88648-10200 |
KP61..LHD..5D..EUG |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16010 |
KP61..LHD..5D..EUG W/BOOST VENTILATOR |
1 | ||
| 88650-10030 |
KP61..LHD..5D..EUG |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-10320 |
KP61..LHD..5D..EUG |
1 | ||
| Common parts | ||||
| 88569-87102 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90099-32106 | ||||
| 90119-06098 | ||||
| 90159-60065 | ||||
| 90179-06115 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 94612-10600 | ||||
