KP61L-PHKDSW (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )SED

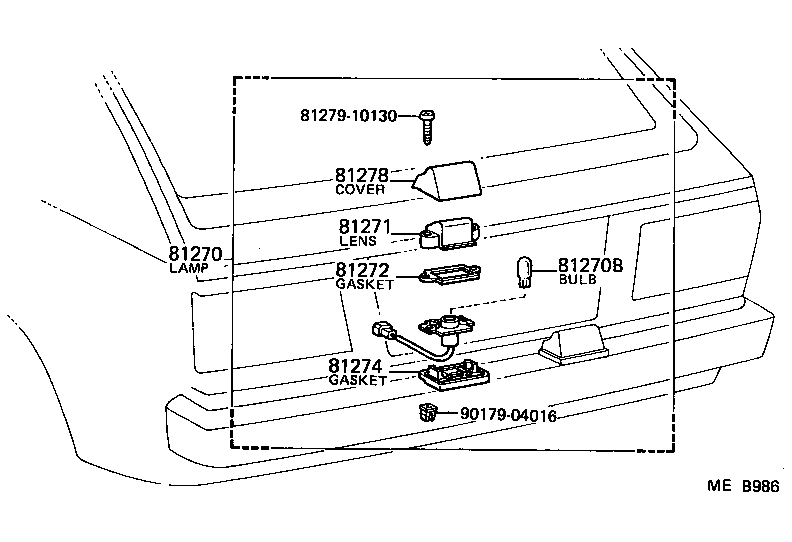

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81274 81278 8127910130 9017904016
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-80001

KP6#..SED

 2
81270-19445

KP6#..SED

BLACK

 2
81270-19435

KP6#..SED

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

KP6#..SED

12V 5W,12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10080

KP6#..SED

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81272-10080

KP6#..SED

 2
81274-22110

KP6#..SED

 2
81278 - COVER, LICENSE PLATE LAMP
81276-10080

KP6#..SED

 2
81276-10100

KP6#..SED

BLACK

 2
Common parts
81279-10130
90179-04016
