KP61L-PHKDSW (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

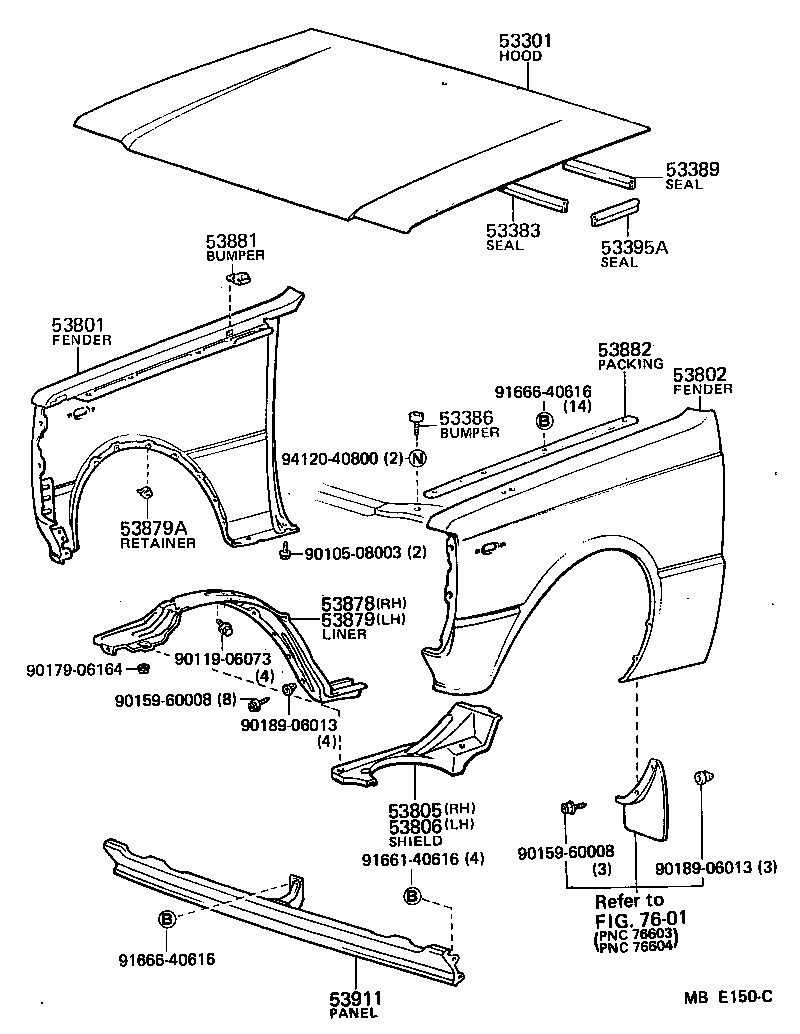

Click highlighted areas on diagram

diagram 53301 53383 53386 53389 53395A 53801 53802 53805 53806 53878 53879 53879A 53881 53882 53911 7601 9010508003 9011906073 9015960008 9015960008 9017906164 9018906013 9018906013 9166140616 9166640616 9166640616 9412040800
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-10150

KP6#

 1
53301-10191

KP6#..EUR

 1
53383 - SEAL, HOOD TO COWL TOP
53383-10011

KP6#

 1
53386 - BUMPER, HOOD, REAR
53382-20011

KP6#

 2
53389 - SEAL, HOOD TO COWL TOP SIDE
53389-10011

KP6#

 2
53389-10020

KP6#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-10290

KP6#

W/O MIRROR HOLE

 1
53801-10292

KP6#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-10340

KP6#

W/O MIRROR HOLE

 1
53802-10480

KP6#..SED..EUR

W/ANTENNA HOLE

 1
53802-10342

KP6#

W/O ANTENNA HOLE

 1
53878 - LINER, FRONT FENDER, RH
53875-10010

KP6#

 1
53879 - LINER, FRONT FENDER, LH
53876-10010

KP6#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-10010

KP6#

 8
53881 - BUMPER, FENDER TO HOOD
53387-10010

KP6#

LH

 1
53384-10040

KP6#

RH

 1
53882 - PACKING, FRONT FENDER MAIN
53882-10040

KP6#

 2
53882-10042

KP6#

 2
53911 - PANEL, FRONT VALANCE
53901-10020

KP6#

 1
53902-10031

KP6#

 1
Common parts
90105-08003
90119-06073
90159-60008
90179-06164
90189-06013
91661-40616
91666-40616
94120-40800
Linked diagrams
7601
