KP61L-PHKDSW (1982)
Toyota Starlet
Production
Aug 1982
-
Sep 1984
Engine
4K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8312- )4K..EUG

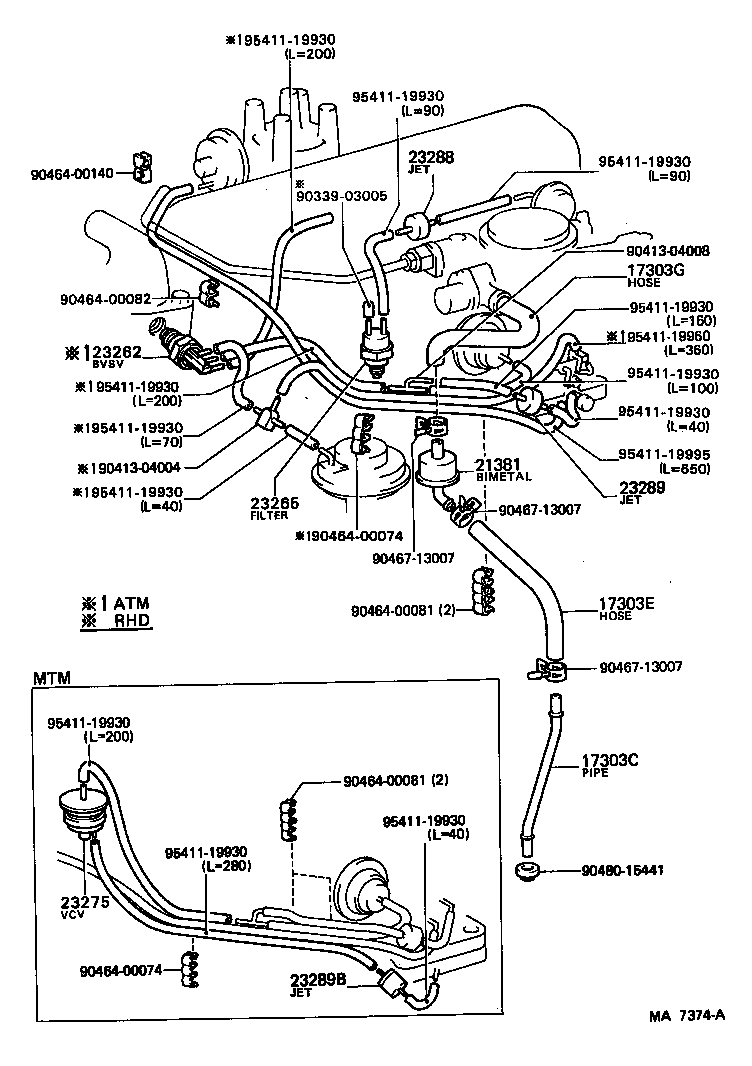

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-13030 |
4K#..KP61..EUR |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4K..KP61..MTM..EUG |
1 | ||
| 90917-11024 |
4K..KP61..MTM..EUG |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03126 |
4K..KP61..MTM..EUG |
1 | ||
| 90925-03138 |
4K..KP61..MTM..EUG |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04005 |
4K..KP61..EUG |
1 | ||
| 23289B - JET, NO.3 | ||||
| 90925-04018 |
4K..KP61..MTM..EUG |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04008 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00140 | ||||
| 90467-13007 | ||||
| 90480-15441 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
