KP61L-PHHDS (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4K
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )3FC

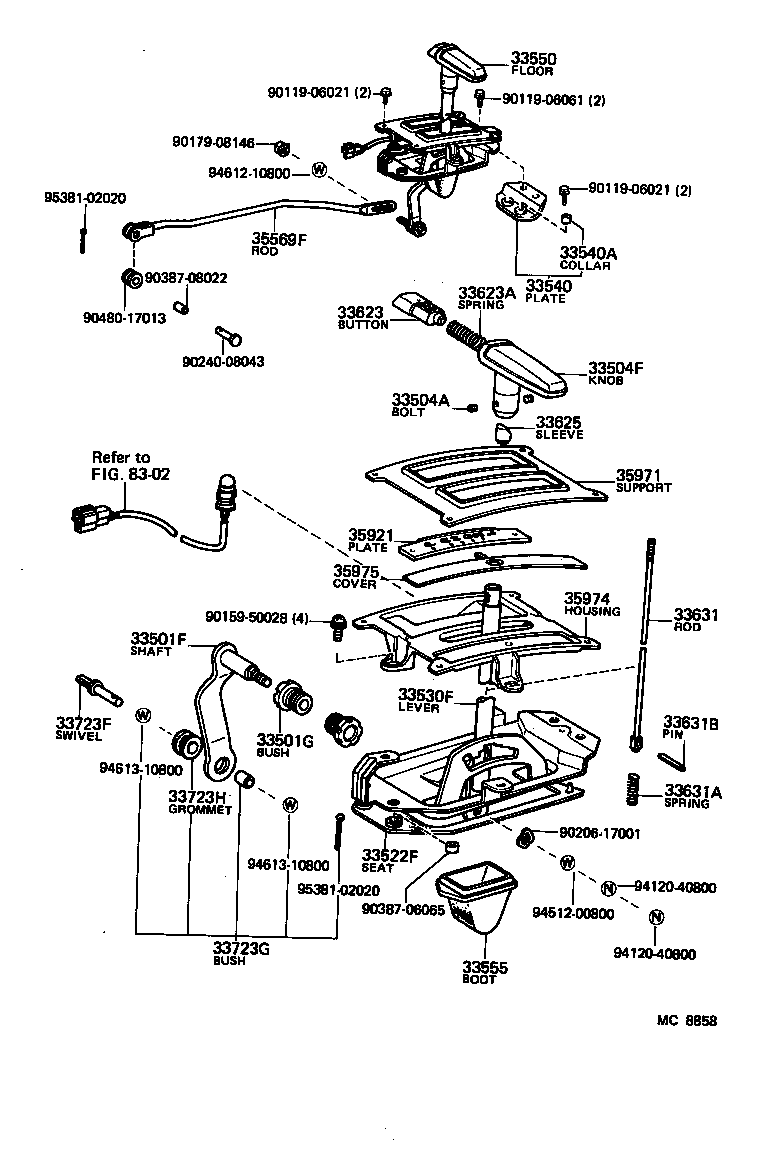

Click highlighted areas on diagram

diagram 33501F 33501G 33504A 33504F 33522F 33530F 33540 33540A 33550 33555 33623 33623A 33625 33631 33631A 33631B 33723F 33723G 33723H 35569F 35921 35971 35974 35975 8302 9011906021 9011906021 9011906061 9015950028 9017908146 9020617001 9024008043 9038706065 9038708022 9048017013 9412040800 9412040800 9451200800 9461210800 9461310800 9461310800 9538102020 9538102020
Part # Description Qty Price
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501-10070

KP61..3FC

 1
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90149-40004

KP61..3FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-1211001

KP61..3FC

BLACK,BLACK

 1
33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)
33522-10030

KP61..3FC

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-10070

KP61..LHD..3FC

 1
33503-10071

KP61..LHD..3FC

 1
33540 - PLATE ASSY, SHIFT LEVER
33540-10050

KP61..3FC

 1
33540A - COLLAR (FOR SHIFT LEVER PLATE)
90387-06065

KP61..3FC

 2
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-10121

KP61..LHD..3FC

 1
33550-10120

KP61..LHD..3FC

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-22060

KP61..3FC

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

KP61..3FC

 1
33631 - ROD, DETENT
33631-10040

KP61..3FC

 1
35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT)
33702-10030

KP61..3FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-10060

KP61..LHD..3FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-10040

KP61..3FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12051

KP61..3FC

 1
Common parts
90119-06021
90119-06061
90159-50028
90179-08146
90206-17001
90240-08043
90387-06065
90387-08022
90480-17013
94120-40800
94512-00800
94612-10800
94613-10800
95381-02020
Linked diagrams
8302
