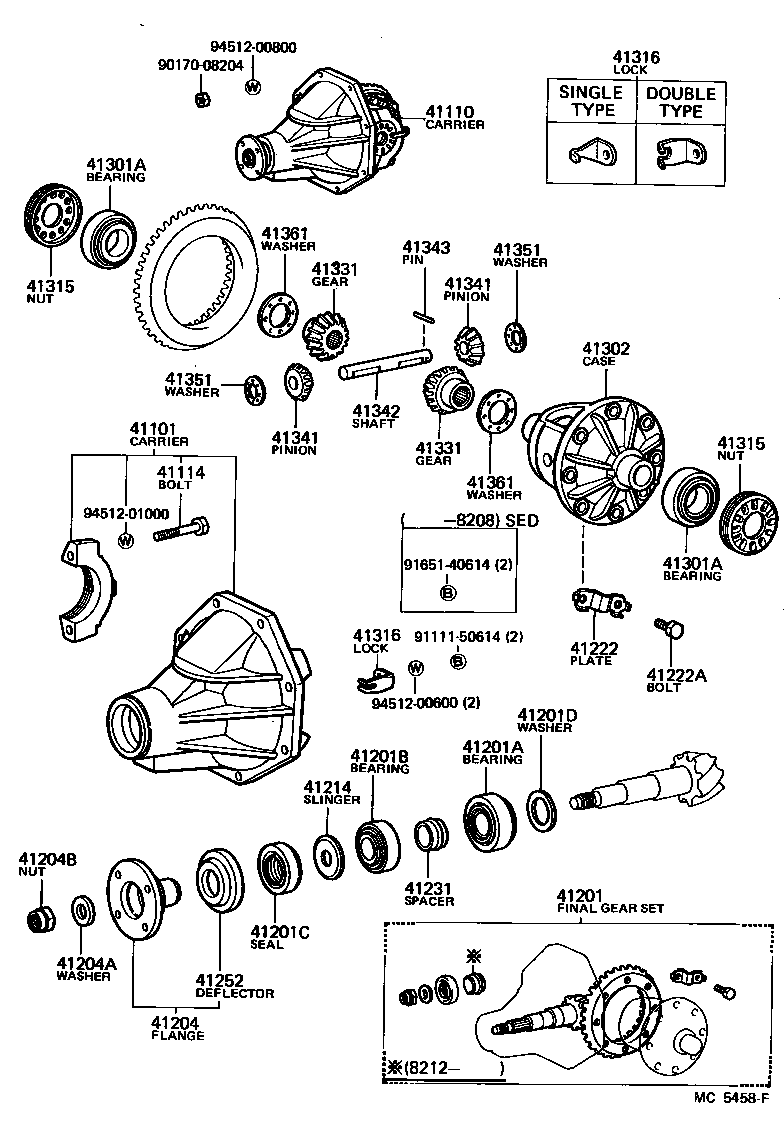

KP61L-PGMRSW (1981)
Toyota Starlet
(7802-8208)4D ; (7802-8208)4D ; (8108-8208)KP61..SED..MTM..EUG ; (8108-8208)KP61..S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-12030 |
KP61..SED..MTM..EUG |
1 | ||
| 41101-10050 |
KP6#..SED |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-12180 |
KP61..SED..MTM..EUG R=43:12=3.583,*AXC=U372 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-10128 |
KP6# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-19415 |
KP61..SED..MTM..EUG N=43:12 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-30069 |
KP6# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-25047 |
KP6# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-35131 |
KP6# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-30241 |
KP6# T=2.53-2.55,T=2.53-2.55 |
1 | ||
| 90201-30236 |
KP6# T=2.38-2.40 |
1 | ||
| 90201-30235 |
KP6# T=2.35-2.37 |
1 | ||
| 90201-30539 |
KP6# T=2.23-2.25,T=2.23-2.25 |
1 | ||
| 90201-30237 |
KP6# T=2.41-2.43,T=2.41-2.43 |
1 | ||
| 90201-30238 |
KP6# T=2.44-2.46,T=2.44-2.46 |
1 | ||
| 90201-30234 |
KP6# T=2.32-2.34 |
1 | ||
| 90201-30542 |
KP6# T=2.59-2.61,T=2.59-2.61 |
1 | ||
| 90201-30242 |
KP6# T=2.56-2.58,T=2.56-2.58 |
1 | ||
| 90201-30541 |
KP6# T=2.29-2.31,T=2.29-2.31 |
1 | ||
| 90201-30239 |
KP6# T=2.47-2.49,T=2.47-2.49 |
1 | ||
| 90201-30543 |
KP6# T=2.62-2.64,T=2.62-2.64 |
1 | ||
| 90201-30544 |
KP6# T=2.65-2.67,T=2.65-2.67 |
1 | ||
| 90201-30540 |
KP6# T=2.26-2.28,T=2.26-2.28 |
1 | ||
| 90201-30240 |
KP6# T=2.50-2.52,T=2.50-2.52 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-12020 |
KP61..SED..MTM..EUG |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-16244 |
KP61..SED..MTM..EUG |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-16052 |
KP61..SED..MTM..EUG |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-12020 |
KP6# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-12030 |
KP61..SED..MTM..EUG |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11365 |
KP6# |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-12020 |
KP6# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-12020 |
KP6# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34020 |
KP61..SED..MTM..EUG |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34020 |
KP61..SED..MTM..EUG |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-12030 |
KP61..SED..MTM..EUG |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12020 |
KP61..SED..MTM..EUG |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12020 |
KP61..SED..MTM..EUG |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KP61..SED..MTM..EUG SINGLE TYPE |
2 | ||
| 41317-12010 |
KP61..SED..MTM..EUG DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KP61..SED..MTM..EUG SINGLE TYPE |
2 | ||
| 41317-12010 |
KP61..SED..MTM..EUG DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20011 |
KP61..SED..MTM..EUG |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20011 |
KP61..SED..MTM..EUG |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20011 |
KP61..SED..MTM..EUG |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20011 |
KP61..SED..MTM..EUG |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-12010 |
KP61..SED..MTM..EUG |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04053 |
KP6# |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
KP61..SED..MTM..EUG |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
KP61..SED..MTM..EUG |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
KP61..SED..MTM..EUG T=1.50,T=1.48-1.52 |
2 | ||
| 41361-12040 |
KP61..SED..MTM..EUG T=1.65,T=1.63-1.67 |
2 | ||
| 41361-12020 |
KP61..SED..MTM..EUG T=1.55,T=1.53-1.57 |
2 | ||
| 41361-12030 |
KP61..SED..MTM..EUG T=1.60,T=1.58-1.62 |
2 | ||
| 41361-12060 |
KP61..SED..MTM..EUG T=1.75,T=1.73-1.77 |
2 | ||
| 41361-12050 |
KP61..SED..MTM..EUG T=1.70,T=1.68-1.72 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
KP61..SED..MTM..EUG T=1.50,T=1.48-1.52 |
2 | ||
| 41361-12040 |
KP61..SED..MTM..EUG T=1.65,T=1.63-1.67 |
2 | ||
| 41361-12020 |
KP61..SED..MTM..EUG T=1.55,T=1.53-1.57 |
2 | ||
| 41361-12030 |
KP61..SED..MTM..EUG T=1.60,T=1.58-1.62 |
2 | ||
| 41361-12060 |
KP61..SED..MTM..EUG T=1.75,T=1.73-1.77 |
2 | ||
| 41361-12050 |
KP61..SED..MTM..EUG T=1.70,T=1.68-1.72 |
2 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91111-50614 | ||||
| 91651-40614 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
