KP61L-PGMRSW (1981)

Toyota Starlet

Production Aug 1981 - Aug 1982
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4K#

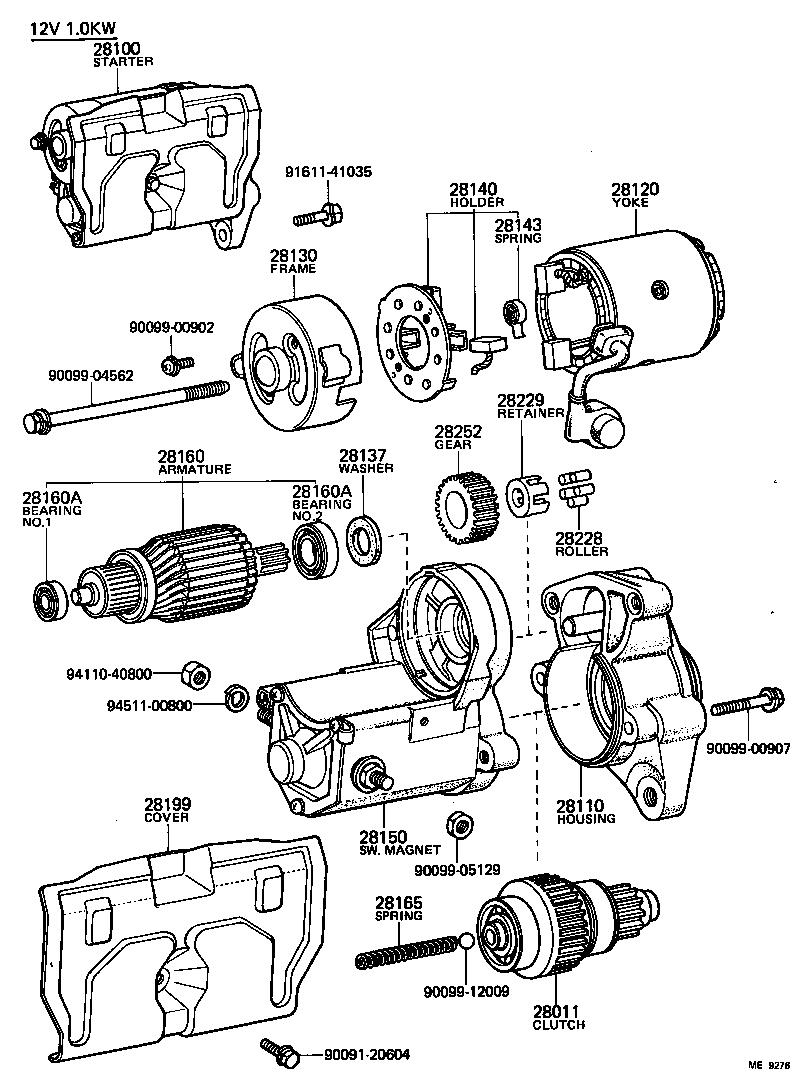

Click highlighted areas on diagram

diagram 28011 28100 28110 28120 28130 28137 28140 28143 28150 28160 28160A 28160A 28165 28199 28228 28229 28252 9009120604 9009900902 9009900907 9009904562 9009905129 9009912009 9161141035 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

4K#..KP61

12V 1.0KW

 1
28100 - STARTER ASSY
28100-13010

4K#..KP61

12V 1.0KW,12V 1.0KW

 1
28100-24070

2K,3KH,4K..KP6#

12V 0.6KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-13010

4K#..KP61

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-22011

2K,3KH,4K..KP6#

12V 0.6KW

 1
28120-26070

4K#..KP61

12V 1.0KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-13010

4K#..KP61

12V 1.0KW

 1
28137 - WASHER, FELT, STARTER
90099-02323

4K#..KP61

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-22011

2K,3KH,4K..KP6#

12V 0.6KW

 1
28140-26070

4K#..KP61

12V 1.0KW

 1
28143 - SPRING, STARTER BRUSH
90099-17112

4K#..KP61

12V 1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-13011

4K#..KP61

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-22011

2K,3KH,4K..KP6#

12V 0.6KW

 1
28160-26070

4K#..KP61

12V 1.0KW

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

4K#..KP61

12V 1.0KW,NO.1

 1
90099-10113

4K#..KP61

12V 1.0KW,NO.2

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

4K#..KP61

12V 1.0KW,NO.1

 1
90099-10113

4K#..KP61

12V 1.0KW,NO.2

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

4K#..KP61

12V 1.0KW

 1
28199 - COVER, STARTER
28199-13011

4K#..KP61

12V 1.0KW

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

4K#..KP61

12V 1.0KW

 1
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

4K#..KP61

12V 1.0KW

 1
28252 - GEAR, STARTER IDLE
28254-45020

4K#..KP61

12V 1.0KW

 1
Common parts
90091-20604
90099-00902
90099-00907
90099-04562
90099-05129
90099-12009
91611-41035
94110-40800
94511-00800
