KP61L-PGMRSW (1981)

Toyota Starlet

Production Aug 1981 - Aug 1982
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8208)4K#

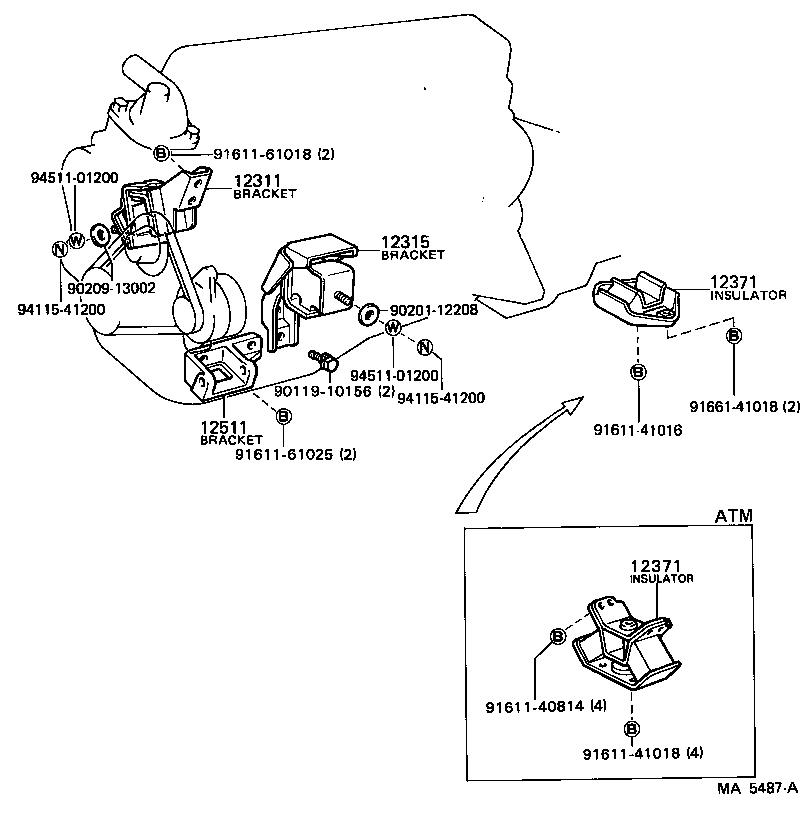

Click highlighted areas on diagram

diagram 12311 12315 12371 12371 12511 9011910156 9020112208 9020913002 9161140814 9161141016 9161141018 9161161018 9161161025 9166141018 9411541200 9411541200 9451101200 9451101200
Part # Description Qty Price
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-13043

2K,3KH,4K#..KP6#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-22016

4K..KP61

12V 30A ALTERNATOR

 1
12511-24011

4K..KP61

W/RR WINDOW *DEF

 1
Common parts
90119-10156
90201-12208
90209-13002
91611-40814
91611-41016
91611-41018
91611-61018
91611-61025
91661-41018
94115-41200
94511-01200
