KP61L-PGKDS (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )3D

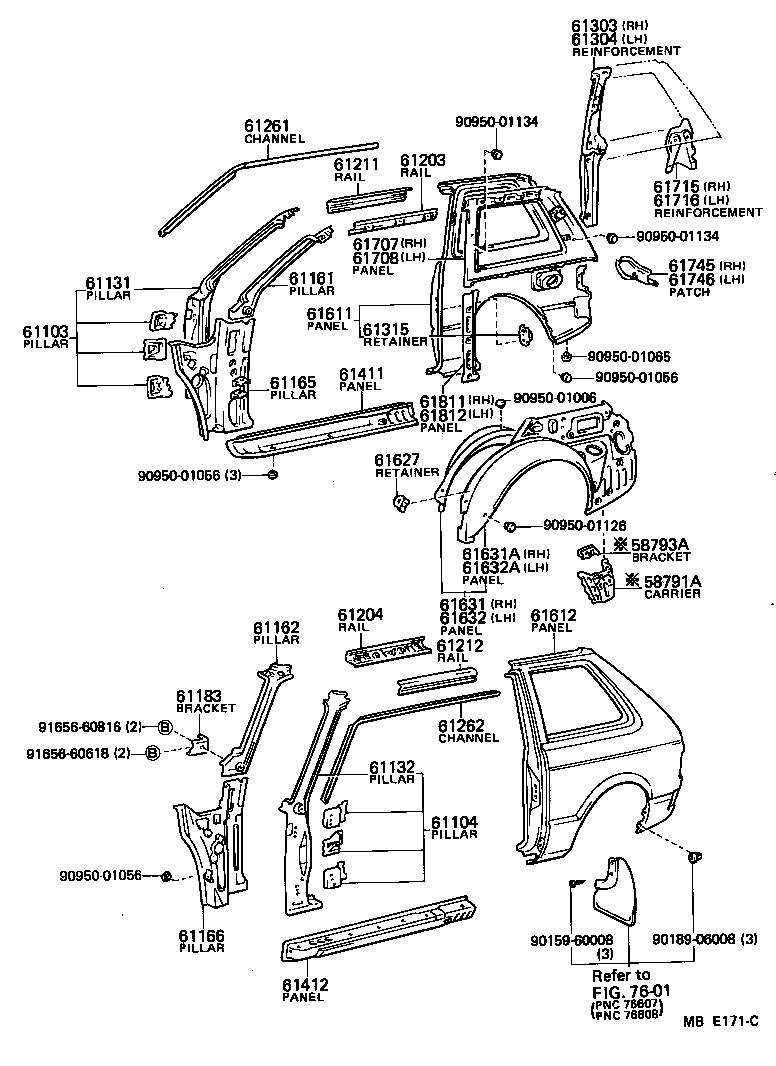

Click highlighted areas on diagram

diagram 58791A 58793A 61103 61104 61131 61132 61161 61162 61165 61166 61183 61203 61204 61211 61212 61261 61262 61303 61304 61315 61411 61412 61611 61612 61627 61631 61631A 61632 61632A 61707 61708 61715 61716 61745 61746 61811 61812 7601 9015960008 9018906008 9095001006 9095001056 9095001056 9095001056 9095001065 9095001126 9095001134 9095001134 9165660618 9165660816
Part # Description Qty Price
58791A - CARRIER, JACK
58791-10020

KP6#..SED

 1
58793A - BRACKET, JACK CARRIER
58793-10020

KP6#..SED

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61027-10010

KP6#

 1
61027-10011

KP6#

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61028-10010

KP6#

 1
61028-10011

KP6#

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-10101

KP6#

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-10091

KP6#

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-10040

KP6#

 1
61021-10020

KP6#

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-10040

KP6#

 1
61022-10010

KP6#

 1
61165 - PILLAR, FRONT BODY LOWER INNER, RH
61023-10031

KP6#..LHD

 1
61023-10030

KP6#..LHD

 1
61166 - PILLAR, FRONT BODY LOWER INNER, LH
61024-10030

KP6#..LHD

 1
61024-10032

KP6#..LHD..GEN

 1
61183 - BRACKET, INSTRUMENT PANEL SIDE
61183-10020

KP6#

RH

 1
61184-10010

KP6#

LH

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61231-10040

KP6#..3D

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61231-10040

KP6#..3D

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-10040

KP6#..3D

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61211-10040

KP6#..3D

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-10040

KP6#..SED

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-10040

KP6#..SED

 1
61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61303-10042

KP6#..3D

 1
61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61304-10032

KP6#..3D

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61309-10030

KP6#

 2
61411 - PANEL, ROCKER, OUTER RH
61401-10010

KP6#..3D

 1
61412 - PANEL, ROCKER, OUTER LH
61402-10010

KP6#..3D

 1
61611 - PANEL, QUARTER, RH
61601-10100

KP6#..3D

 1
61601-10911

KP6#..3D

 1
61612 - PANEL, QUARTER, LH
61602-10090

KP6#..3D

 1
61602-10911

KP6#..3D

 1
61627 - RETAINER, QUARTER TRIM, LOWER
61751-10060

KP6#..3D

 6
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61607-10900

KP6#..SED

 1
61617-10900

KP6#..SED..GEN

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61617-10051

KP6#..SED..GEN

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61608-10908

KP6#..SED

 1
61618-10900

KP6#..SED..GEN

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61618-10051

KP6#..SED..GEN

 1
61707 - PANEL SUB-ASSY, QUARTER, INNER RH
61731-10900

KP6#..3D

W/HINGE,W/O *PT

 1
61731-10902

KP6#..3D

W/O HINGE,*PT

 1
61703-10900

KP6#..3D..DLX..GEN

W/HINGE

 1
61703-10905

KP6#..3D..GEN

W/O HINGE

 1
61708 - PANEL SUB-ASSY, QUARTER, INNER LH
61732-10900

KP6#..3D

W/HINGE,W/O *PT

 1
61732-10902

KP6#..3D

W/O HINGE,*PT

 1
61704-10900

KP6#..3D..DLX..GEN

W/HINGE

 1
61704-10905

KP6#..3D..GEN

W/O HINGE

 1
61715 - REINFORCEMENT, ROOF SIDE, INNER REAR RH
61737-10020

KP6#..3D

 1
61737-10021

KP6#..3D

 1
61716 - REINFORCEMENT, ROOF SIDE, INNER REAR LH
61738-10010

KP6#..3D

 1
61738-10011

KP6#..3D

 1
61745 - PATCH, BACK DOOR OPENING, LOWER RH
61745-10010

KP6#..SED

 1
61745-10011

KP6#..SED

 1
61746 - PATCH, BACK DOOR OPENING, LOWER LH
61746-10011

KP6#..SED

 1
61746-10010

KP6#..SED

 1
61811 - PANEL, QUARTER INSIDE, FRONT RH
61613-10010

KP6#..3D

 1
61812 - PANEL, QUARTER INSIDE, FRONT LH
61614-10010

KP6#..3D

 1
Common parts
90159-60008
90189-06008
90950-01006
90950-01056
90950-01065
90950-01126
90950-01134
91656-60618
91656-60816
Linked diagrams
7601
