KP60RV-PXKRS (1978)
Toyota Starlet
Production
Oct 1978
-
Sep 1984
Engine
2K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7810- )4D

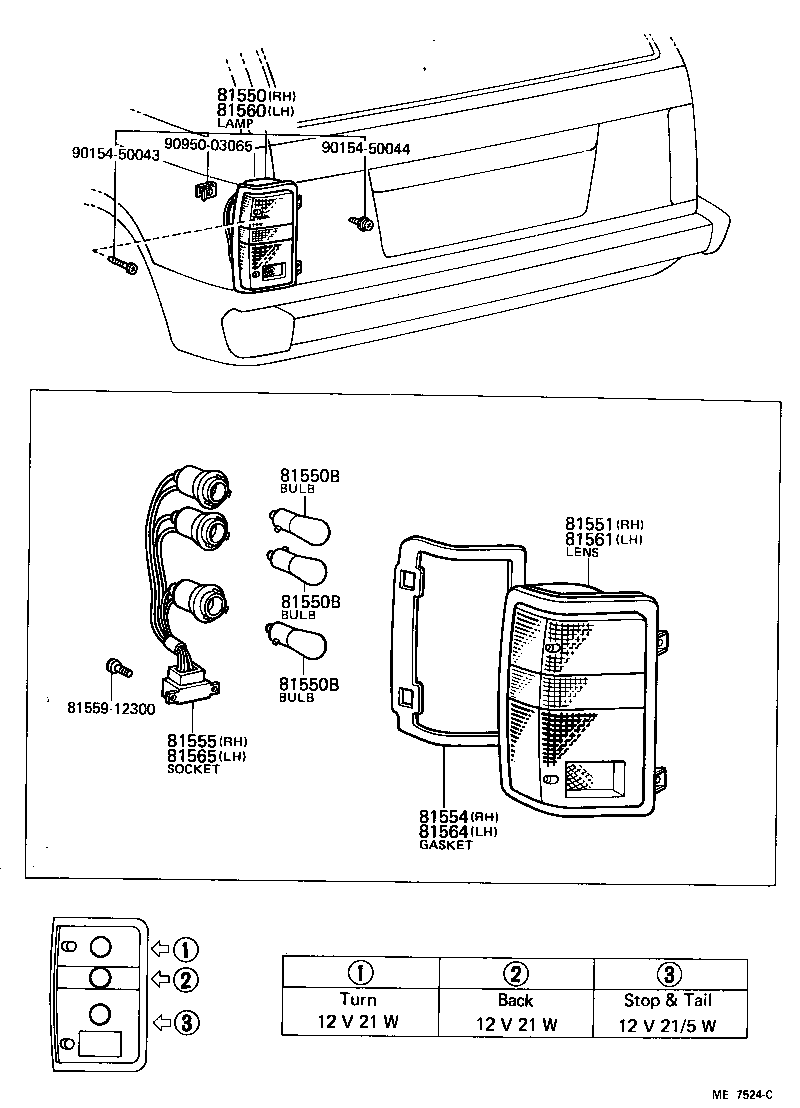

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-80021 |
KP6#..4D |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KP6# 12V 21W,12V 21W |
4 | ||
| 99132-21210 |
KP6# 12V 21/5W,12V 21/5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KP6# 12V 21W,12V 21W |
4 | ||
| 99132-21210 |
KP6# 12V 21/5W,12V 21/5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KP6# 12V 21W,12V 21W |
4 | ||
| 99132-21210 |
KP6# 12V 21/5W,12V 21/5W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81553-96441 |
KP6#..4D |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-96440 |
KP6#..4D |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-96441 |
KP6#..4D |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-80023 |
KP6#..4D |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81563-96441 |
KP6#..4D |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-96440 |
KP6#..4D |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-96441 |
KP6#..4D |
1 | ||
| Common parts | ||||
| 81559-12300 | ||||
| 90154-50043 | ||||
| 90154-50044 | ||||
| 90950-03065 | ||||
