KP60R-PGMRS (1978)

Toyota Starlet

Production Feb 1978 - May 1980
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)

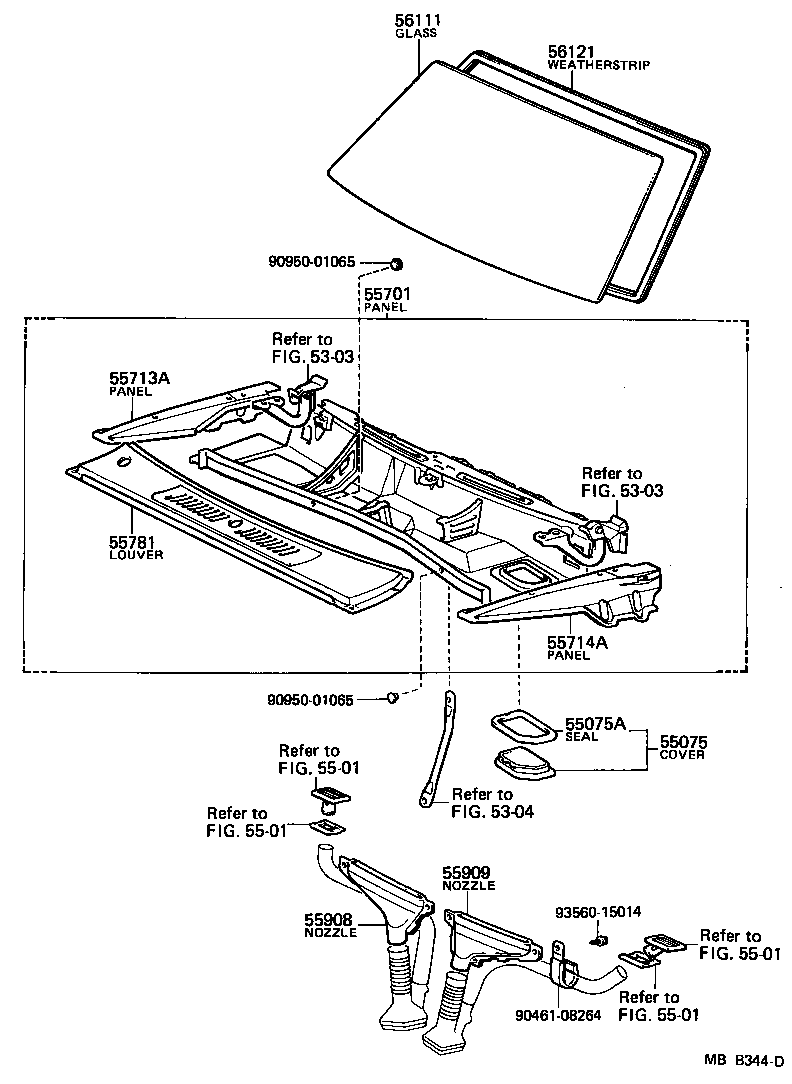

Click highlighted areas on diagram

diagram 5303 5303 5304 5501 5501 5501 5501 55075 55075A 55701 55713A 55714A 55781 55908 55909 56111 56121 9046108264 9095001065 9095001065 9356015014
Part # Description Qty Price
55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55077-10020

KP60,62..RHD..GEN

W/O HEATER

 1
55075A - SEAL, HEATER AIR DUCT HOLE
55794-10040

KP60,62..RHD..GEN

W/O HEATER

 1
55701 - PANEL SUB-ASSY, COWL
55700-10010

KP6#..RHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-10030

KP6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-10020

KP6#

 1
55781 - LOUVER, COWL VENTILATOR
55711-10050

KP6#..RHD

 1
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55091-10030

KP6#

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55092-10010

KP6#

 1
56111 - GLASS, WINDSHIELD
56111-10160

KP6#

*LAM,T=5.7

 1
56111-10140

KP60;KP61,62..RHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG

*TZT,T=5.0

 1
56111-10150

KP60;KP61,62..RHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG

*ZT,T=5.0

 1
56111-10170

KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG

*TL,T=5.7

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-10110

KP6#

W/O MOULDING

 1
56121-10100

KP6#

W/MOULDING

 1
Common parts
90461-08264
90950-01065
93560-15014
Linked diagrams
5303
5304
5501
