KP60L-PHMRSW (1978)

Toyota Starlet

Production Feb 1978 - Aug 1981
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

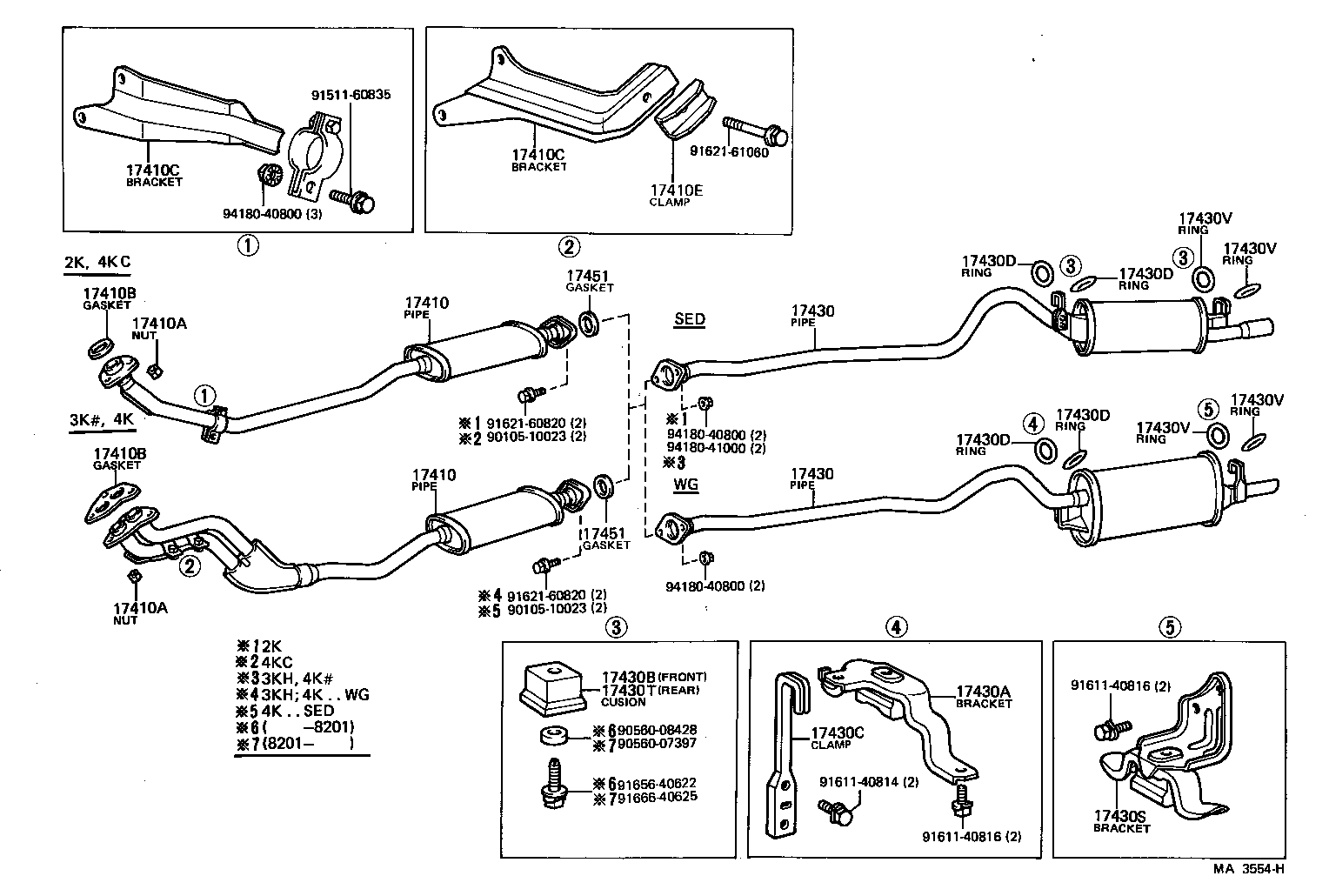

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17410E 17430 17430 17430A 17430B 17430C 17430D 17430D 17430D 17430D 17430S 17430T 17430V 17430V 17430V 17430V 17451 17451 9010510023 9010510023 9056007397 9056008428 9151160835 9161140814 9161140816 9161140816 9162160820 9162160820 9162161060 9165640622 9166640625 9418040800 9418040800 9418040800 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-12040

2K..KP60..EUG

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-12040

2K..KP60..EUG

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

2K,3K#,4K#..KP6#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

2K,3K#,4K#..KP6#

 3
17410B - GASKET, EXHAUST PIPE
90917-06020

2K,4KC..KP60,61

 1
17410B - GASKET, EXHAUST PIPE
90917-06020

2K,4KC..KP60,61

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-12010

2K..KP60

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-12010

2K..KP60

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-12080

2K,3KH..KP6#..SED..EUG

 1
17430-12081

2K,3KH..KP6#..SED..EUG

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-12080

2K,3KH..KP6#..SED..EUG

 1
17430-12081

2K,3KH..KP6#..SED..EUG

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17591-13010

2K,3K#,4K#..KP6#..SED

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

2K,3K#..KP60,62

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

2K,3K#..KP60,62

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

2K,3K#..KP60,62

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

2K,3K#..KP60,62

 2
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-13010

2K,3K#,4K#..KP6#..SED

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2K,3K#..KP60,62

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2K,3K#..KP60,62

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2K,3K#..KP60,62

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2K,3K#..KP60,62

 2
17451 - GASKET, EXHAUST PIPE
90917-06006

2K,3K#..KP60,62

 1
17451 - GASKET, EXHAUST PIPE
90917-06006

2K,3K#..KP60,62

 1
Common parts
90105-10023
90560-07397
90560-08428
91511-60835
91611-40814
91611-40816
91621-60820
91621-61060
91656-40622
91666-40625
94180-40800
94180-41000
