KP60L-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )LHD..MTM

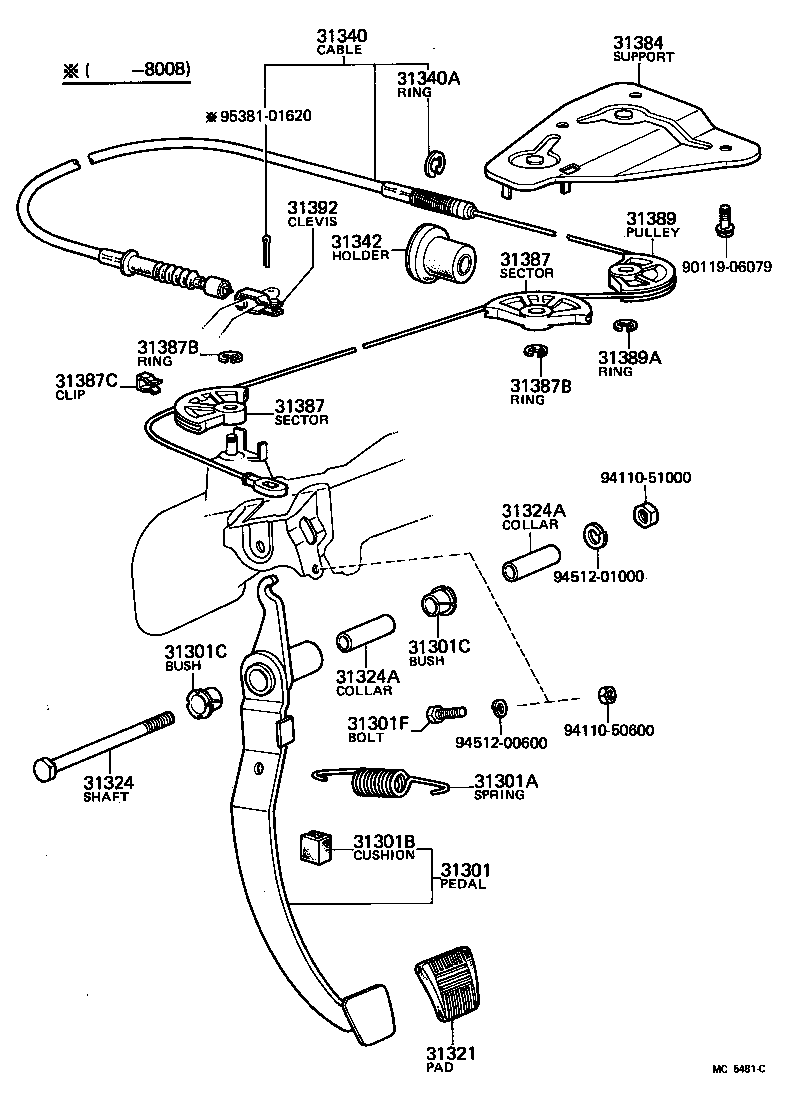

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31324A 31340 31340A 31342 31384 31387 31387 31387B 31387B 31387C 31389 31389A 31392 9011906079 9411050600 9411051000 9451200600 9451201000 9538101620
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-10090

KP6#..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14002

KP6#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KP6#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KP6#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-06400

KP6#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

KP6#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10480

KP6#..LHD..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10021

KP6#..LHD..MTM

 2
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10021

KP6#..LHD..MTM

 2
31340 - CABLE ASSY, CLUTCH RELEASE
31340-19196

KP6#..LHD

 1
31340-19195

KP6#..LHD

 1
31340A - RING, E(FOR CLUTCH RELEASE CABLE)
96160-01200

KP6#..MTM

 1
31342 - HOLDER, CLUTCH CABLE, INNER
31342-12901

KP6#..MTM

 1
31384 - SUPPORT ASSY, CLUTCH RELEASE SECTOR
31039-10030

KP6#..LHD

 1
31039-10031

KP6#..LHD..MTM

 1
31387 - SECTOR, CLUTCH RELEASE
31387-10010

KP6#..LHD

 2
31387 - SECTOR, CLUTCH RELEASE
31387-10010

KP6#..LHD

 2
31387B - RING, E(FOR CLUTCH RELEASE SECTOR)
96160-00800

KP6#..LHD..MTM

 2
31387B - RING, E(FOR CLUTCH RELEASE SECTOR)
96160-00800

KP6#..LHD..MTM

 2
31387C - CLIP(FOR CLUTCH RELEASE SECTOR)
90468-06008

KP6#..LHD..MTM

 2
31389 - PULLEY, CLUTCH RELEASE
31389-10010

KP6#..LHD

 1
31389A - RING, E(FOR CLUTCH RELEASE PULLEY)
96160-00800

KP6#..LHD..MTM

 1
31392 - CLEVIS, CLUTCH CABLE
31392-10010

KP6#..MTM

 1
Common parts
90119-06079
94110-50600
94110-51000
94512-00600
94512-01000
95381-01620
