KP60L-PHMDS (1982)
Toyota Starlet
Production
Aug 1982
-
Sep 1984
Engine
2K
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )LHD

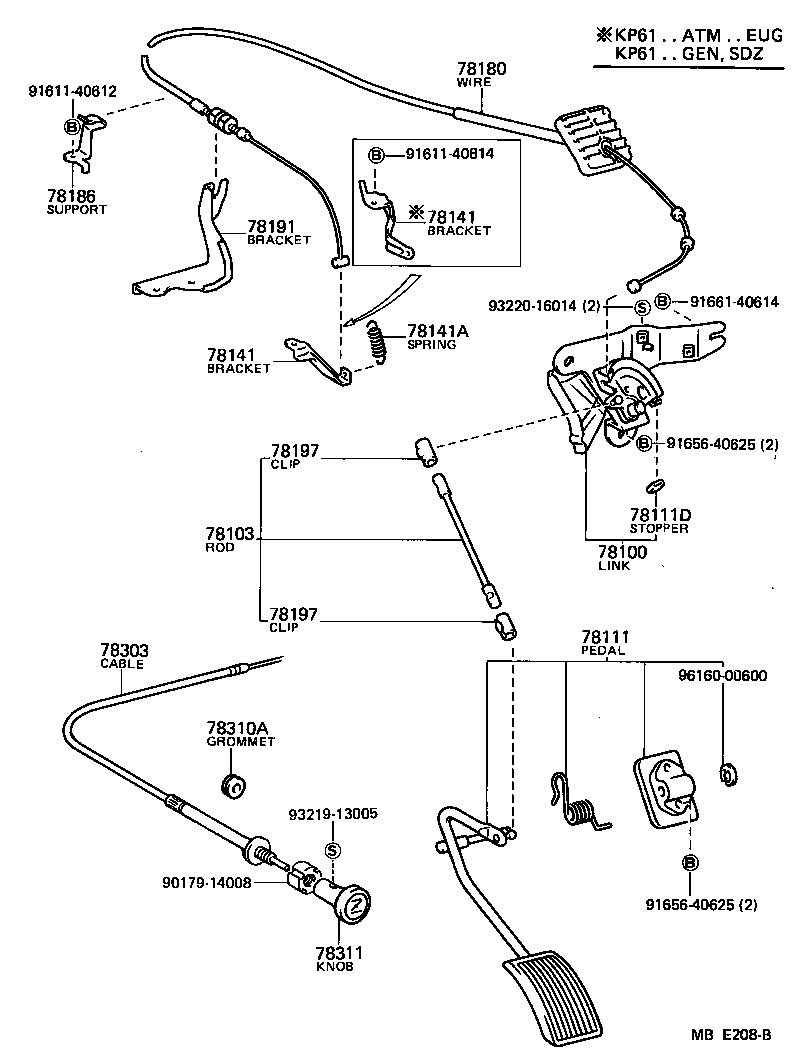

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-10150 |
KP6#..LHD |
1 | ||
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-10020 |
KP6#..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-10020 |
KP6#..LHD |
1 | ||
| 78010-10070 |
KP6#..LHD |
1 | ||
| 78111D - STOPPER (FOR ACCELERATOR PEDAL) | ||||
| 78118-12010 |
KP6#..LHD |
1 | ||
| 78141 - BRACKET, ACCELERATOR WIRE RETURN SPRING | ||||
| 78141-12011 |
KP60 |
1 | ||
| 78141 - BRACKET, ACCELERATOR WIRE RETURN SPRING | ||||
| 78141-12011 |
KP60 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-10180 |
KP6#..LHD |
1 | ||
| 78180-10110 |
KP60,62..LHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-10020 |
KP6# |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-12040 |
KP60,62 |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
KP6#..LHD |
2 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
KP6#..LHD |
2 | ||
| 78303 - CABLE SUB-ASSY, CHOKE CONTROL | ||||
| 78301-10020 |
KP6#..LHD |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-12119 |
KP6# |
1 | ||
| 90480-12119 |
KP6# OD=18 |
1 | ||
| 90480-13009 |
KP6# OD=22 |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78311-10020 |
KP6# |
1 | ||
| Common parts | ||||
| 90179-14008 | ||||
| 91611-40612 | ||||
| 91611-40814 | ||||
| 91656-40625 | ||||
| 91661-40614 | ||||
| 93219-13005 | ||||
| 93220-16014 | ||||
| 96160-00600 | ||||
