KP60L-PHKDSW (1982)
Toyota Starlet
Production
Aug 1982
-
Sep 1984
Engine
2K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )2K..EUG

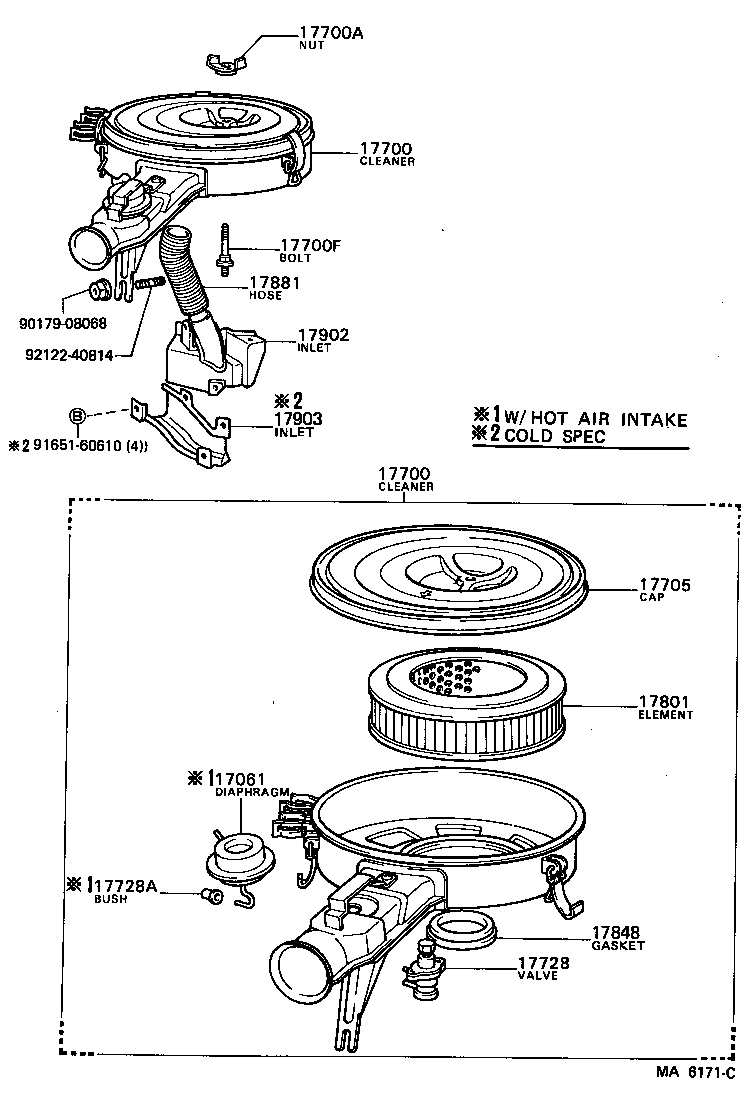

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-13020 |
2K..KP60..EUG W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-24332 |
2K..KP60..EUG |
1 | ||
| 17700-12080 |
2K..KP60..EUG W/HOT AIR INTAKE |
1 | ||
| 17700-12070 |
2K..KP60..EUG |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-24332 |
2K..KP60..EUG |
1 | ||
| 17700-12080 |
2K..KP60..EUG W/HOT AIR INTAKE |
1 | ||
| 17700-12070 |
2K..KP60..EUG |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2K,4K#..KP6# |
1 | ||
| 94271-00600 |
2K,3K#..KP60,62 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
2K,4K#..KP6# |
1 | ||
| 90116-06131 |
2K,3K#..KP60,62 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-24170 |
2K..KP60..EUG |
1 | ||
| 17705-13011 |
2K..KP60 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-12010 |
2K..KP60..EUG W/O HOT AIR INTAKE |
1 | ||
| 17728-13030 |
2K..KP60..EUG W/HOT AIR INTAKE |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
2K..KP60..EUG W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-24010 |
2K,3K#..KP60,62 |
1 | ||
| 17801-13010 |
2K,4K#..KP6#..EUR |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
2K,3K#..KP60,62 |
1 | ||
| 17848-13010 |
2K,4K#..KP6# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26020 |
2K,4K#..KP6#..EUR |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-13030 |
2K,4KC..KP6#..EUR |
1 | ||
| 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 | ||||
| 17168-13020 |
2K..KP60..LHD..EUG COLD SPEC |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 91651-60610 | ||||
| 92122-40814 | ||||
