KP60L-PGKRSW (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 2K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )3D

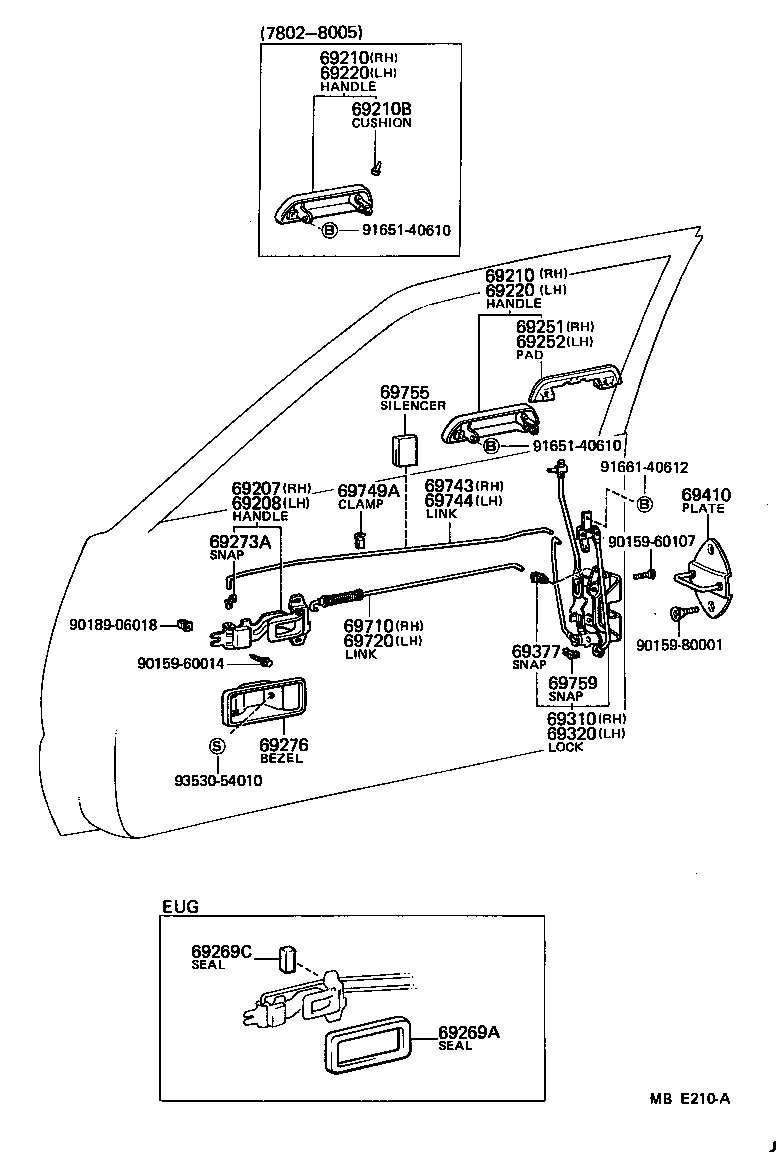

Click highlighted areas on diagram

diagram 69207 69208 69210 69210 69210B 69220 69220 69251 69252 69269A 69269C 69273A 69276 69310 69320 69377 69410 69710 69720 69743 69744 69749A 69755 69759 9015960014 9015960107 9015980001 9018906018 9165140610 9165140610 9166140612 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1001002

KP6#..3D..(DLX,STD)

DARK WINE,RED/MAROON,TRIM3#

 1
69205-1001005

KP6#..3D

BEIGE,BEIGE,TRIM4#

 1
69205-1001006

KP6#..3D

LIGHT BROWN,BROWN,TRIM4#

 1
69205-1001004

KP6#..3D

BLUE,BLUE,TRIM8#

 1
69205-1001003

KP6#..3D

GRAY,GRAY,TRIM1#

 1
69205-1001001

KP6#..3D

BLACK,BLACK,TRIM2#

 1
69205-1001016

KP6#..3D..(DLX,STD)

BROWN,BROWN,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1001005

KP6#..3D

BEIGE,BEIGE,TRIM4#

 1
69206-1001004

KP6#..3D

BLUE,BLUE,TRIM8#

 1
69206-1001003

KP6#..3D

GRAY,GRAY,TRIM1#

 1
69206-1001002

KP6#..3D..(DLX,STD)

DARK WINE,RED/MAROON,TRIM3#

 1
69206-1001001

KP6#..3D

BLACK,BLACK,TRIM2#

 1
69206-1001016

KP6#..3D..(DLX,STD)

BROWN,BROWN,TRIM4#

 1
69206-1001006

KP6#..3D

LIGHT BROWN,BROWN,TRIM4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-10030

KP6#

CHROME PLATED

 1
69210-10041

KP6#

BLACK

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-10030

KP6#

CHROME PLATED

 1
69210-10041

KP6#

BLACK

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

KP6#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-10041

KP6#

BLACK

 1
69220-10030

KP6#

CHROME PLATED

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-10041

KP6#

BLACK

 1
69220-10030

KP6#

CHROME PLATED

 1
69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69241-10030

KP6#

 1
69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69241-10030

KP6#

 1
69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69269-14010

KP6#..3D..EUG

 2
69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69289-12010

KP6#..3D..EUG

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-2001105

KP6#..3D

BEIGE,BEIGE,TRIM4#

 2
69276-2001104

KP6#..3D

BLUE,BLUE,TRIM8#

 2
69276-2001101

KP6#..3D

BLACK,BLACK,TRIM2#

 2
69276-2001102

KP6#..3D..(DLX,STD)

DARK WINE,RED/MAROON,TRIM3#

 2
69276-2001103

KP6#..3D

GRAY,GRAY,TRIM1#

 2
69276-2001136

KP6#..3D

LIGHT BROWN,BROWN,TRIM4#

 2
69276-2001146

KP6#..3D..(DLX,STD)

BROWN,BROWN,TRIM4#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-10060

KP6#..3D

 1
69310-10060

KP6#..3D..EUR

 1
69310-10061

KP6#..3D

 1
69310-10062

KP6#..3D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-10060

KP6#..3D

 1
69320-10061

KP6#..3D

 1
69320-10060

KP6#..3D..EUR

 1
69320-10062

KP6#..3D

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

KP6#

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22020

KP6#

 2
69410-10020

KP6#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69710-10040

KP6#..3D

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69720-10040

KP6#..3D

 1
69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69733-10010

KP6#..3D

 1
69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69734-10010

KP6#..3D

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-12010

KP6#..3D

 2
69749-30020

KP6#..3D

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-10040

KP6#..3D

40X40

 2
69759-10030

KP6#..3D

40X50,W/SLIT

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

KP6#

 4
Common parts
90159-60014
90159-60107
90159-80001
90189-06018
91651-40610
91661-40612
93530-54010
