EP91R-AHMNKQ (1996)
Toyota Starlet
Production
Jan 1996
-
Jul 1999
Engine
4EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )5D

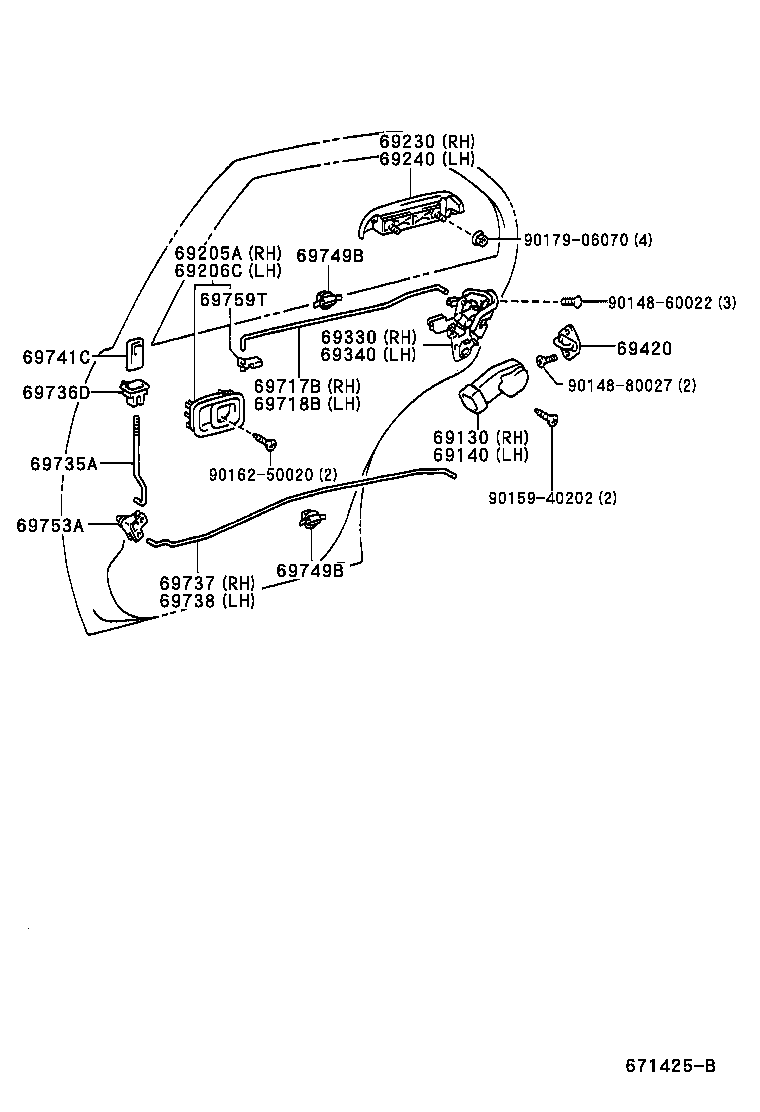

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-10030 |
EP9#..5D..(3FC,5F) |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-10030 |
EP9#..5D..(3FC,5F) |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-10090B0 |
EP9#..5D BLUISH GRAY,TRIM1# |
1 | ||
| 69205-16100B1 |
EP9#..5D BLUISH GRAY,TRIM1# |
1 | ||
| 69205-16100B0 |
EP9#..5D SHADOW GRAY,TRIM1# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-10090B0 |
EP9#..5D BLUISH GRAY,TRIM1# |
1 | ||
| 69206-16100B1 |
EP9#..5D BLUISH GRAY,TRIM1# |
1 | ||
| 69206-16100B0 |
EP9#..5D SHADOW GRAY,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-10060 |
EP9#..5D..(3FC,5F) CHROME PLATED |
1 | ||
| 69230-10050 |
EP9#..5D |
1 | ||
| 69230-10090 |
EP9#..5D |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-10060 |
EP9#..5D..(3FC,5F) CHROME PLATED |
1 | ||
| 69240-10090 |
EP9#..5D |
1 | ||
| 69240-10050 |
EP9#..5D |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-10160 |
EP9#..5D..(3FC,5F) W(POWER WINDOW) |
1 | ||
| 69330-10150 |
EP9#..5D |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-10150 |
EP9#..5D |
1 | ||
| 69340-10160 |
EP9#..5D..(3FC,5F) W(POWER WINDOW) |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
EP9#..5D |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-10050 |
EP9#..5D |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-10040 |
EP9#..5D |
1 | ||
| 69735A - ROD, REAR DOOR LOCK PUSH BUTTON | ||||
| 69735-10060 |
EP9#..5D |
2 | ||
| 69736D - GUIDE, REAR DOOR LOCKING LINK | ||||
| 69736-16050 |
EP9#..5D |
2 | ||
| 69737 - LINK, REAR DOOR INSIDE LOCKING, RH | ||||
| 69737-10040 |
EP9#..5D |
1 | ||
| 69738 - LINK, REAR DOOR INSIDE LOCKING, LH | ||||
| 69738-10040 |
EP9#..5D |
1 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-87003B0 |
EP9#..5D BLUISH GRAY,TRIM1# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-50020 |
EP9#..5D |
4 | ||
| 69749-12070 |
EP9#..5D |
4 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-50020 |
EP9#..5D |
4 | ||
| 69749-12070 |
EP9#..5D |
4 | ||
| 69753A - BELLCRANK, DOOR LOCK CONTROL | ||||
| 69753-10010 |
EP9#..5D |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-20060 |
EP9#..5D GRAY |
1 | ||
| 69759-20070 |
EP9#..5D GREEN |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50020 | ||||
| 90179-06070 | ||||
