EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

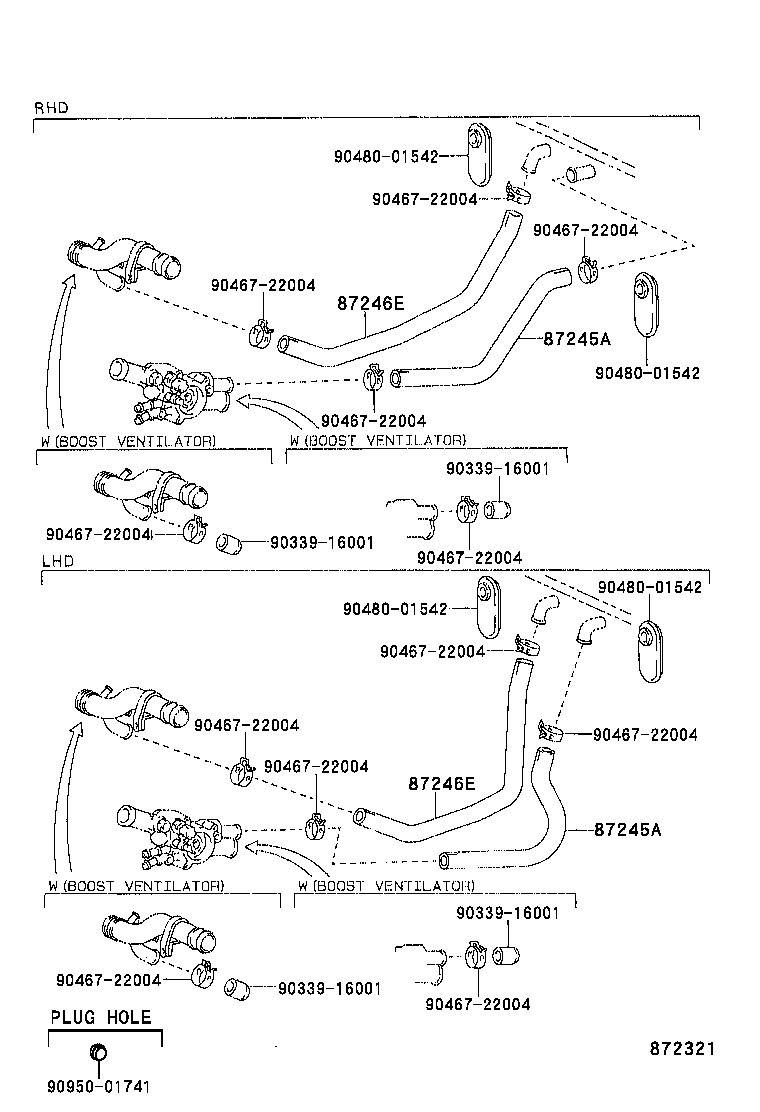

Click highlighted areas on diagram

diagram 87245A 87245A 87246E 87246E 9033916001 9033916001 9033916001 9033916001 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9048001542 9048001542 9048001542 9048001542 9095001741
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-10410

EP9#..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-10410

EP9#..RHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-16470

EP91

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-16470

EP91

 1
Common parts
90339-16001
90467-22004
90480-01542
90950-01741
