EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

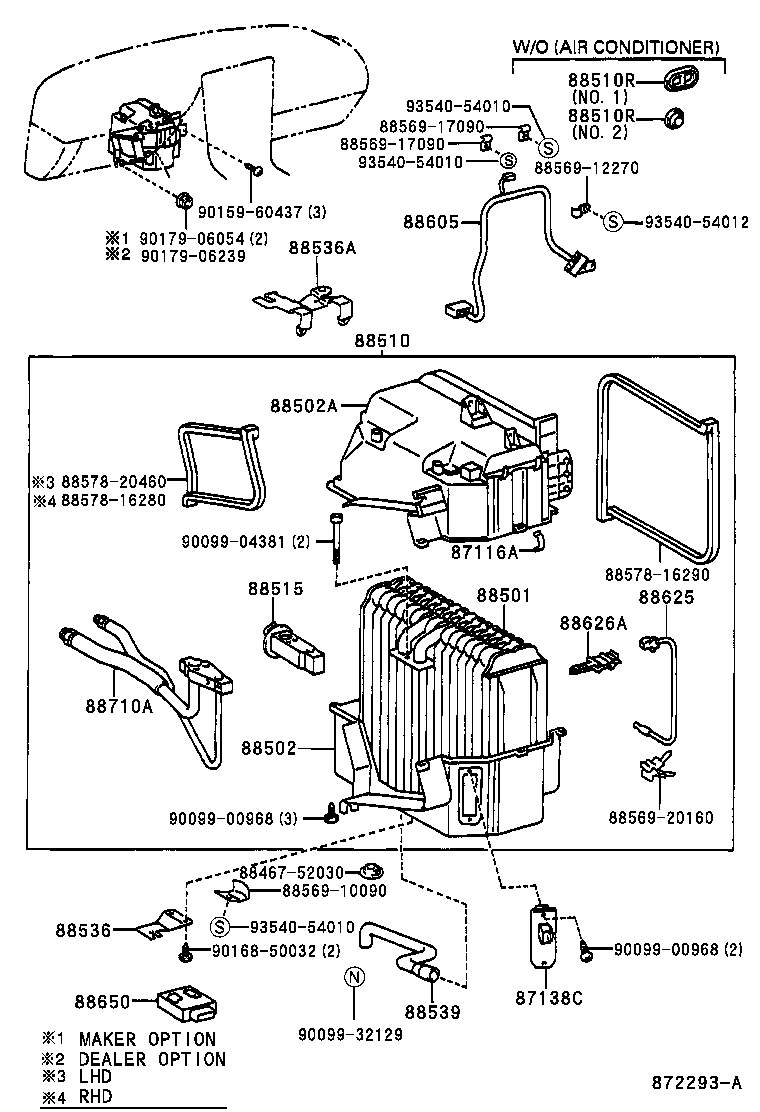

ILLUST NO. 1 OF 2(9601- )

Click highlighted areas on diagram

diagram 87116A 87138C 8846752030 88501 88502 88502A 88510 88510R 88510R 88515 88536 88536A 88539 8856910090 8856912270 8856917090 8856917090 8856920160 8857816280 8857816290 8857820460 88605 88625 88626A 88650 88710A 9009900968 9009900968 9009904381 9009932129 9015960437 9016850032 9017906054 9017906239 9354054010 9354054010 9354054010 9354054012
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

EP9#

 3
87138C - RESISTOR, BLOWER
87138-10141

EP9#..RHD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10140

EP9#..RHD

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-10060

EP9#..RHD

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-10050

EP9#..RHD

 1
88510 - UNIT ASSY, COOLER
88510-10640

EP9#..RHD

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26022

EP9#

NO.2

 1
90480-24008

EP9#

NO.1

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26022

EP9#

NO.2

 1
90480-24008

EP9#

NO.1

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

EP9#

 1
88536 - BRACKET, COOLING UNIT, NO.1
88688-10380

EP9#..RHD

 1
88536A - BRACKET, COOLING UNIT, NO.2
88688-10400

EP9#..RHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-10090

EP9#..RHD

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1M270

EP91

MANUAL AIR CONDITIONER OR DEALER KIT MANUAL AIR CONDITIONER

 1
88605-1M260

EP91

W(POWER STEERING & MANUAL AIR CONDITIONER);W(POWER STEERING & DEALER KIT MANUAL AIR CONDITIONER)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-24050

EP9#..RHD

MAKER OPTION

 1
88625-16210

EP9#..RHD

DEALER OPTION

 1
88626A - HOLDER, THERMISTOR
88626-28010

EP9#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-1A890

EP91

MANUAL AIR CONDITIONER OR DEALER KIT MANUAL AIR CONDITIONER

 1
88650-10470

EP91

W(POWER STEERING & MANUAL AIR CONDITIONER);W(POWER STEERING & DEALER KIT MANUAL AIR CONDITIONER)

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-10150

EP9#..RHD

W(AIR CONDITIONER);W(BOOST VENTILATOR)

 1
88710-16250

EP9#..RHD

 1
Common parts
88467-52030
88569-10090
88569-12270
88569-17090
88569-20160
88578-16280
88578-16290
88578-20460
90099-00968
90099-04381
90099-32129
90159-60437
90168-50032
90179-06054
90179-06239
93540-54010
93540-54012

ILLUST NO. 2 OF 2(9601- )

Click highlighted areas on diagram

diagram 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125
