EP91R-AGMNKQ (1996)
Toyota Starlet

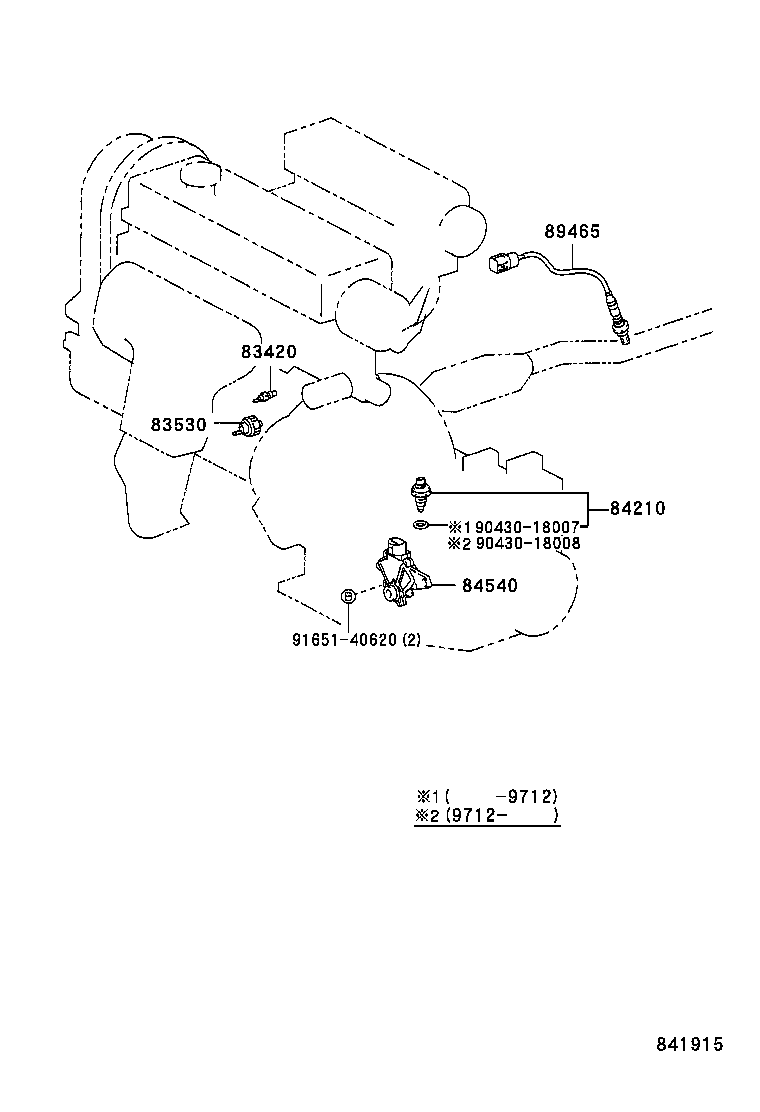

ILLUST NO. 1 OF 6(9601- )
E/G,T/M,T/F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EP9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
EP9# |
1 | ||
| 83530-30090 |
EP9# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
EP9#..MTM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-16080 |
EP91 |
1 | ||
| Common parts | ||||
| 90430-18007 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||

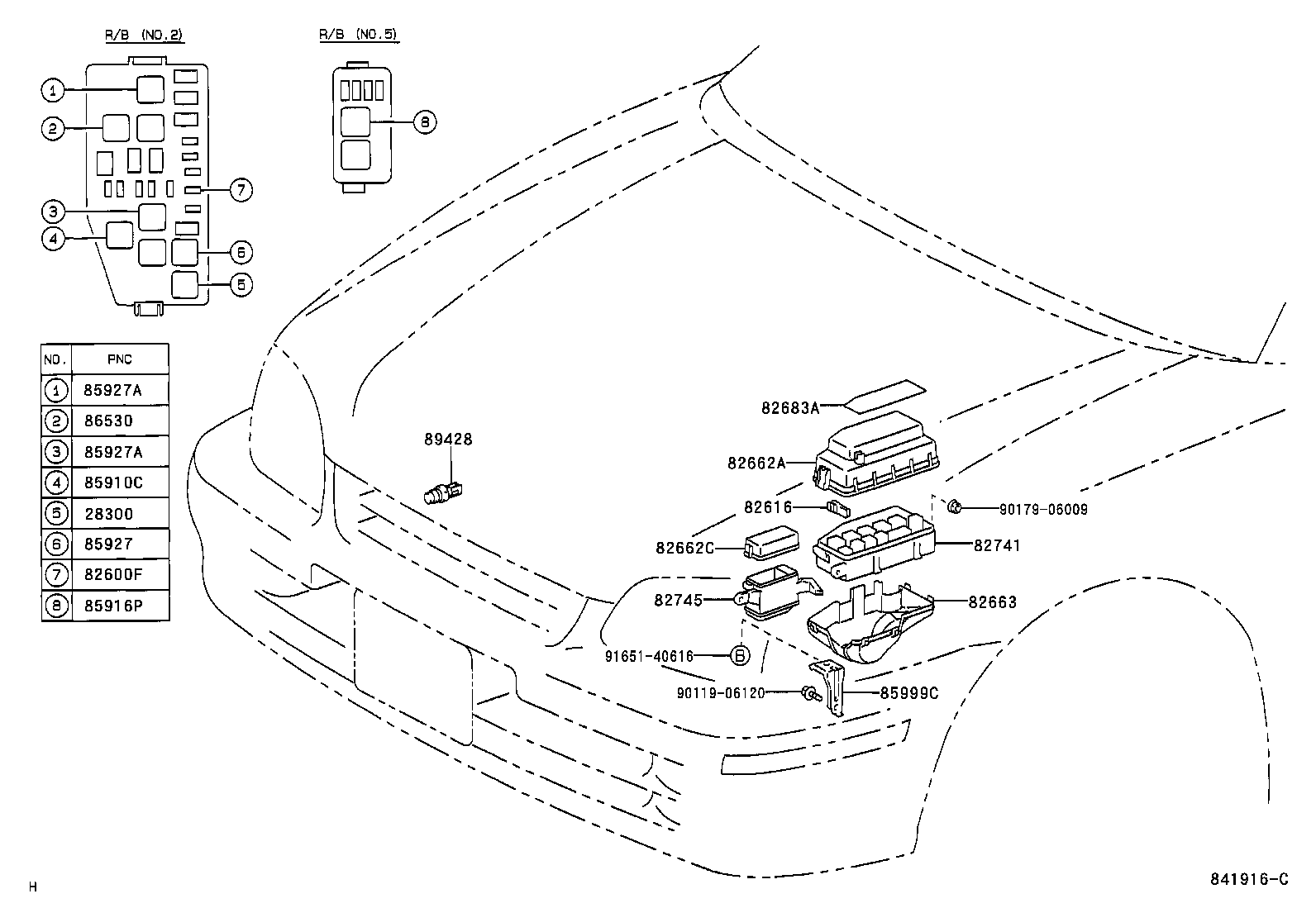

ILLUST NO. 2 OF 6(9601- )
E/G ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
2E,4EFE..EP9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
EP9# 5A,MINI FUSE,TAN |
2 | ||
| 90982-09009 |
EP9# 10A,MINI FUSE,RED |
5 | ||
| 90982-09010 |
EP91 15A,MINI FUSE,BLUE |
4 | ||
| 90982-09009 |
EP9# 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
EP9# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
EP9# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09010 |
EP9# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
EP9# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
EP9# 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
EP9# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-46010 |
EP9# |
1 | ||
| 82662-10300 |
EP9# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-10350 |
EP91 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-46010 |
EP9# |
1 | ||
| 82663-10050 |
EP9# |
1 | ||
| 82683A - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-10220 |
EP91 |
1 | ||
| 82683-10260 |
EP91 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-46010 |
EP9# |
1 | ||
| 82741-10010 |
EP9# |
1 | ||
| 82745 - BLOCK, ENGINE ROOM RELAY, NO.5 | ||||
| 82745-16010 |
EP91 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
EP9# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
EP91 |
1 | ||
| 90987-02006 |
EP9# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
EP9# |
1 | ||
| 90987-02012 |
EP91 DEALER KIT MANUAL AIR CONDITIONER |
2 | ||
| 90987-04004 |
EP91 W(MANUAL AIR CONDITIONER),FAN NO.3 |
1 | ||
| 90987-02009 |
EP9# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
EP9# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
EP9# |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-10130 |
EP9# |
1 | ||
| 85999-10180 |
EP9# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
EP9# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10120 |
EP9# |
1 | ||
| 89428-41010 |
EP9# |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90179-06009 | ||||
| 91651-40616 | ||||

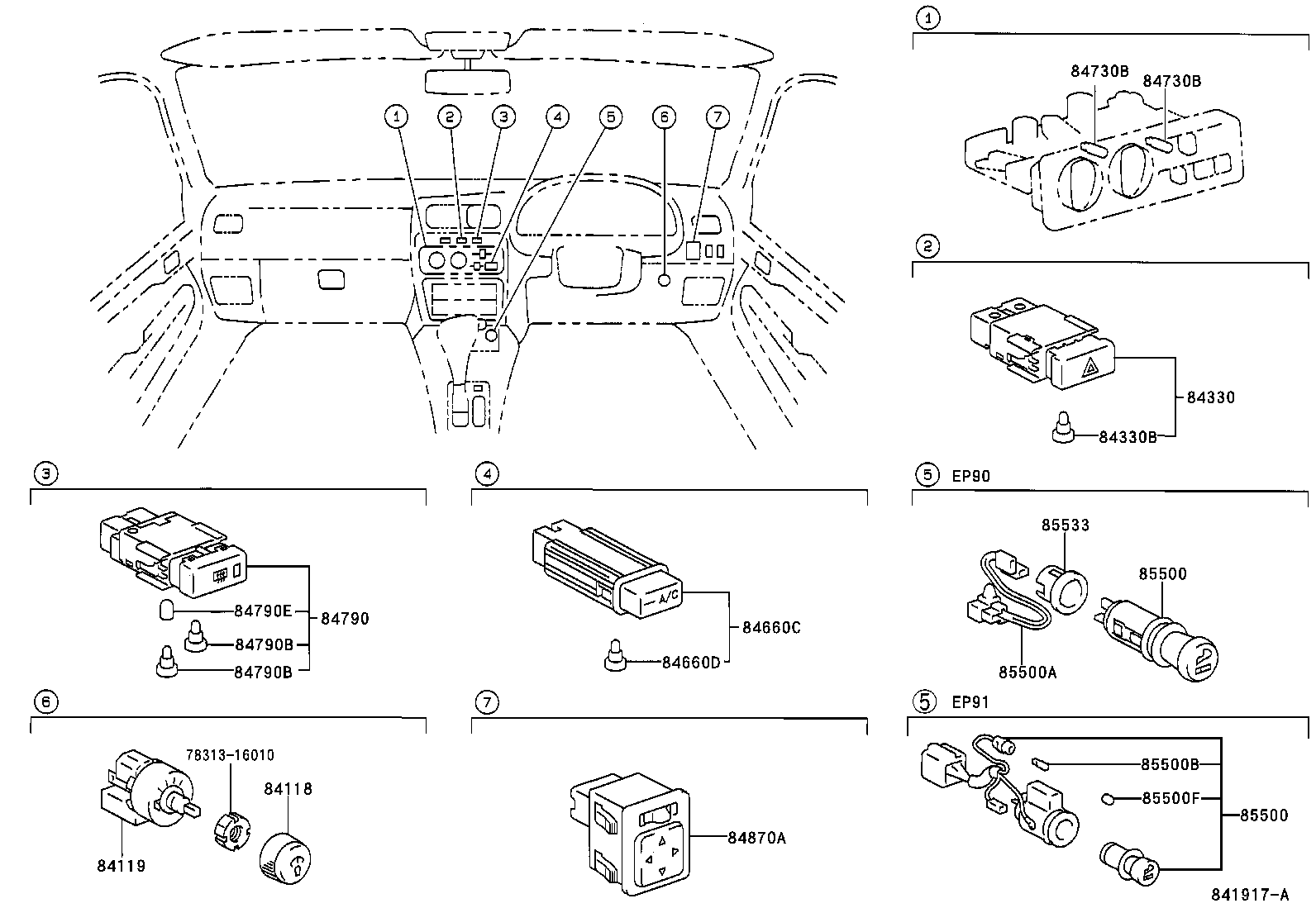

ILLUST NO. 3 OF 6(9601- )RHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-2001122 |
EP9#..3FC,5F BLACK,TRIM1# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-16050 |
EP9#..RHD..(3FC,5F) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20350 |
EP9#..RHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
EP9#..RHD 14V 0.91W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10120 |
EP91 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
EP91 14V 0.08A,MANUAL AIR CONDITIONER |
1 | ||
| 88607-10030 |
EP91 14V 1.12W,DEALER KIT MANUAL AIR CONDITIONER |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EP9# 14V 1.4W |
2 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EP9# 14V 1.4W |
2 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10200 |
EP9#..RHD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10310 |
EP9#..RHD 14V 0.91W |
2 | ||
| 84999-10310 |
EP9#..RHD 14V 0.91W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10310 |
EP9#..RHD 14V 0.91W |
2 | ||
| 84999-10310 |
EP9#..RHD 14V 0.91W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10180 |
EP9#..RHD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
EP9#..RHD..(3FC,5F) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16200 |
EP91 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16200 |
EP91 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
EP91 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10390 |
EP91 |
1 | ||
| Common parts | ||||
| 78313-16010 | ||||

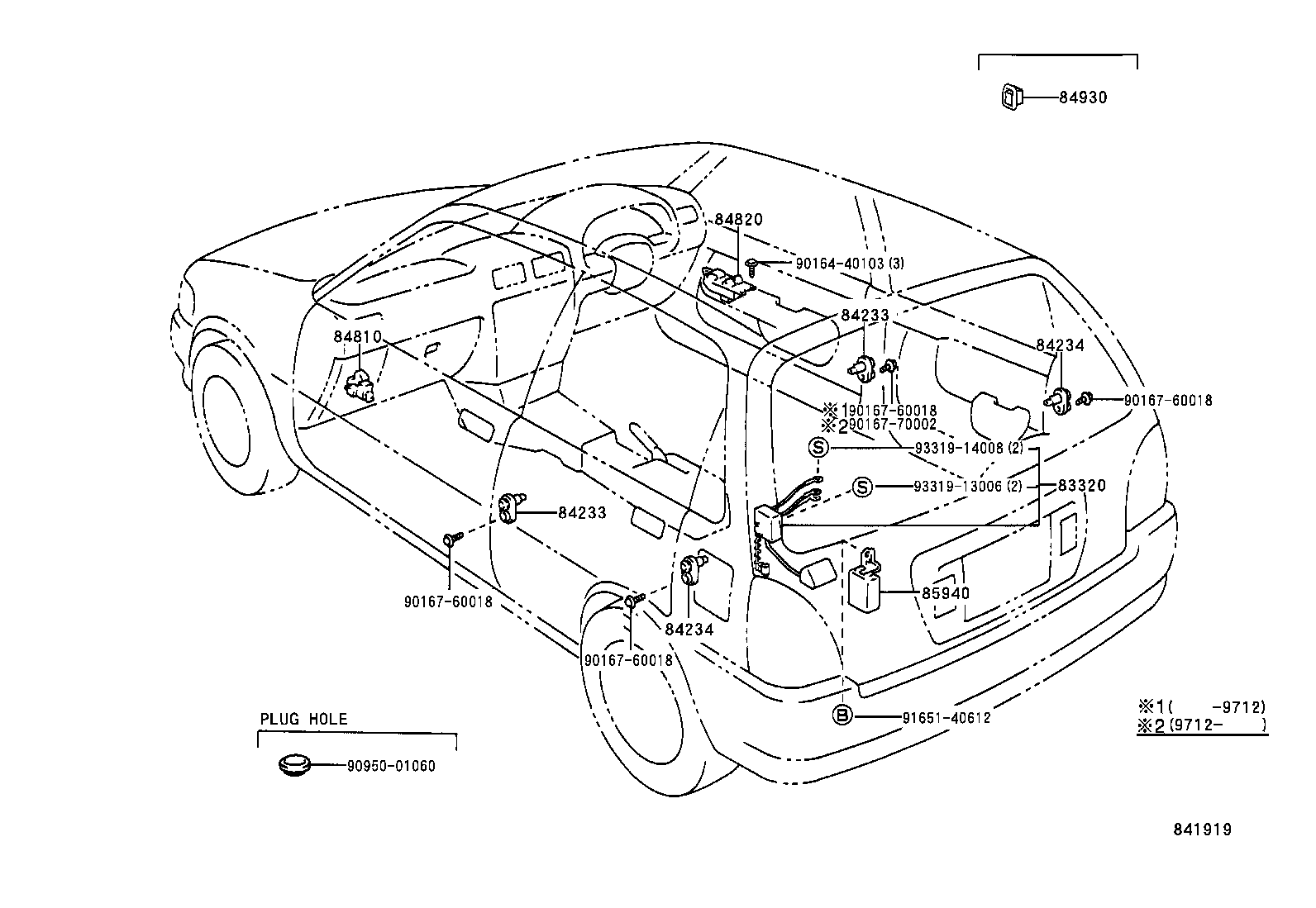

ILLUST NO. 6 OF 6(9601- )
DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80192 |
EP91 W(TACHOMETER) |
1 | ||
| 83320-16290 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83320-16280 |
EP9# |
1 | ||
| 83320-80191 |
EP91 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
EP9# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
EP9# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
EP9#..3FC,5F |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-10090 |
EP91 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-10040B0 |
EP9#..RHD..(3FC,5F) LT.BLUISH GRAY,TRIM1# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-10050 |
EP9# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90167-60018 | ||||
| 90167-70002 | ||||
| 90950-01060 | ||||
| 91651-40612 | ||||
| 93319-13006 | ||||
| 93319-14008 | ||||

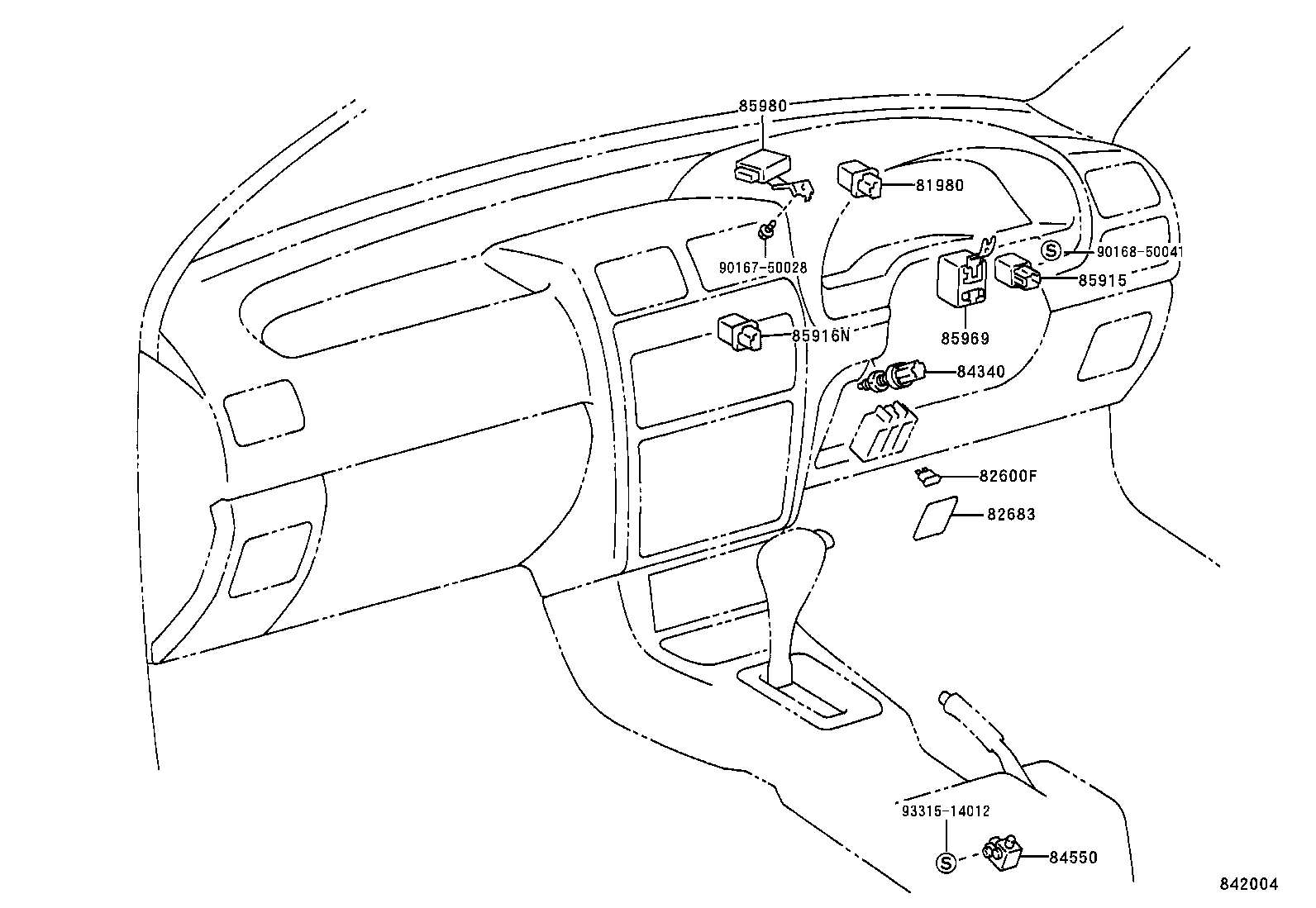

ILLUST NO. 4 OF 6(9601- )
INSTRUMENT PANEL & COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12110 |
EP9# |
1 | ||
| 81980-12070 |
EP9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
EP9# 5A,MINI FUSE,TAN |
2 | ||
| 90982-09009 |
EP9# 10A,MINI FUSE,RED |
5 | ||
| 90982-09010 |
EP91 15A,MINI FUSE,BLUE |
4 | ||
| 90982-09009 |
EP9# 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
EP9# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
EP9# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09010 |
EP9# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
EP9# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
EP9# 20A,MINI FUSE,YELLOW |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-10200 |
EP9# INSTRUMENT PANEL |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
EP9# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
EP9# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
EP9#..3FC,5F MARUKO |
1 | ||
| 90987-02004 |
EP9#..3FC,5F DENSO |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
EP91 |
1 | ||
| 90987-02012 |
EP9# |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-10040 |
EP9#..RHD..(3FC,5F) |
1 | ||
| 85969-10030 |
EP9#..RHD..(3FC,5F) |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-16030 |
EP9#..RHD..(3FC,5F) |
1 | ||
| Common parts | ||||
| 90167-50028 | ||||
| 90168-50041 | ||||
| 93315-14012 | ||||

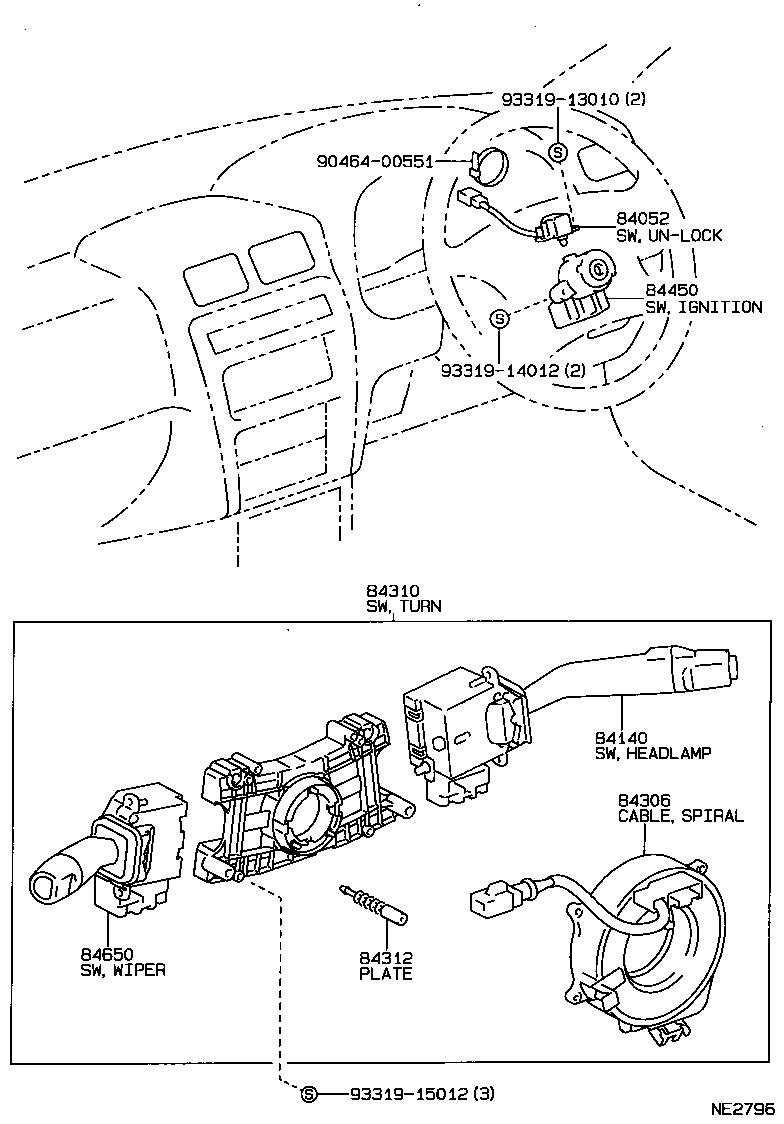

ILLUST NO. 5 OF 6(9601- )EP91
COMBINATIOB SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
EP9# |
1 | ||
| 84052-10030 |
EP91 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12400 |
EP91 |
1 | ||
| 84140-26170 |
EP9#..RHD |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
EP91 |
1 | ||
| 84306-35010 |
EP91 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1C080 |
EP91 W(*80) |
1 | ||
| 84310-1C220 |
EP91 |
1 | ||
| 84310-1C140 |
EP91 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-26010 |
EP91 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
EP9# |
1 | ||
| 84450-16080 |
EP9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A510 |
EP91 |
1 | ||
| 84652-26520 |
EP91 |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93319-13010 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
