EP91R-AGMNKQ (1996)
Toyota Starlet

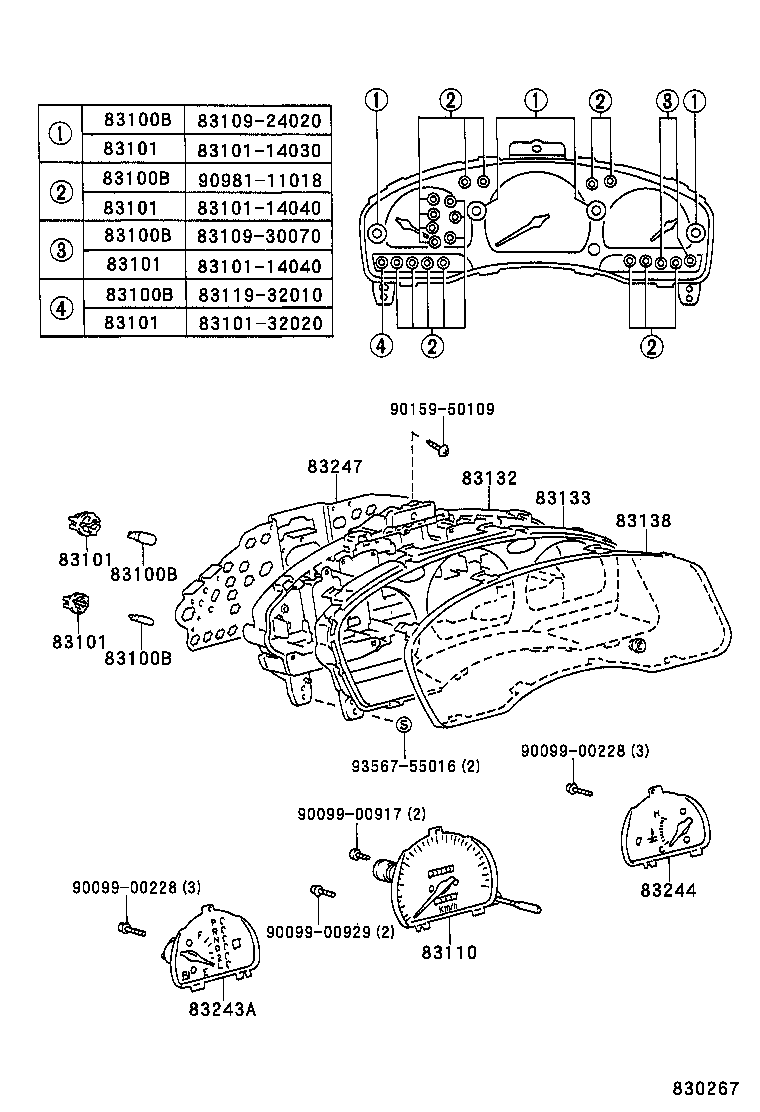

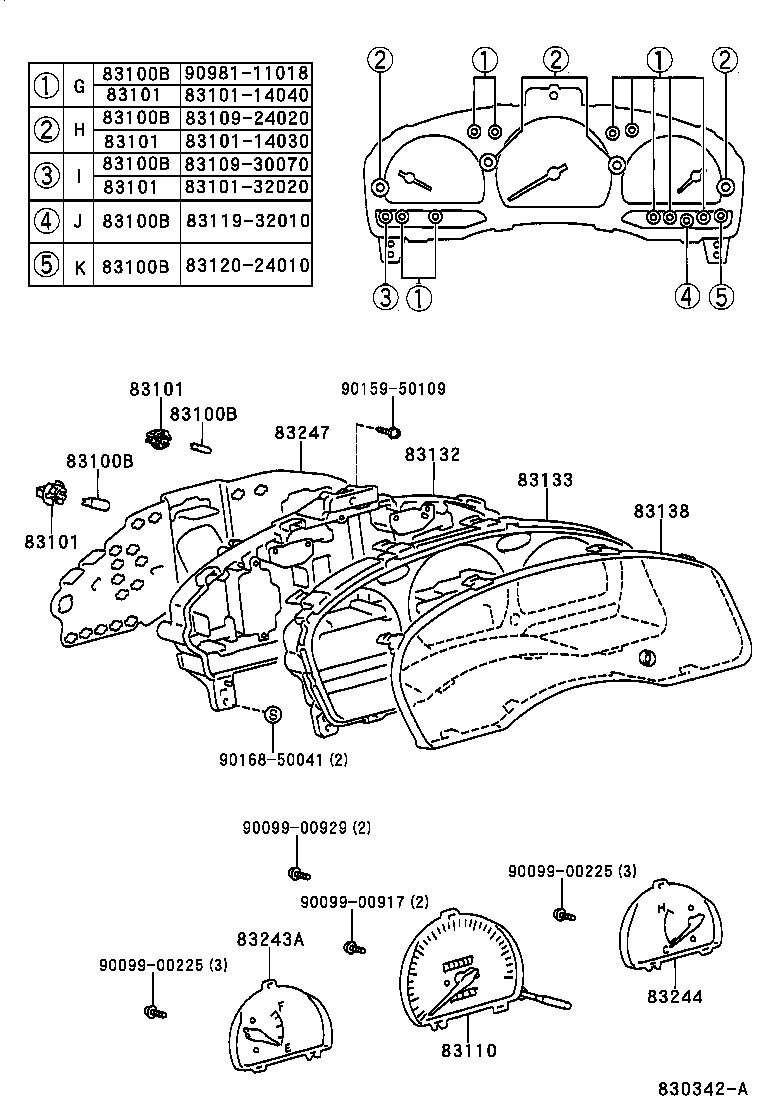

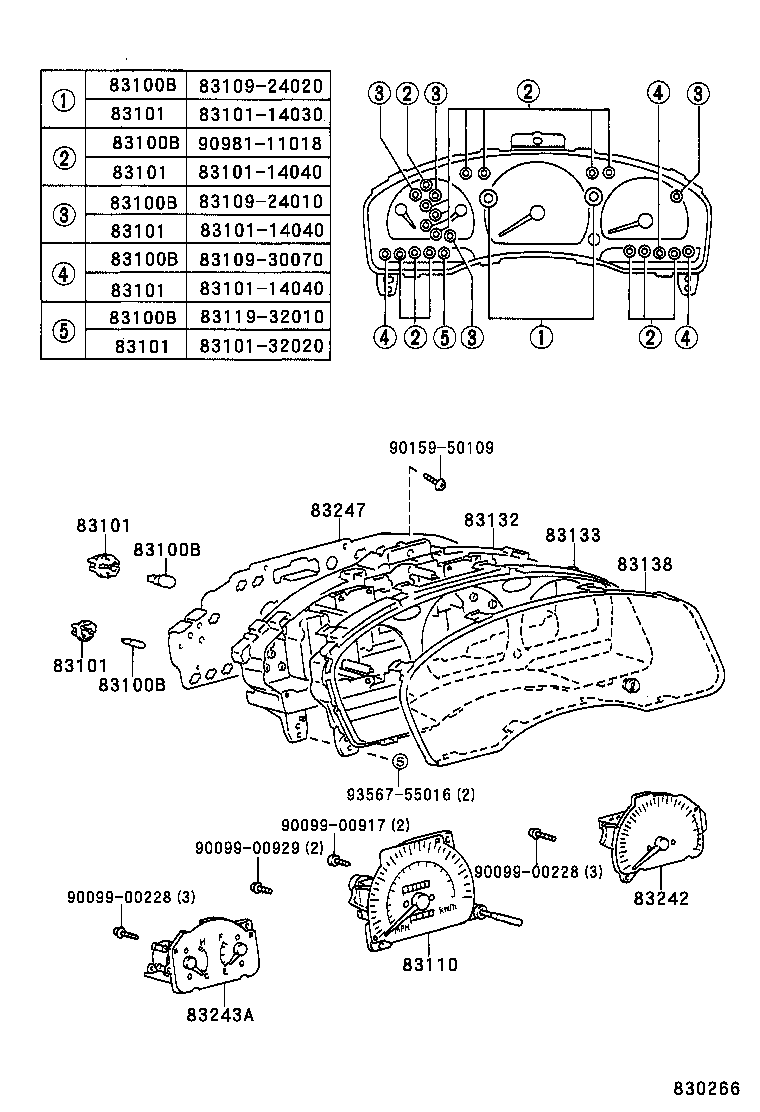

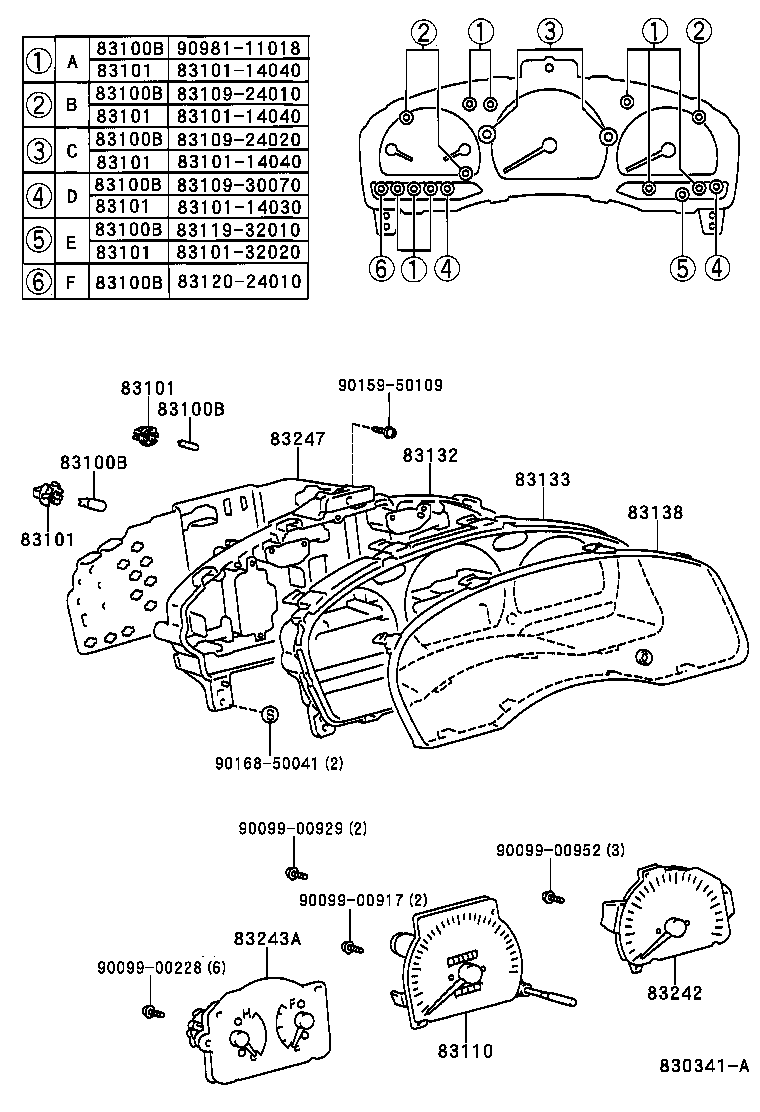

ILLUST NO. 1 OF 2(9601-9712)
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1G441 |
EP9# |
1 | ||
| 83220-10040 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-10070 |
EP91 W(TACHOMETER) |
1 | ||
| 83841-10210 |
EP91 |
1 | ||
| 83841-10490 |
EP91 |
1 | ||
| 83841-10570 |
EP91 W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-10010 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83811-10120 |
EP9# |
1 | ||
| 83811-10600 |
EP9#..3FC,5F W(TACHOMETER & PLATING MOULDING) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-16630 |
EP9# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-10050 |
EP91 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-10100 |
EP9# |
1 | ||
| 83882-10050 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-10050 |
EP91 W(TACHOMETER) |
1 | ||
| 83861-10190 |
EP91 |
1 | ||
| 83861-10470 |
EP91 |
1 | ||
| 83861-10550 |
EP91 W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90099-00228 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90159-50109 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 2(9601-9712)
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1G441 |
EP9# |
1 | ||
| 83220-10040 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-10070 |
EP91 W(TACHOMETER) |
1 | ||
| 83841-10210 |
EP91 |
1 | ||
| 83841-10490 |
EP91 |
1 | ||
| 83841-10570 |
EP91 W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-10010 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83811-10120 |
EP9# |
1 | ||
| 83811-10600 |
EP9#..3FC,5F W(TACHOMETER & PLATING MOULDING) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-16630 |
EP9# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-10100 |
EP9# |
1 | ||
| 83882-10050 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-10100 |
EP9# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-10050 |
EP91 W(TACHOMETER) |
1 | ||
| 83861-10190 |
EP91 |
1 | ||
| 83861-10470 |
EP91 |
1 | ||
| 83861-10550 |
EP91 W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90099-00228 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90159-50109 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 2(9712- )
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1G441 |
EP9# |
1 | ||
| 83220-10040 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-10070 |
EP91 W(TACHOMETER) |
1 | ||
| 83841-10210 |
EP91 |
1 | ||
| 83841-10490 |
EP91 |
1 | ||
| 83841-10570 |
EP91 W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-10010 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83811-10120 |
EP9# |
1 | ||
| 83811-10600 |
EP9#..3FC,5F W(TACHOMETER & PLATING MOULDING) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-16630 |
EP9# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-10050 |
EP91 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-10100 |
EP9# |
1 | ||
| 83882-10050 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-10050 |
EP91 W(TACHOMETER) |
1 | ||
| 83861-10190 |
EP91 |
1 | ||
| 83861-10470 |
EP91 |
1 | ||
| 83861-10550 |
EP91 W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90099-00228 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00952 | ||||
| 90159-50109 | ||||
| 90168-50041 | ||||
ILLUST NO. 1 OF 2(9712- )
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP |
3 | ||
| 83109-30070 |
EP91 14V 2.0W,W/O SOCKET,TYPE D OR TYPE I:REFER TO ILLUSTRATION |
2 | ||
| 83109-24010 |
EP9#..3FC,5F 12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET),TYPE F OR TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
EP91 12V 1.2W W/O SOCKET,TYPE A OR TYPE G:REFER TO ILLUSTRATION |
8 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W |
1 | ||
| 83120-24010 |
EP91 13.5V,W(SOCKET) |
1 | ||
| 83119-32010 |
EP9#..3FC,5F 14V 3.0W,TYPE E OR TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 83109-24020 |
EP9# 12V3.4W W(GREEN CAP),TYPE C OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP9# BULB:12V 1.4W |
13 | ||
| 83101-14030 |
EP9# BULB:12V 3.4W |
4 | ||
| 83101-32020 |
EP9#..3FC,5F TYPE E OR TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
EP9#..3FC,5F OD=12.2 BLUE |
1 | ||
| 83101-14030 |
EP9# TYPE D OR TYPE H:REFER TO ILLUSTRATION |
4 | ||
| 83101-14040 |
EP91 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
13 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1G441 |
EP9# |
1 | ||
| 83220-10040 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-10070 |
EP91 W(TACHOMETER) |
1 | ||
| 83841-10210 |
EP91 |
1 | ||
| 83841-10490 |
EP91 |
1 | ||
| 83841-10570 |
EP91 W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-10010 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83811-10120 |
EP9# |
1 | ||
| 83811-10600 |
EP9#..3FC,5F W(TACHOMETER & PLATING MOULDING) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-16630 |
EP9# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-10100 |
EP9# |
1 | ||
| 83882-10050 |
EP9#..3FC,5F W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-10100 |
EP9# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-10050 |
EP91 W(TACHOMETER) |
1 | ||
| 83861-10190 |
EP91 |
1 | ||
| 83861-10470 |
EP91 |
1 | ||
| 83861-10550 |
EP91 W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90099-00225 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90159-50109 | ||||
| 90168-50041 | ||||

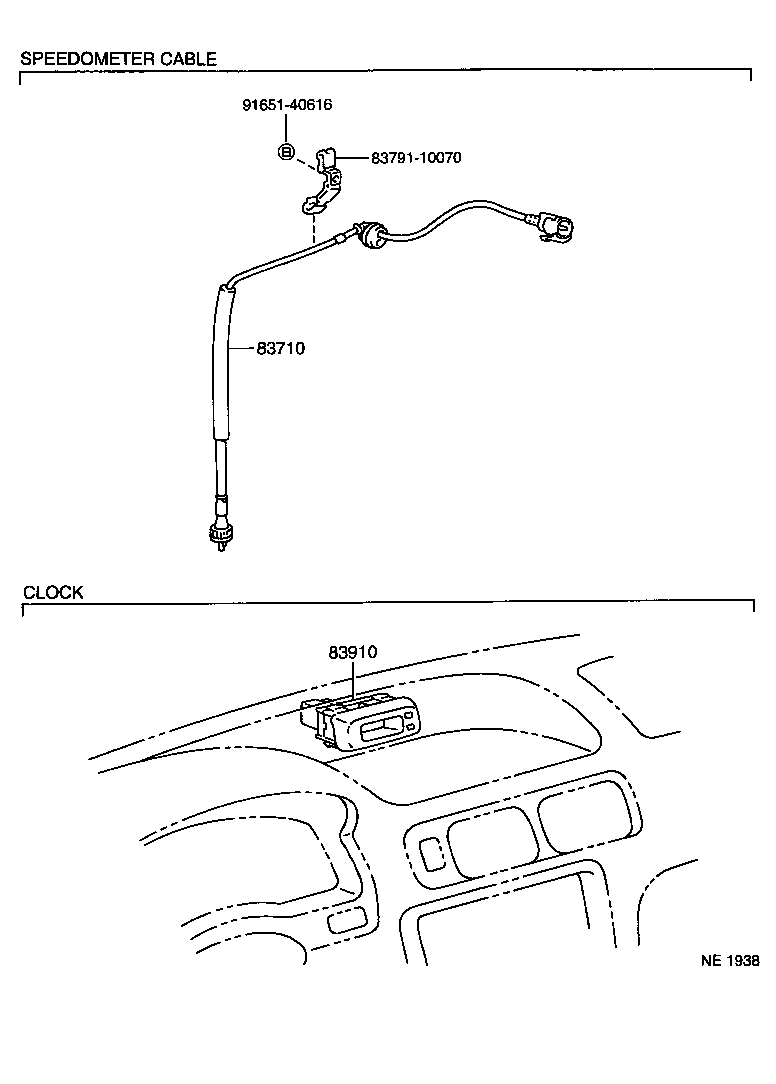

ILLUST NO. 2 OF 2(9601- )
METER CABLE & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-10410 |
EP9#..RHD..MTM |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10190B0 |
EP9#..RHD..(3FC,5F) BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 83791-10070 | ||||
| 91651-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
