EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 6(9601- )EP91

Click highlighted areas on diagram

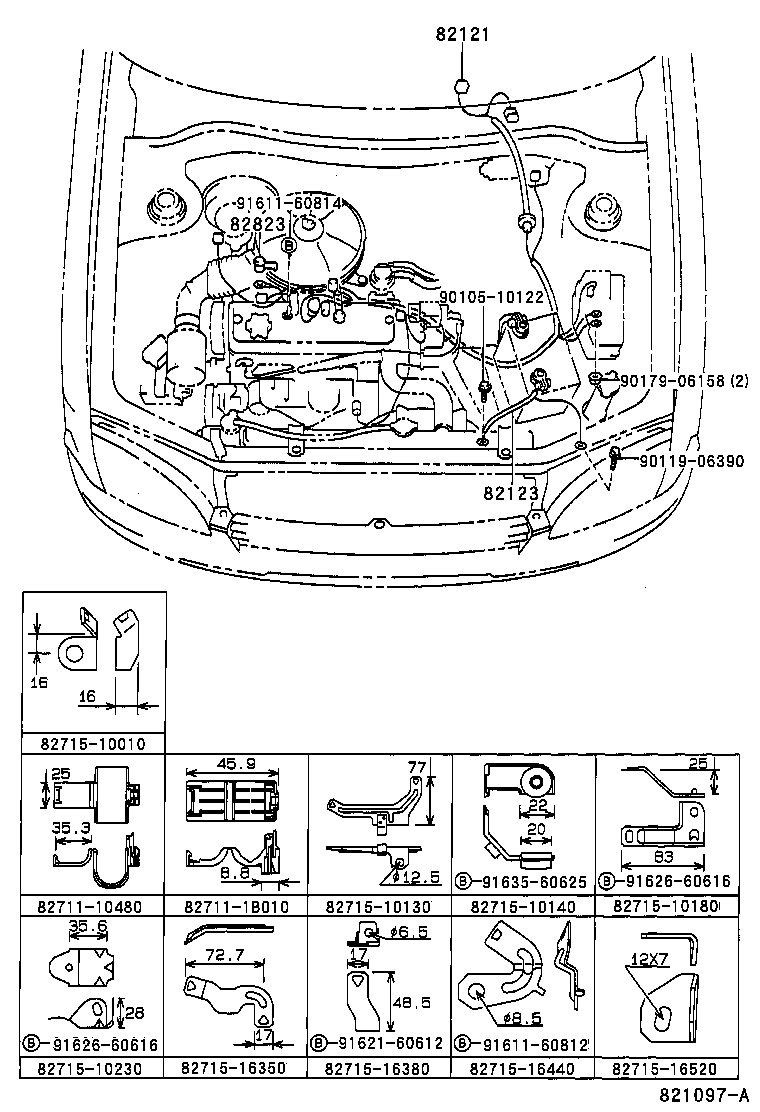

ENGINE WIRE

diagram 82121 82123 8271110480 827111B010 8271510010 8271510130 8271510140 8271510180 8271510230 8271516350 8271516380 8271516440 8271516520 82823 9010510122 9011906390 9017906158 9161160812 9161160814 9162160612 9162660616 9162660616 9163560625
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-1C310

EP91..5F

 1
82121-1C192

EP91

 1
82121-1C190

EP91

 1
82123 - WIRE, ENGINE, NO.3
82123-10150

EP9#..MTM

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

EP9#

 1
Common parts
82711-10480
82711-1B010
82715-10010
82715-10130
82715-10140
82715-10180
82715-10230
82715-16350
82715-16380
82715-16440
82715-16520
90105-10122
90119-06390
90179-06158
91611-60812
91611-60814
91621-60612
91626-60616
91635-60625

ILLUST NO. 3 OF 6(9601- )

Click highlighted areas on diagram

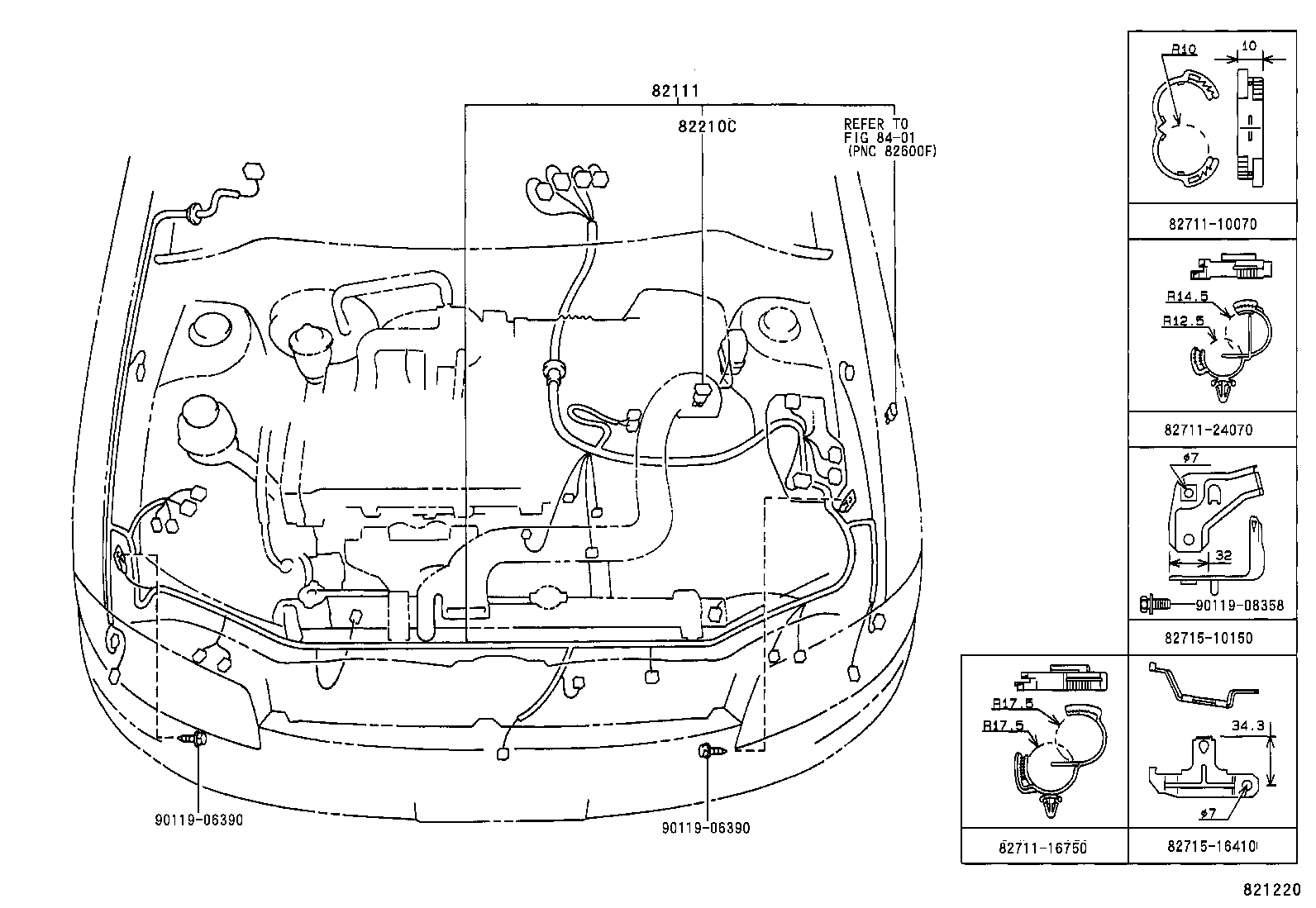

ENGINE ROOM WIRE

diagram 82111 82210C 8271110070 8271116750 8271124070 8271510150 8271516410 8401 9011906390 9011906390 9011908358
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-1C090

EP91..5F

W(ABS)

 1
82111-1C070

EP91..5F

 1
82111-1C091

EP91..5F

W(ABS)

 1
82111-1C071

EP91..5F

 1
82111-1C072

EP91..5F

 1
82111-1C520

EP91

 1
82111-1C092

EP91..5F

W(ABS)

 1
82111-1C530

EP91

W(MANUAL AIR CONDITIONER---DIAL TYPE)

 1
82111-1C540

EP91

W(ABS)

 1
82210C - FUSIBLE LINK
90982-08246

EP9#

100A,TERM.:MALE,BLUE

 1
90982-08283

EP9#

30A,TERM.:FEMALE,PNK

 1
90982-08285

EP9#

50A,TERM.:FEMALE,RED

 1
90982-08284

EP9#

40A,TERM.:FEMALE,GRN

 1
Common parts
82711-10070
82711-16750
82711-24070
82715-10150
82715-16410
90119-06390
90119-08358
Linked diagrams
8401

ILLUST NO. 4 OF 6(9601- )RHD

Click highlighted areas on diagram

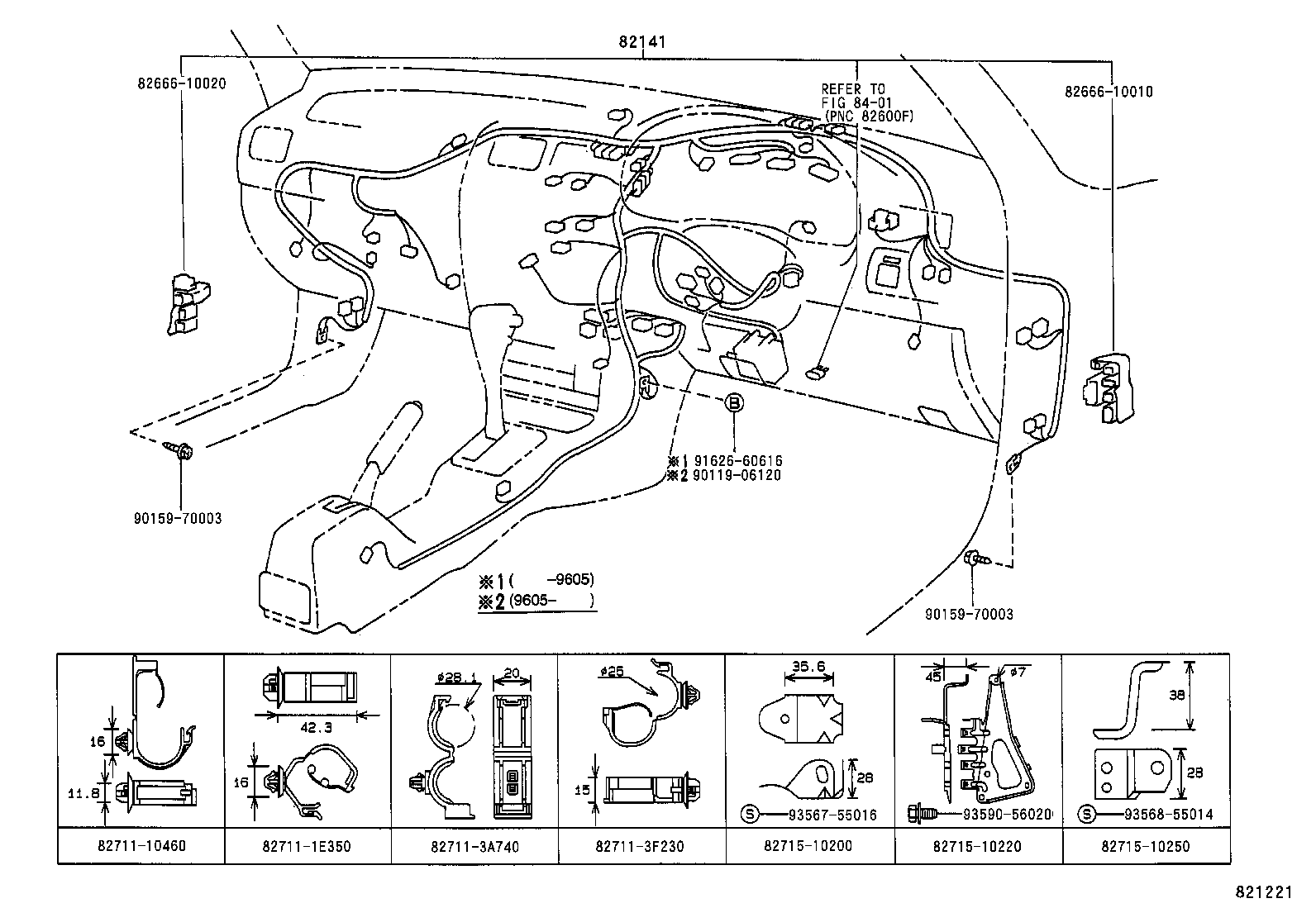

INSTRUMENT PANEL WIRE

diagram 82141 8266610010 8266610020 8271110460 827111E350 827113A740 827113F230 8271510200 8271510220 8271510250 8401 9011906120 9015970003 9015970003 9162660616 9356755016 9356855014 9359056020
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-10370

EP91

W(*80,ELECTRIC TYPE DRIVER SIDE & PASSENGER SIDE)

 1
82141-10371

EP91

W(*80,ELECTRIC TYPE DRIVER SIDE & PASSENGER SIDE)

 1
82141-10360

EP91

 1
82141-10610

EP91

 1
82141-10361

EP91

 1
Common parts
82666-10010
82666-10020
82711-10460
82711-1E350
82711-3A740
82711-3F230
82715-10200
82715-10220
82715-10250
90119-06120
90159-70003
91626-60616
93567-55016
93568-55014
93590-56020
Linked diagrams
8401

ILLUST NO. 5 OF 6(9601- )

Click highlighted areas on diagram

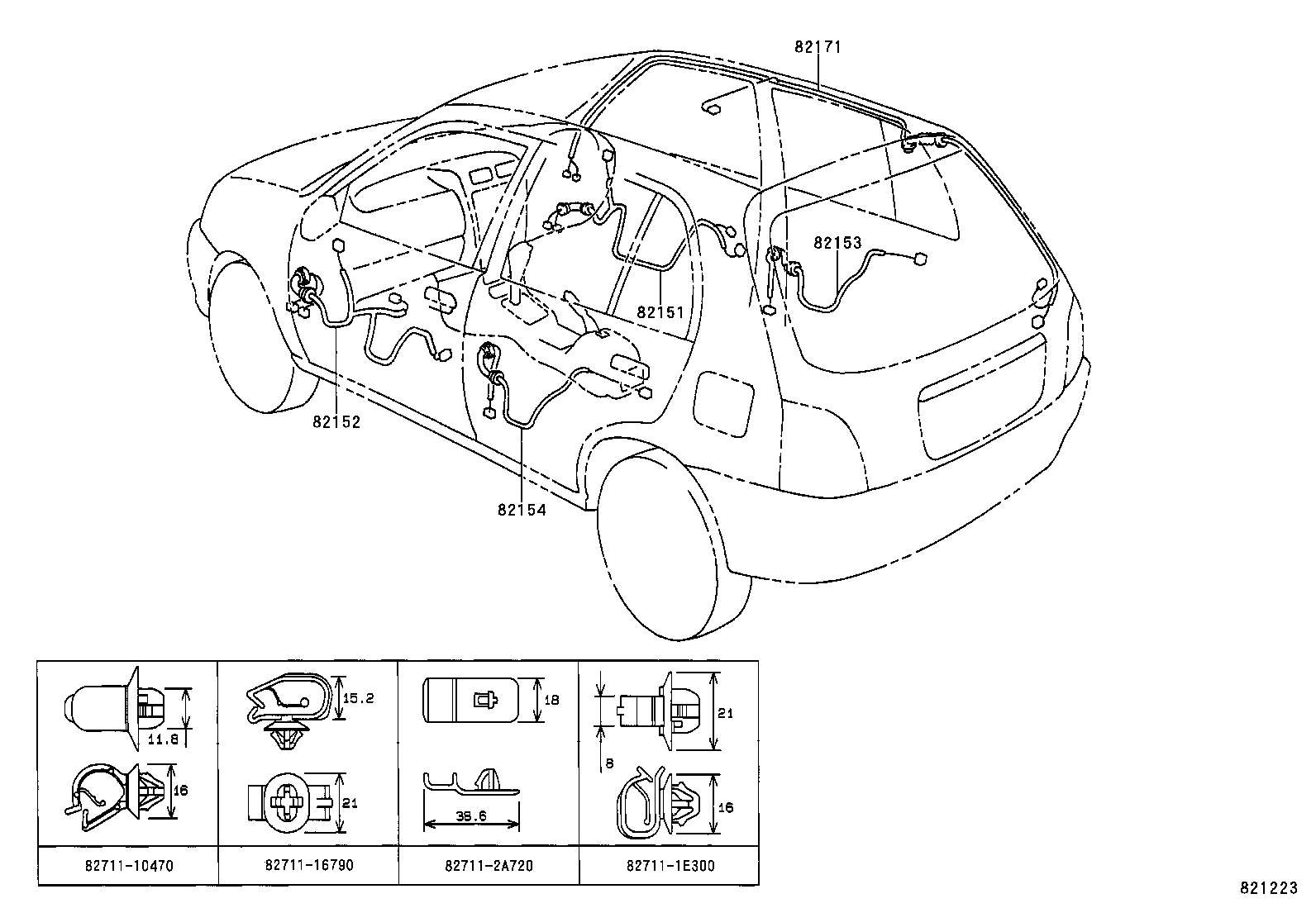

DOOR,ROOF WIRE

diagram 82151 82152 82153 82154 82171 8271110470 8271116790 827111E300 827112A720
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-10300

EP9#..3D..(3FC,5F)

W(POWER DOOR LOCK)

 1
82151-10290

EP9#..RHD..(3FC,5F)

W(ELECTRIC REMOTE CONTROL DOOR MIRROR)

 1
82151-10310

EP9#..3D..(3FC,5F)

W(POWER WINDOW & POWER DOOR LOCK & ELECTRIC REMOTE CONTROL DOOR MIRROR)

 1
82152 - WIRE, FRONT DOOR, LH
82152-10310

EP9#..3D..(3FC,5F)

W(POWER DOOR LOCK)

 1
82152-10400

EP9#..3D..(3FC,5F)

W(POWER WINDOW & POWER DOOR LOCK & ELECTRIC REMOTE CONTROL DOOR MIRROR

 1
82152-10300

EP9#..RHD..(3FC,5F)

W(ELECTRIC REMOTE CONTROL DOOR MIRROR)

 1
82171 - WIRE, ROOF, NO.1
82171-10160

EP91

 1
82171-10180

EP91

W(MOON ROOF)

 1
82171-10260

EP9#..3FC,5F

W(MOON ROOF)

 1
82171-10240

EP91

 1
Common parts
82711-10470
82711-16790
82711-1E300
82711-2A720

ILLUST NO. 6 OF 6(9601- )

Click highlighted areas on diagram

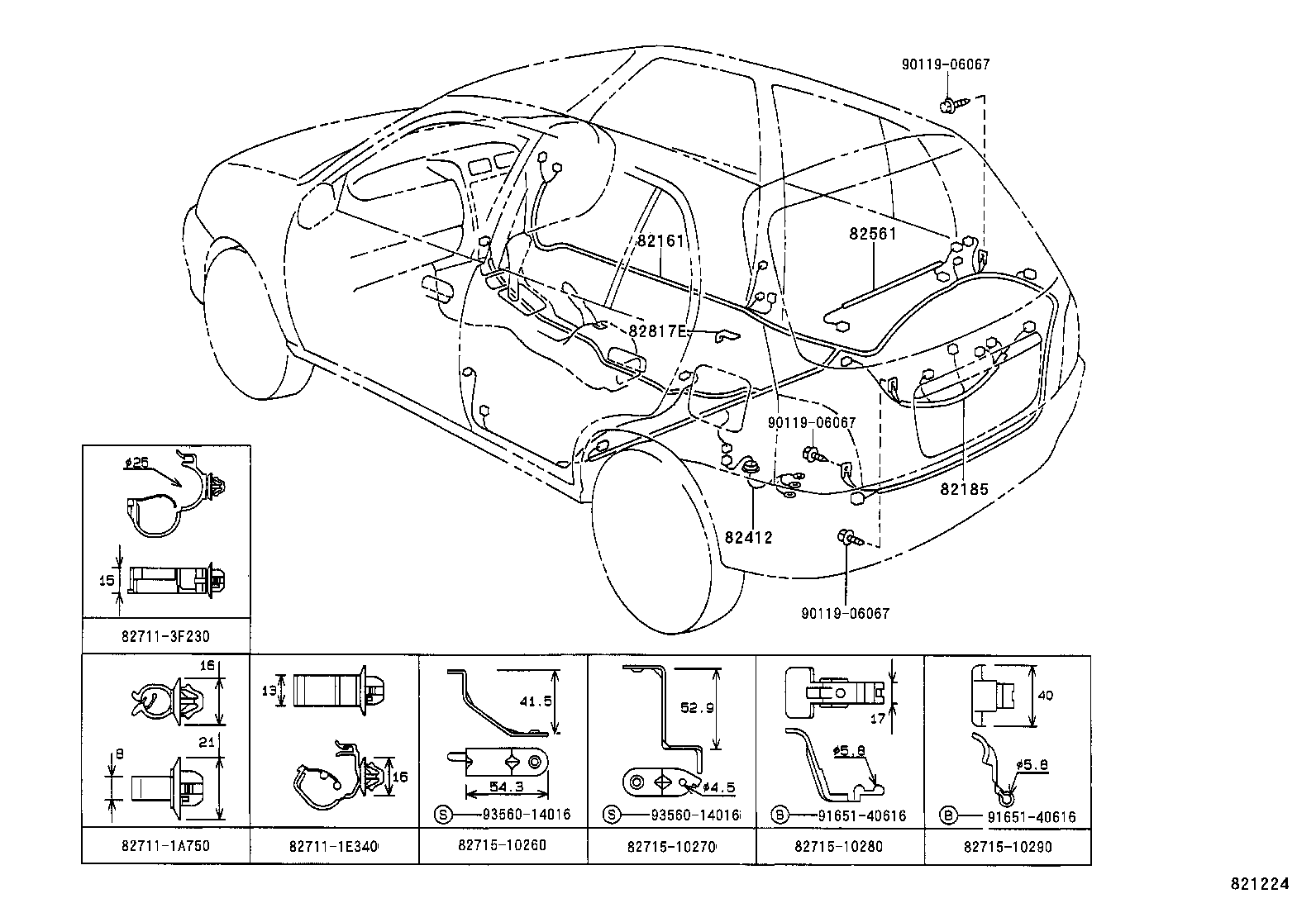

FLOOR,BACK DOOR WIRE

diagram 82161 82185 82412 82561 827111A750 827111E340 827113F230 8271510260 8271510270 8271510280 8271510290 82817E 9011906067 9011906067 9011906067 9165140616 9165140616 9356014016 9356014016
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-1C020

EP9#..RHD

W(ABS)

 1
82161-1C021

EP9#..RHD..3D

 1
82161-1C011

EP91..3D

W(ABS)

 1
82161-1C010

EP9#..RHD

 1
82161-1C061

EP9#..RHD..3D

 1
82161-1C050

EP91..3D

W(ABS)

 1
82161-1C060

EP9#..RHD..3D

 1
82161-1C051

EP91..3D

W(ABS)

 1
82185 - WIRE, BACK DOOR, NO.2
82185-10240

EP91

 1
82561 - WIRE, REAR SPEAKER
82561-10040

EP9#

 1
82561-10040

EP91

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-30150

EP9#

 1
Common parts
82711-1A750
82711-1E340
82711-3F230
82715-10260
82715-10270
82715-10280
82715-10290
90119-06067
91651-40616
93560-14016

ILLUST NO. 1 OF 6(9601- )

Click highlighted areas on diagram

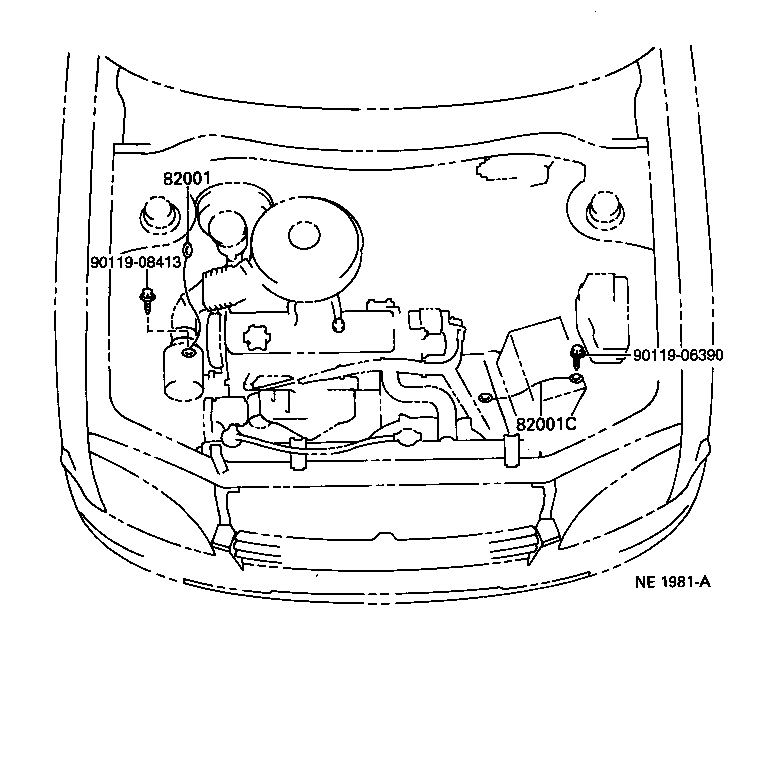

CABLE BOND

diagram 82001 82001C 9011906390 9011908413
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07241

EP9#

 1
82001C - CABLE, BOND, NO.2
90980-07318

EP9#

 1
Common parts
90119-06390
90119-08413
