EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )3D

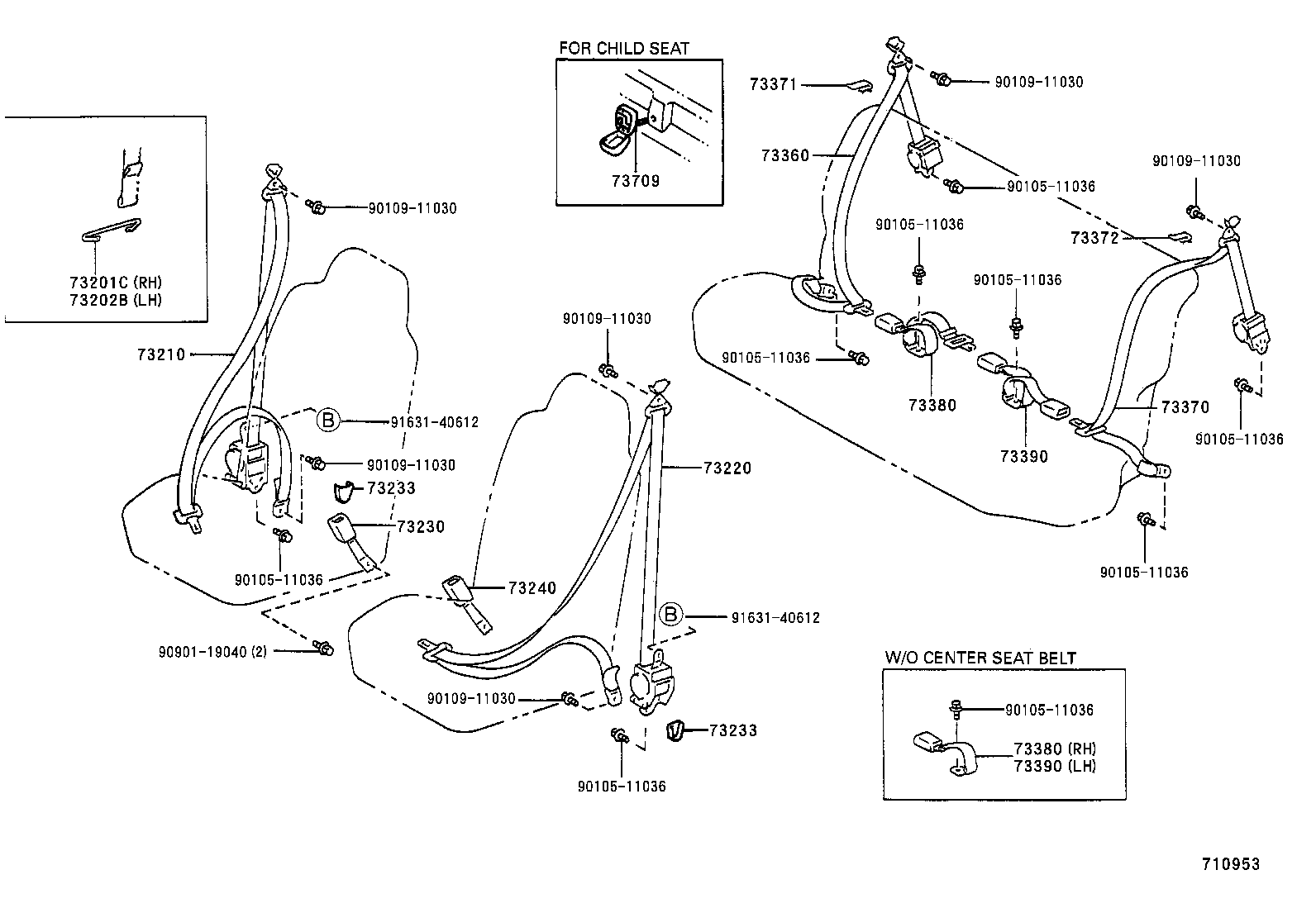

Click highlighted areas on diagram

diagram 73201C 73202B 73210 73220 73230 73233 73233 73240 73360 73370 73371 73372 73380 73380 73390 73390 73709 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911030 9010911030 9010911030 9010911030 9010911030 9010911030 9090119040 9163140612 9163140612
Part # Description Qty Price
73201C - BAR SUB-ASSY, FRONT SEAT BELT, OUTER RH
73201-10020

EP9#..RHD..3D

 1
73201-10020

EP91..3D

 1
73202B - BAR SUB-ASSY, FRONT SEAT BELT, OUTER LH
73202-10020

EP9#..RHD..3D

 1
73202-10020

EP91..3D

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-10620B1

EP91..3D

BLUISH GRAY,TRIM1#

 1
73210-10800B1

EP91..3D

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-10670B1

EP91..3D

W(*80,PASSENGER SIDE),BLUISH GRAY,TRIM1#

 1
73220-10560B0

EP91..3D

BLUISH GRAY,TRIM1#

 1
73220-10660B1

EP91..3D

BLUISH GRAY,TRIM1#

 1
73220-10671B1

EP91..3D

W(*80,PASSENGER SIDE),BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-10400B0

EP91

BLUISH GRAY,TRIM1#

 1
73230-10400B1

EP91

SHADOW GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-10400B0

EP91

BLUISH GRAY,TRIM1#

 1
73230-10400B1

EP91

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-10270B1

EP91

BLUISH GRAY,TRIM1#

 1
73360-10271B2

EP9#..RHD

BLUISH GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-10201B2

EP9#..RHD

BLUISH GRAY,TRIM1#

 1
73370-10200B1

EP91

BLUISH GRAY,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-16050B3

EP9#..3D

BLUISH GRAY,TRIM1#

 1
73371-16050B1

EP9#..3D

SHADOW GRAY,TRIM1#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-16050B3

EP9#..3D

BLUISH GRAY,TRIM1#

 1
73371-16050B1

EP9#..3D

SHADOW GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-10060B1

EP91

BLUISH GRAY,TRIM1#

 1
73470-10060B0

EP91

BLUISH GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-10060B1

EP91

BLUISH GRAY,TRIM1#

 1
73470-10060B0

EP91

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-10100B0

EP91

BLUISH GRAY,TRIM1#

 1
73480-10100B1

EP91

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-10100B0

EP91

BLUISH GRAY,TRIM1#

 1
73480-10100B1

EP91

BLUISH GRAY,TRIM1#

 1
73709 - BRACKET SUB-ASSY, TETHER ANCHOR
73708-33010

EP91

 1
Common parts
90105-11036
90109-11030
90901-19040
91631-40612
