EP91R-AGMNKQ (1996)
Toyota Starlet

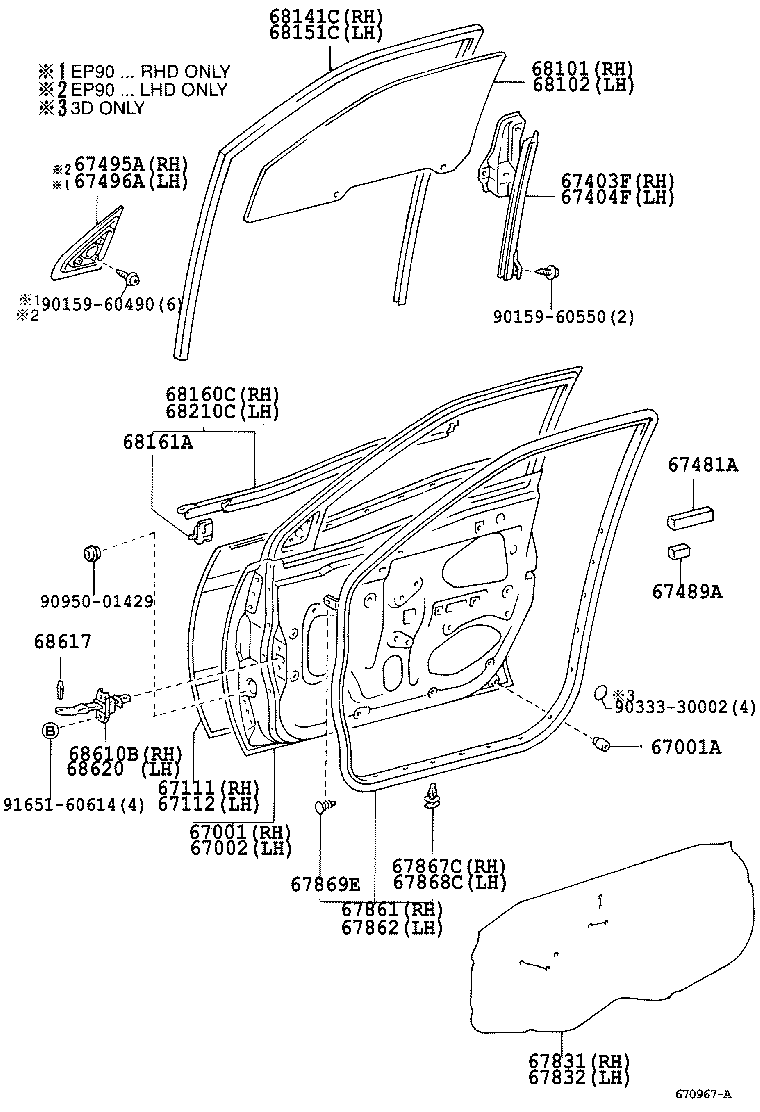

ILLUST NO. 2 OF 3(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-10620 |
EP9#..3D |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
EP9#..3D |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-10620 |
EP9#..3D |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-10330 |
EP9#..3D |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-10330 |
EP9#..3D |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-10100 |
EP9#..3D |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-10100 |
EP9#..3D |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-10060 |
EP9# |
2 | ||
| 67489A - SEAL, FRONT DOOR FRONT LOWER FRAME COVER | ||||
| 67489-10020 |
EP9# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-10160 |
EP9#..3D |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-10160 |
EP9#..3D |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-10210 |
EP9#..3D |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-10210 |
EP9#..3D |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
EP9#..3D |
18 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
EP9#..3D |
18 | ||
| 67867-12150 |
EP9# |
18 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-22010 |
EP9#..3D |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-10330 |
EP9#..3D..(3FC,5F) *TT,T=3.5,GREEN,W(POWER WINDOW) |
1 | ||
| 68111-10320 |
EP9#..3D *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-10340 |
EP9#..3D..(3FC,5F) *TT,T=3.5,GREEN,W(POWER WINDOW) |
1 | ||
| 68112-10370 |
EP9#..3D *TT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-10200 |
EP9#..3D |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-10050 |
EP9#..3D |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-10170 |
EP9#..3D..(3FC,5F) W(POWER WINDOW) |
1 | ||
| 68160-10200 |
EP9#..3D..(3FC,5F) CHROME PLATED |
1 | ||
| 68160-10210 |
EP9#..3D..(3FC,5F) W(POWER WINDOW);CHROME PLATED |
1 | ||
| 68160-10150 |
EP9#..3D |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68212-16030 |
EP9#..3D |
14 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-10180 |
EP9#..3D..(3FC,5F) CHROME PLATED |
1 | ||
| 68210-10150 |
EP9#..3D..(3FC,5F) W(POWER WINDOW) |
1 | ||
| 68210-10130 |
EP9#..3D |
1 | ||
| 68210-10190 |
EP9#..3D..(3FC,5F) W(POWER WINDOW);CHROME PLATED |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-10070 |
EP9# |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-12030 |
EP9# |
2 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-10070 |
EP9# |
1 | ||
| Common parts | ||||
| 90159-60490 | ||||
| 90159-60550 | ||||
| 90333-30002 | ||||
| 90950-01429 | ||||
| 91651-60614 | ||||
ILLUST NO. 3 OF 3(9601- )
| Part # | Description | Qty | Price |
|---|

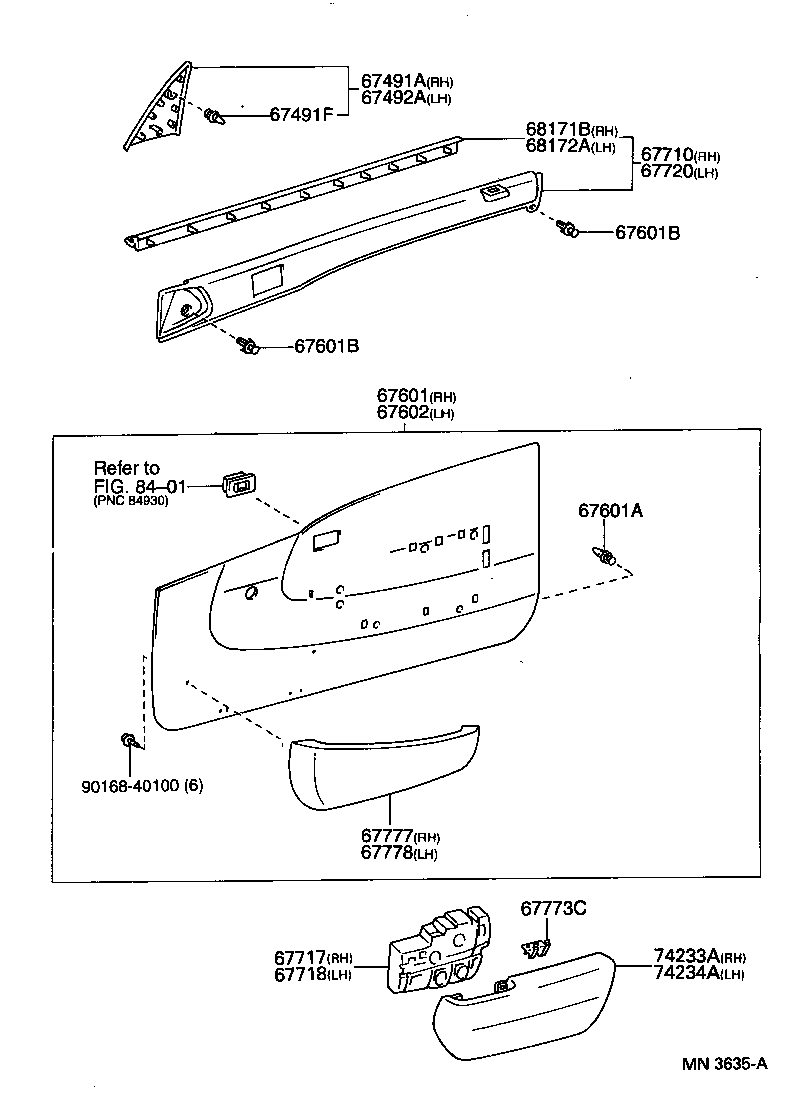

ILLUST NO. 1 OF 3(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-10160 |
EP91 |
1 | ||
| 67491-10150 |
EP91 W(HIGH MOUNT STOP LANP & SPEAKER) |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 67771-30070 |
EP9# |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-10160 |
EP91 |
1 | ||
| 67492-10150 |
EP91 W(HIGH MOUNT STOP LANP & SPEAKER) |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1M540B0 |
EP9#..3D..(3FC,5F) W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67650-1M490B0 |
EP9#..3D..(3FC,5F) W(POWER DOOR LOCK),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67650-1M500B0 |
EP9#..3D..(3FC,5F) W(POWER WINDOW),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67650-1M550B0 |
EP9#..3D..(3FC,5F) W(FULL FABRIC SEAT & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67650-1M560B0 |
EP9#..3D..(3FC,5F) W(FULL FABRIC SEAT & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67650-1M480B0 |
EP9#..3D..(3FC,5F) LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67610-1P140B0 |
EP9#..3D..(3FC,5F) FABRIC TYPE B & W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67610-1P090B0 |
EP9#..3D..(3FC,5F) FABRIC TYPE A & W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67610-1P120B0 |
EP9#..3D..(3FC,5F) FABRIC TYPE B & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67610-1P070B0 |
EP9#..3D..(3FC,5F) FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67610-1P130B0 |
EP9#..3D..(3FC,5F) FABRIC TYPE B & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67610-1P080B0 |
EP9#..3D..(3FC,5F) FABRIC TYPE A & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67610-1P390B0 |
EP9#..3D..(3FC,5F) W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW),BLUISH GRAY,TRIM1# |
1 | ||
| 67610-1P370B0 |
EP9#..3D..(3FC,5F) W(LARGE DOOR POCKET),BLUISH GRAY,TRIM1# |
1 | ||
| 67610-1P380B0 |
EP9#..3D..(3FC,5F) W(LARGE DOOR POCKET & POWER DOOR LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-08179 |
EP9# YELLOW |
6 | ||
| 67771-16120 |
EP9#..3D GRAY |
24 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07152B1 |
EP9#..3D BLUISH GRAY,TRIM1# |
4 | ||
| 90467-07152B1 |
EP9# BLUISH GRAY,TRIM1# |
4 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07152B1 |
EP9#..3D BLUISH GRAY,TRIM1# |
4 | ||
| 90467-07152B1 |
EP9# BLUISH GRAY,TRIM1# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67050-10040B0 |
EP9#..3D..(3FC,5F) W(POWER DOOR LOCK),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67050-10090B0 |
EP9#..3D..(3FC,5F) W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67050-10110B0 |
EP9#..3D..(3FC,5F) W(FULL FABRIC SEAT & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67050-10100B0 |
EP9#..3D..(3FC,5F) W(FULL FABRIC SEAT & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67050-10050B0 |
EP9#..3D..(3FC,5F) W(POWER WINDOW),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67050-10030B0 |
EP9#..3D..(3FC,5F) LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67660-10460B0 |
EP9#..3D..(3FC,5F) FABRIC TYPE B & W(LARGE DOOR POCKET & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67660-10450B0 |
EP9#..3D..(3FC,5F) FABRIC TYPE B & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67660-10390B0 |
EP9#..3D..(3FC,5F) FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67660-10710B0 |
EP9#..3D..(3FC,5F) W(LARGE DOOR POCKET &POWER WINDOW),BLUISH GRAY,TRIM1# |
1 | ||
| 67660-10400B0 |
EP9#..3D..(3FC,5F) FABRIC TYPE A & W(LARGE DOOR POCKET & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67660-10700B0 |
EP9#..3D..(3FC,5F) W(LARGE DOOR POCKET),BLUISH GRAY,TRIM1# |
1 | ||
| 67710 - PANEL ASSY, FRONT DOOR TRIM, UPPER RH | ||||
| 67710-10030B0 |
EP9#..3D BLUISH GRAY,TRIM1# |
1 | ||
| 67717 - PAD, FRONT DOOR TRIM, CENTER RH | ||||
| 67717-10030 |
EP9#..3D |
1 | ||
| 67718 - PAD, FRONT DOOR TRIM, CENTER LH | ||||
| 67718-10010 |
EP9#..3D |
1 | ||
| 67720 - PANEL ASSY, FRONT DOOR TRIM, UPPER LH | ||||
| 67720-10030B0 |
EP9#..3D BLUISH GRAY,TRIM1# |
1 | ||
| 67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 67773-20030 |
EP9#..3FC,5F |
2 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-10060B1 |
EP9#..RHD;EP90..LHD..(3FC,5F) LT.BLUISH GRAY,TRIM10 |
1 | ||
| 67777-10060B1 |
EP9#..RHD;EP90..LHD..(3FC,5F) LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67777-10060B0 |
EP9#..3FC,5F BLUISH GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-10060B1 |
EP9#..3FC,5F;EP90..LHD..4F LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67778-10060B0 |
EP9#..3FC,5F BLUISH GRAY,TRIM1# |
1 | ||
| 67778-10060B1 |
EP9#..3FC,5F;EP90..LHD..4F LT.BLUISH GRAY,TRIM10 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-10130 |
EP9#..3D |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-10110 |
EP9#..3D |
1 | ||
| 74233A - PANEL, FRONT DOOR ARMREST BASE, LOWER RH | ||||
| 74233-10010B1 |
EP9#..3D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74233-10020B1 |
EP91..3D W(POWER WINDOW = DOWN AUTO),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74233-10010B0 |
EP9#..3D..(3FC,5F) BLUISH GRAY,TRIM1# |
1 | ||
| 74233-10020B0 |
EP91..3D W(POWER WINDOW = DOWN AUTO),BLUISH GRAY,TRIM1# |
1 | ||
| 74234A - PANEL, FRONT DOOR ARMREST BASE, LOWER LH | ||||
| 74234-10020B1 |
EP91..3D W(POWER WINDOW = DOWN AUTO),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74234-10010B1 |
EP9#..3D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74234-10010B0 |
EP9#..3D..(3FC,5F) BLUISH GRAY,TRIM1# |
1 | ||
| 74234-10020B0 |
EP91..3D W(POWER WINDOW = DOWN AUTO),BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90168-40100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
